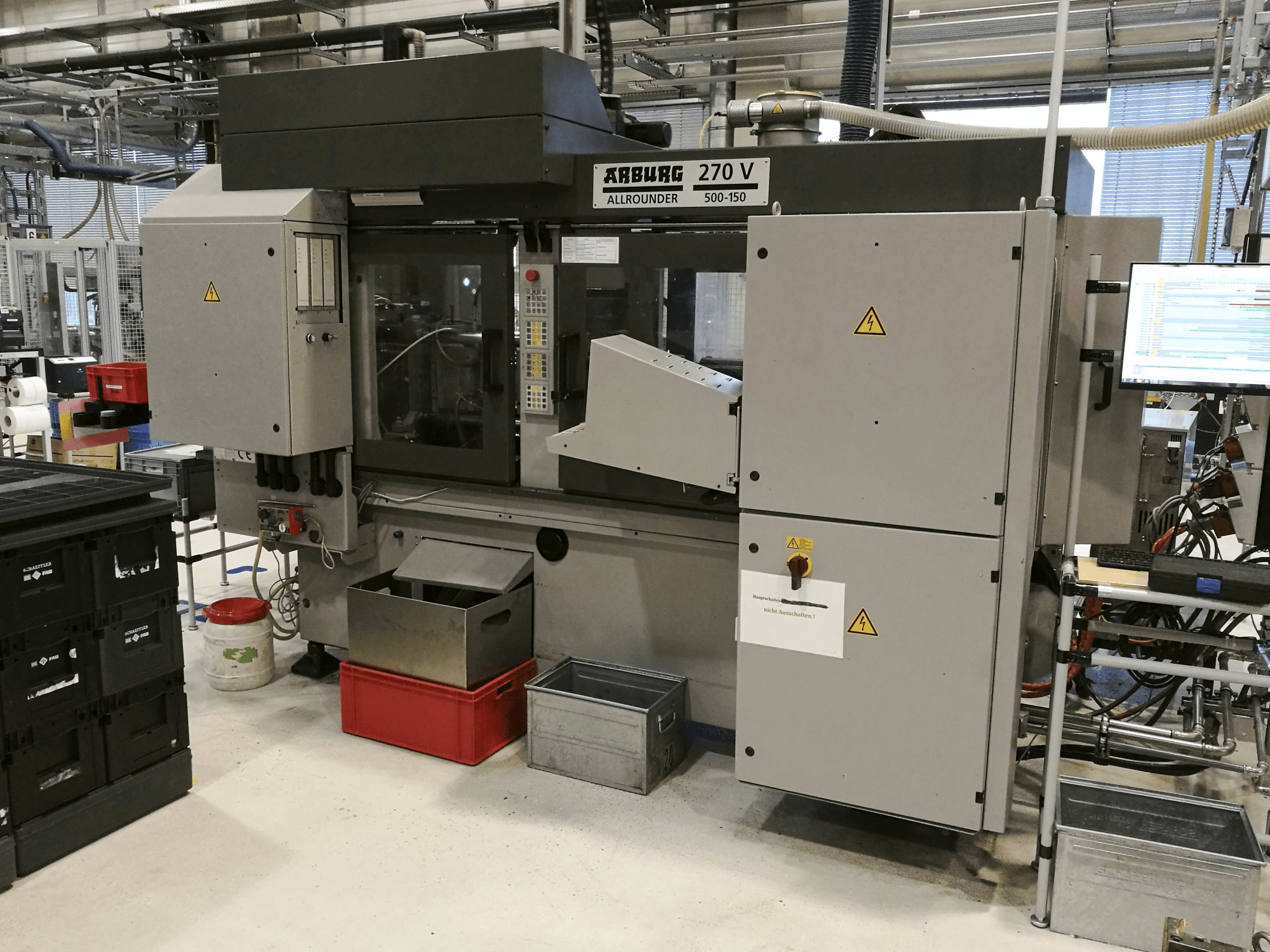

Arburg 270V 500-150 Injection Moulding Machine

Show in original language

This Arburg 270V 500-150 Injection Moulding Machine was built in 1997 in Germany and has been active for 106863 production hours. With an Arburg control unit, the machine also includes hydraulic drive and stands in excellent conditions. Main material handled with this machine is plastic.

Overview

brand: Arburg
year: 1997
MODEL: 270V 500-150
production hours: 106863
application type: Injection Moulding
Location: Germany
machine type: Vertical Injection Moulding Machine
availability: Sold
control unit brand: ARBURG

Technical Information - Arburg 270V 500-150

General Data

Measurements width: 3615 mm
Measurements depth: 2085 mm
Measurements height: 1990 mm
Machine weight: 2250 kg
Automatic cycles: 13520148
Type of drive: Hydraulic
Closure: Hydraulic

Control Unit

Brand: ARBURG

Injection Unit

Heating capacity: 4 x 1.2 kW
Adjustable heating zones: 4
Nozzle pressure: 60 kN

Clamping unit

Clamping force: 500 kN
Opening stroke: 350 mm
Max open daylight: 550 mm
Distance between bars: 320 mm
Size of mold platens: 405 mm
Ejector stroke: 125 mm
Ejector force for / back: 30 kN

Media

Main electronic connection: 400 V / 50 Hz / 3 P
Power consumption: 24.7 kVA
Oil tank: 160 L

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
