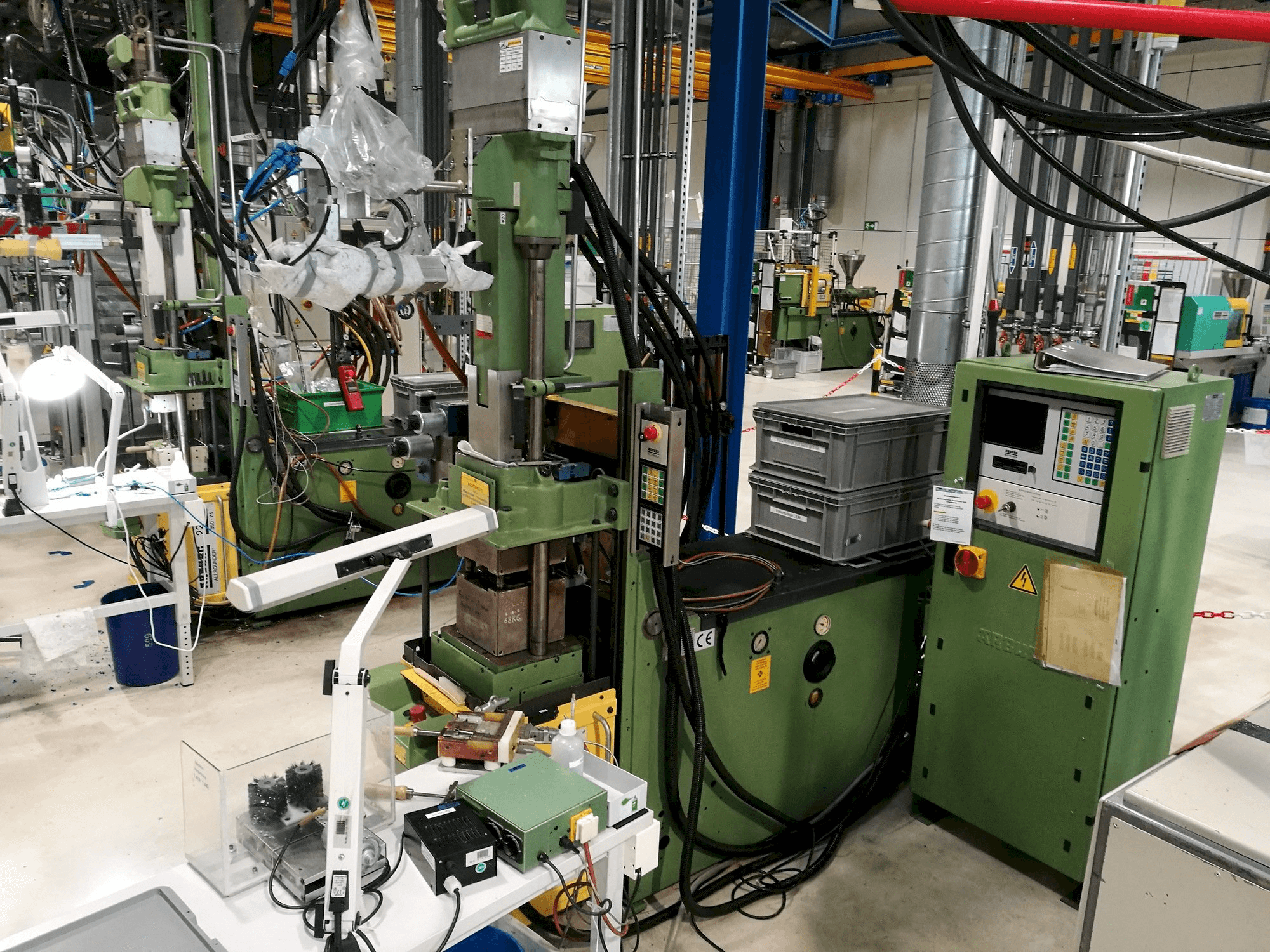

Arburg 221M-350-75U Injection Moulding Machine

Show in original language

This Arburg 221M-350-75U Injection Moulding Machine was manufactured in 1995 in Germany and has been working for 43075 hours. Equipped with an Arburg Multronica Control unit, this machine incorporates a clamping force of 350 kN and an injection pressure of 1090 bar.

Overview

brand: Arburg
year: 1995
MODEL: 221M-350-75U
production hours: 43075
application type: Injection Moulding
Location: Germany
machine type: Hydraulic Injection Moulding Machine
availability: Sold
control unit brand: ARBURG

Technical Information - Arburg 221M-350-75U

General Data

Measurements width: 2980 MM
Measurements depth: 1040 MM
Measurements height: 1500 MM
Machine weight: 1300 kg

Control Unit

Model: Multitronica
Brand: ARBURG

Injection Unit

Screw diameter: 30 mm
Shot weight: 59 g/PS
Stroke volume: 70 CM³
Injection pressure: 1090 BAR
Heating capacity: 6 kW

Clamping unit

Clamping force: 350 kN
Opening stroke: 200 mm
Distance between bars: 221 mm
Mould height max: 75 mm
Size of mold platens: 432x250 mm
Ejector stroke: 60 mm
Ejector force for / back: 70 kN

Media

Main electronic connection: 400 V
Power consumption: 13.5 kVA

Additional equipment

- Dosing unit

Additional Information

Machine history

Material type: Silicon

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
