➤ Used AMADA Vipros 255 CNC Punch Press For Sale

Show in original language

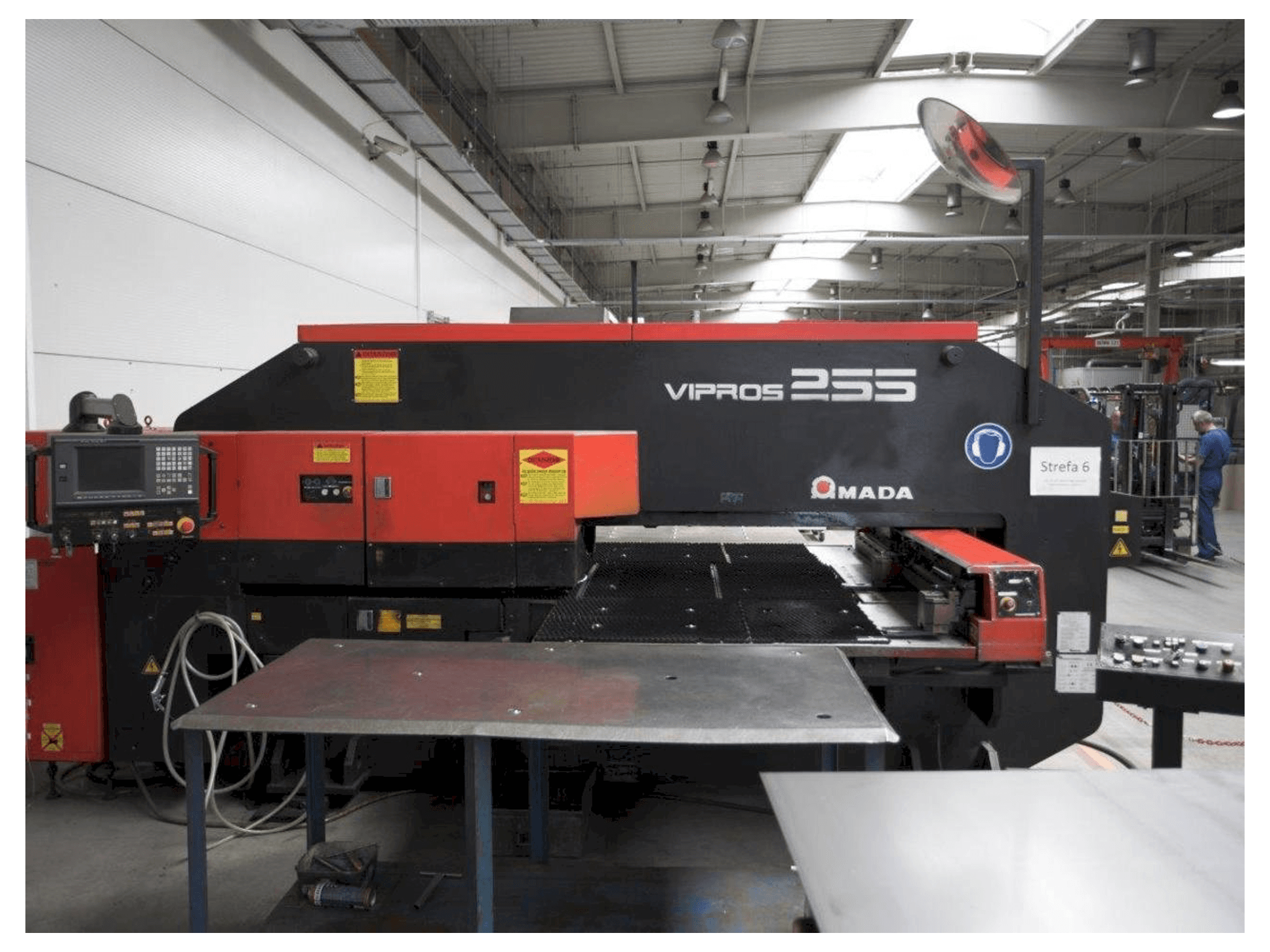

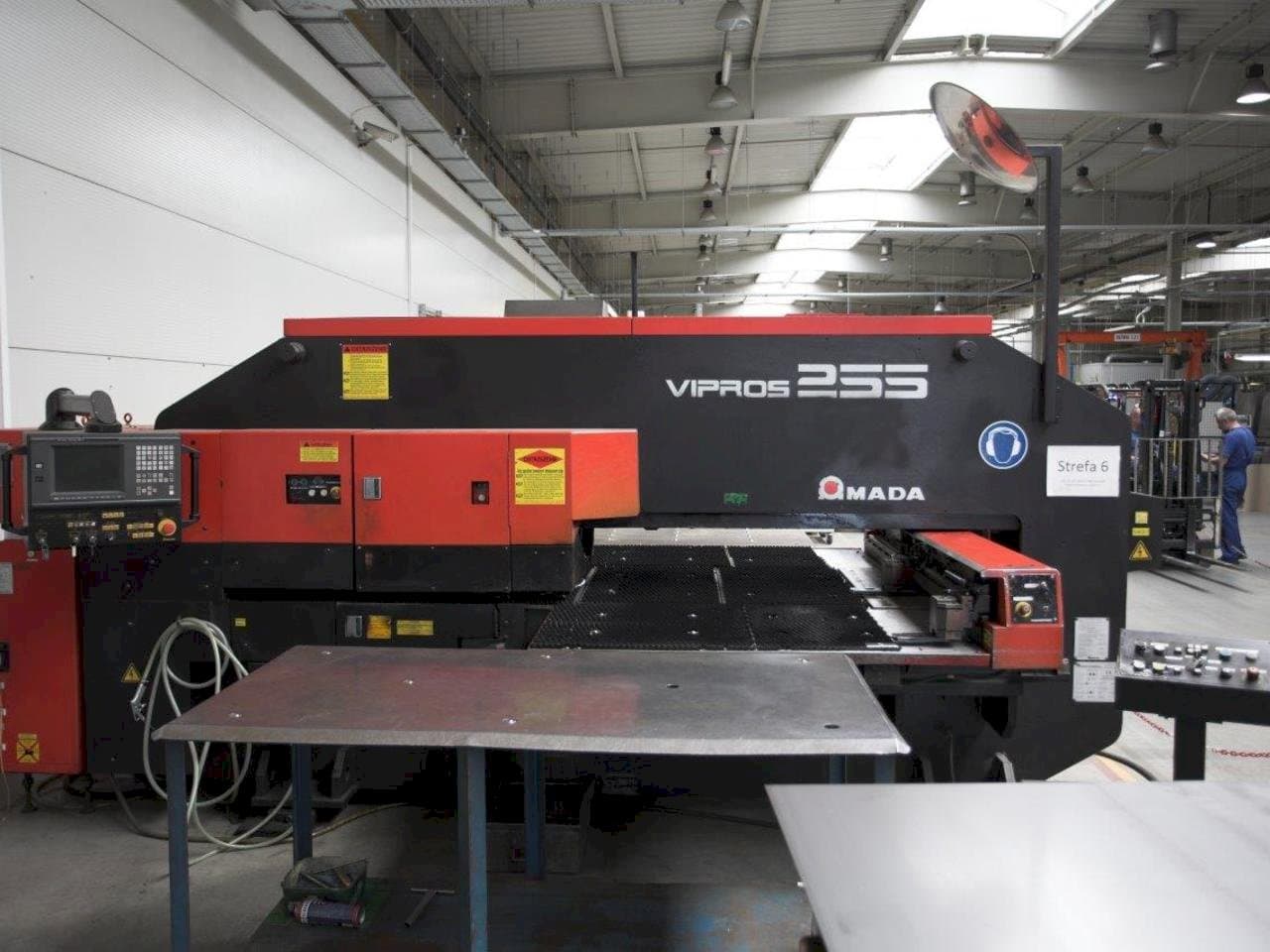

This AMADA Vipros 255 Punching Machine was built in the year 1999 in France. It is equipped with a Fanuc Series 18-P control unit. This machine can perform with a punching force of 200 kN.

Overview

brand: AMADA
year: 1999
MODEL: Vipros 255
application type: Punching
Location: Poland
machine type: CNC Punch Press
availability: Sold
control unit brand: FANUC

Technical Information - AMADA Vipros 255

General Data

Measurements width: 5030 mm
Measurements depth: 2630 mm
Measurements height: 2160 mm
Machine weight: 9200 kg

Control Unit

Model: Series 18-P
Brand: FANUC

Main drive

Punching force: 200 kN
Maximum sheet thickness: 6,4 mm

Table

Outer length: 2540 mm
Outer width: 1270 mm
Table load: 100 kg

Media

Power consumption: 25 kVA

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Number of turret stations (pcs): 31
- - Simultaneous positioning speed (x / y): 89 m/min
- - Number of index tool stations, max: 3
- - Tool rotation, max: 35 r/min
- - Punch diameter max: 88,9 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
