AMADA - LC 1212 α2LU-LAS-AMA-1995-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery

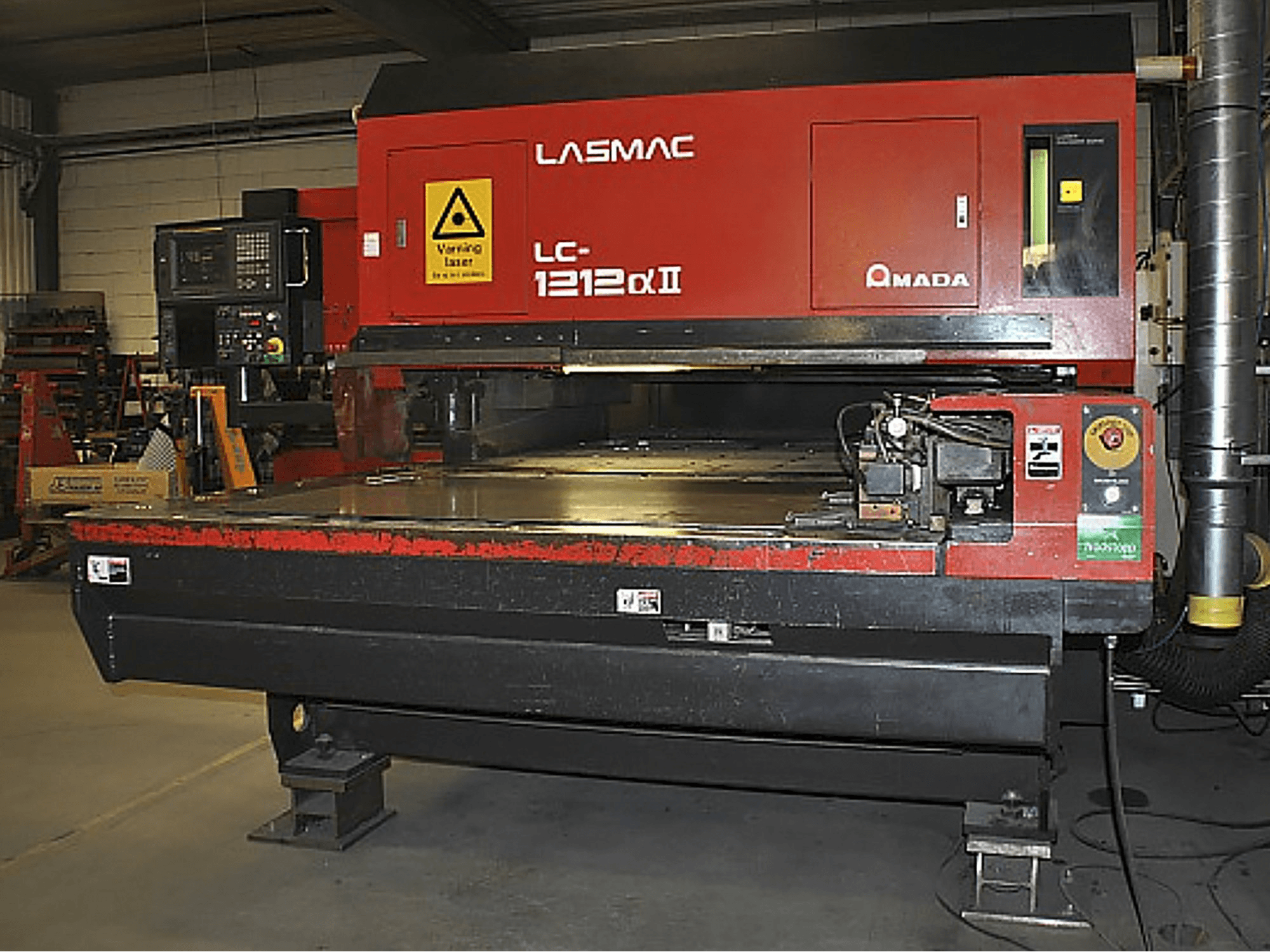

AMADA LC 1212 α2 Laser Cutting Machine

Show in original language

This AMADA LC 1212 α2 Laser Cutting Machine was manufactured in 1995 and has a working record of 21337 working hours ever since, and is operated through a FANUC 16-L control unit. The model ensures a clean cut, and is especially designed for high-volume and short-run production of parts. Additionally, because its sheet loader offers several parts to be unloaded at once, unattended operation is allowed.

Overview

brand: AMADA
year: 1995
MODEL: LC 1212 α2
production hours: 21337
application type: Cutting
Location: Luxembourg
machine type: CO2 Laser Cutting Machine
availability: Sold
control unit brand: FANUC

Technical Information - AMADA LC 1212 α2

General Data

Measurements width: 2230 mm
Measurements depth: 3120 mm
Measurements height: 2275 mm
Machine weight: 5800 kg

Control Unit

Brand: FANUC
Model: 16-L

Main drive

Laserpower: 1.5 kW
Laser type: Co2
Laser brand: Fanuc

Movement

X-AXIS Movement: 1270 mm
X-AXIS Working Feed: 40 m/min
Y-AXIS Movement: 1270 mm
Y-AXIS Working Feed: 40 m/min
Z-AXIS Movement: 300 mm
Z-AXIS Working Feed: 20 m/min

Workpiece

Workpiece weight: 210 kg

Max Material thickness

Steel: 9 mm
Stainless steel: 9 mm
Aluminum: 3 mm

Media

Main electronic connection: 400 V / 50 Hz
Power consumption: 33 kVA

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
