AMADA - FO-3015SI-LAS-AMA-2004-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery

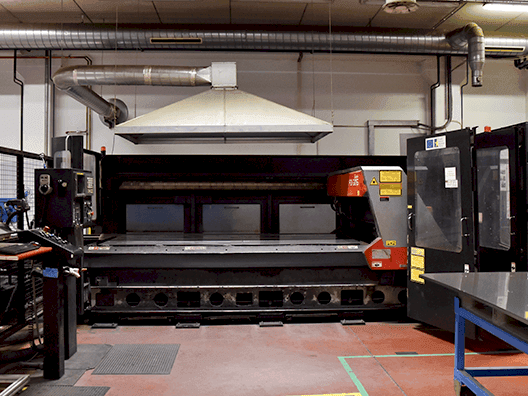

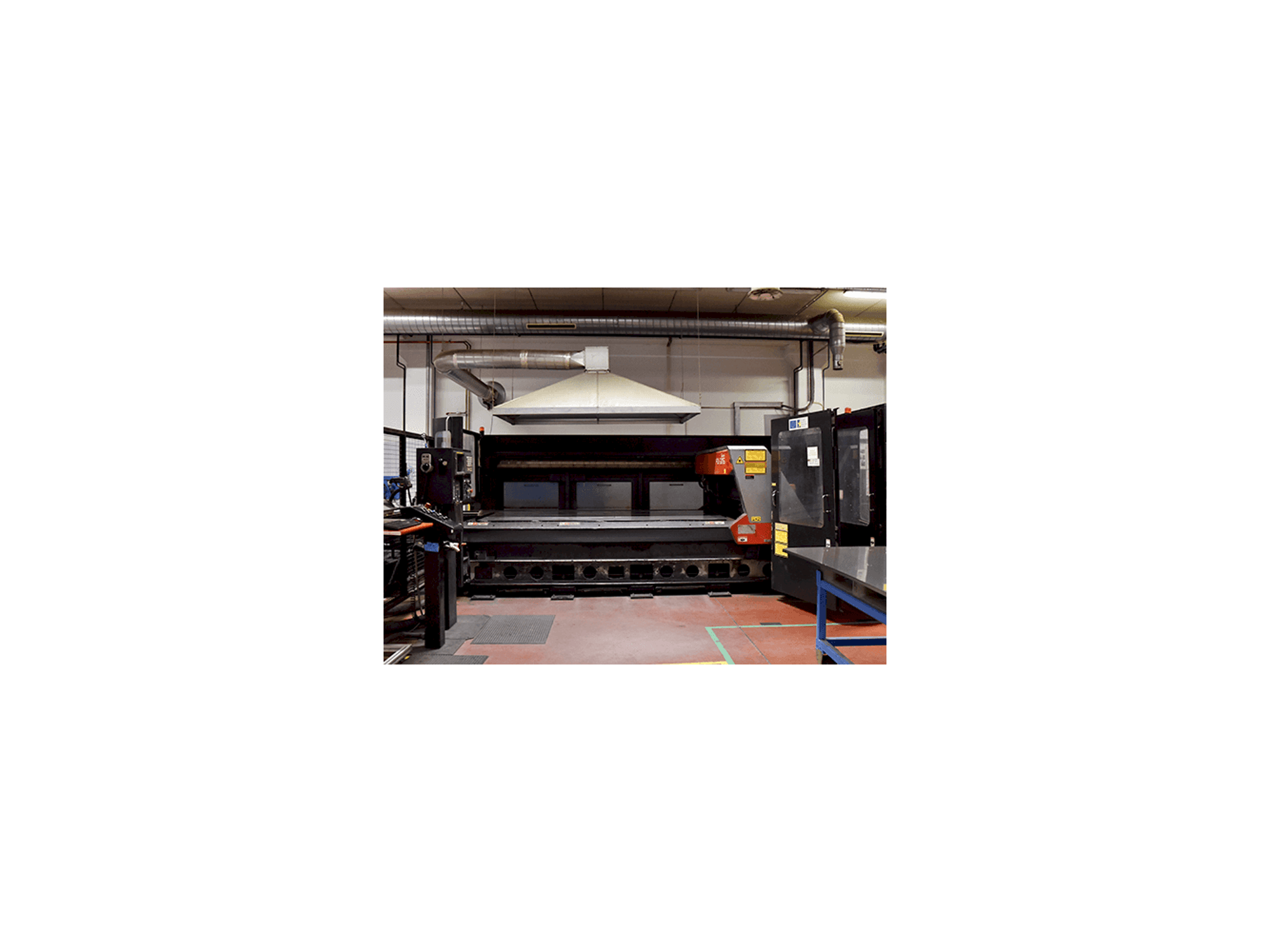

Amada FO-3015 Laser cutting machine

Show in original language

This Amada FO-3015 Laser cutting machine was made in the year 2004 and has 3267 working hours. It is equipped with a FANUC FS-160 control unit. The machine has laser power of 4,0 kW.

Overview

brand: AMADA
year: 2004
MODEL: FO-3015
production hours: 3267
application type: Cutting
Location: Slovenia
machine type: CO2 Laser Cutting Machine
availability: Sold
control unit brand: FANUC

Technical Information - AMADA FO-3015

General Data

Measurements width: 2343 mm
Measurements depth: 6063 mm
Measurements height: 2720 mm
Machine weight: 12000 kg

Control Unit

Model: FS-160
Brand: FANUC

Main drive

Laserpower: 4,0 kW

Movement

X-AXIS Movement: 3070 mm
Y-AXIS Movement: 1550 mm
Z-AXIS Movement: 200 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Laser principle: flying optic
- - Cutting speed: 0 - 80 m per minute
- - Positioning speed (y-axis): 80 m per minute
- - Laser type: co2-laser
- - Positioning speed (x-axis): 80 m per minute
- - Oscillator type: af 4000
- - Stability: ± 1. 00 %
- - Duty range: 0 ~ 100%
- - Beam divergence: < 2 mm x mrad
- - Laser source: ac hf excited, fast-flowing
Qualitative Machine Benefits:
- - Pulse frequency: 5 hz
- - Laser wave length: 10. 6 µm
- - Lasergas consumption: 10 l per hour

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
