➤ Used AMADA APELIO II-357 | Laser Punch Combination

Show in original language

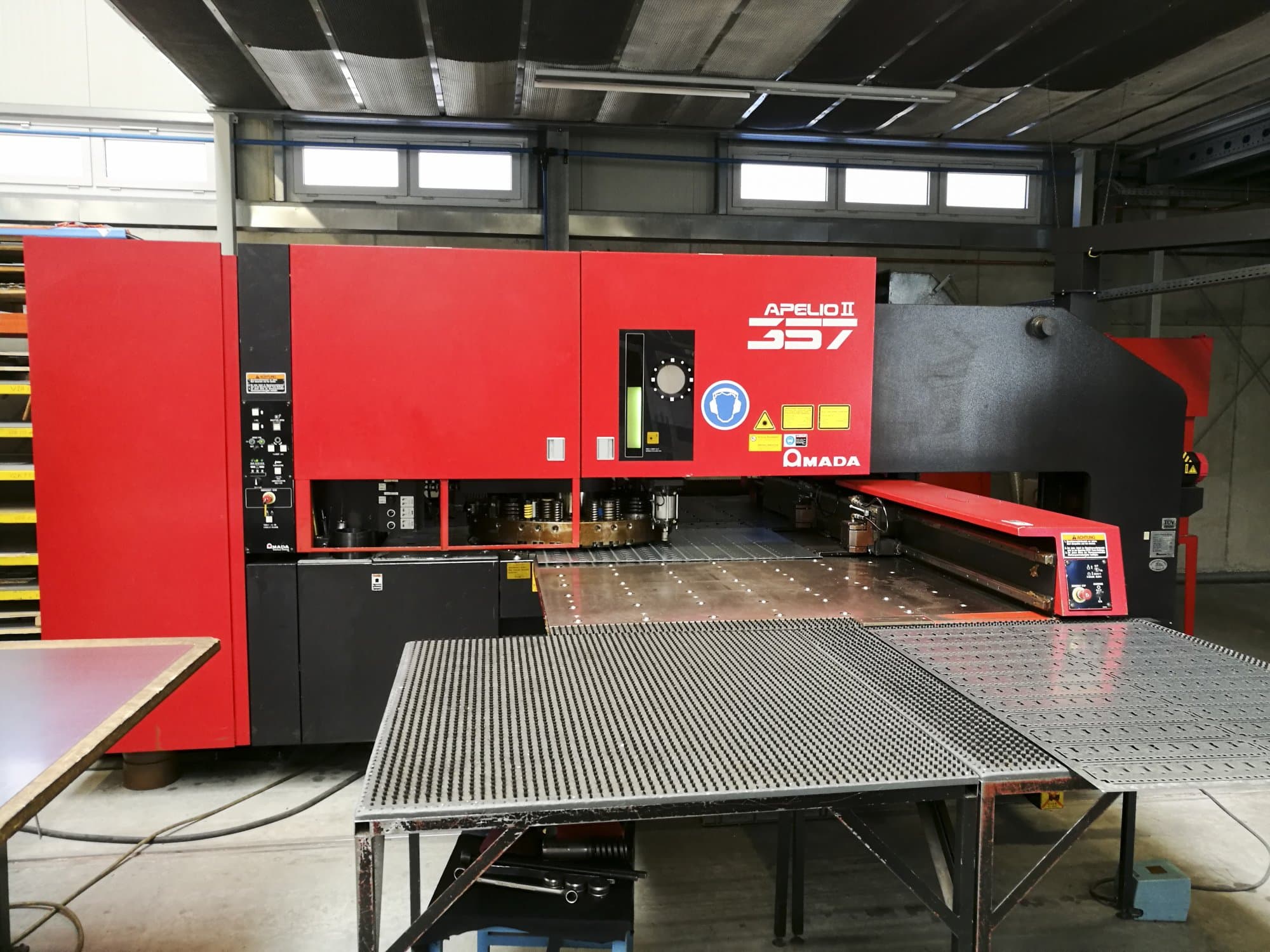

This AMADA APELIO II-357 Laser Punch Combination Machine from 1995 has a working record of 35942 production hours. Operated through an AMADA AMADAN 05PL-A with Ethernet Interface Control unit, the machines comes with extra tables for loading metal sheets. In the past, this machine has worked mainly with steel of 3-6 mm in thickness, and produced parts for housings for the Machinery industry. The APELIO II-357 is a versatile model that allows the possibility of punching as well as laser cutting. Additionally, its 2 rotating tools and 58x tool stations make this machine an excellent choice for your machining requirements.

Overview

brand: AMADA
year: 1995
MODEL: APELIO II-357
production hours: 35942
application type: Cutting
Location: Germany
machine type: CO2 Laser Cutting Machine
availability: Sold
control unit brand: FANUC

Technical Information - AMADA APELIO II-357

General Data

Measurements width: 8320 mm
Measurements depth: 4203 mm
Measurements height: 2773 mm
Machine weight: 15000 kg

Control Unit

Model: AMADAN 05PL-A
Interface: Ethernet
Brand: FANUC

Main drive

Laserpower: 1.5 kW
Laser type: Co2
Punching force: 300 kN
Maximum sheet thickness: 6 mm
Laser brand: Fanuc

Movement

X-AXIS Movement: 1830 mm
X-AXIS Working Feed: 50 m/min
X-AXIS Rapid traverse: 50 m/min
Y-AXIS Movement: 1270 mm
Y-AXIS Working Feed: 50 m/min
Y-AXIS Rapid traverse: 50 m/min
Z-AXIS Movement: 300 mm
Z-AXIS Working Feed: 12 m/min
Z-AXIS Rapid traverse: 12 m/min

Workpiece

Workpiece x: 2500 mm
Workpiece y: 1250 mm
Workpiece z: 6 mm

Tools

Number of index: 2
Number of stations: 58
Max tool diameter: 114.3 mm

Max Material thickness

Steel: 6 mm
Stainless steel: 3 mm

Machine specific data

Number of cutting heads: 1

Media

Main electronic connection: 380 V / 50 Hz
Power consumption: 55 kVA
Air pressure: 5.7 bar
CO2 consumption: 50 l/h

Additional equipment

- Loading tables

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
