- AMADA Ensis 3015 AJ Fiber laser cutting machine

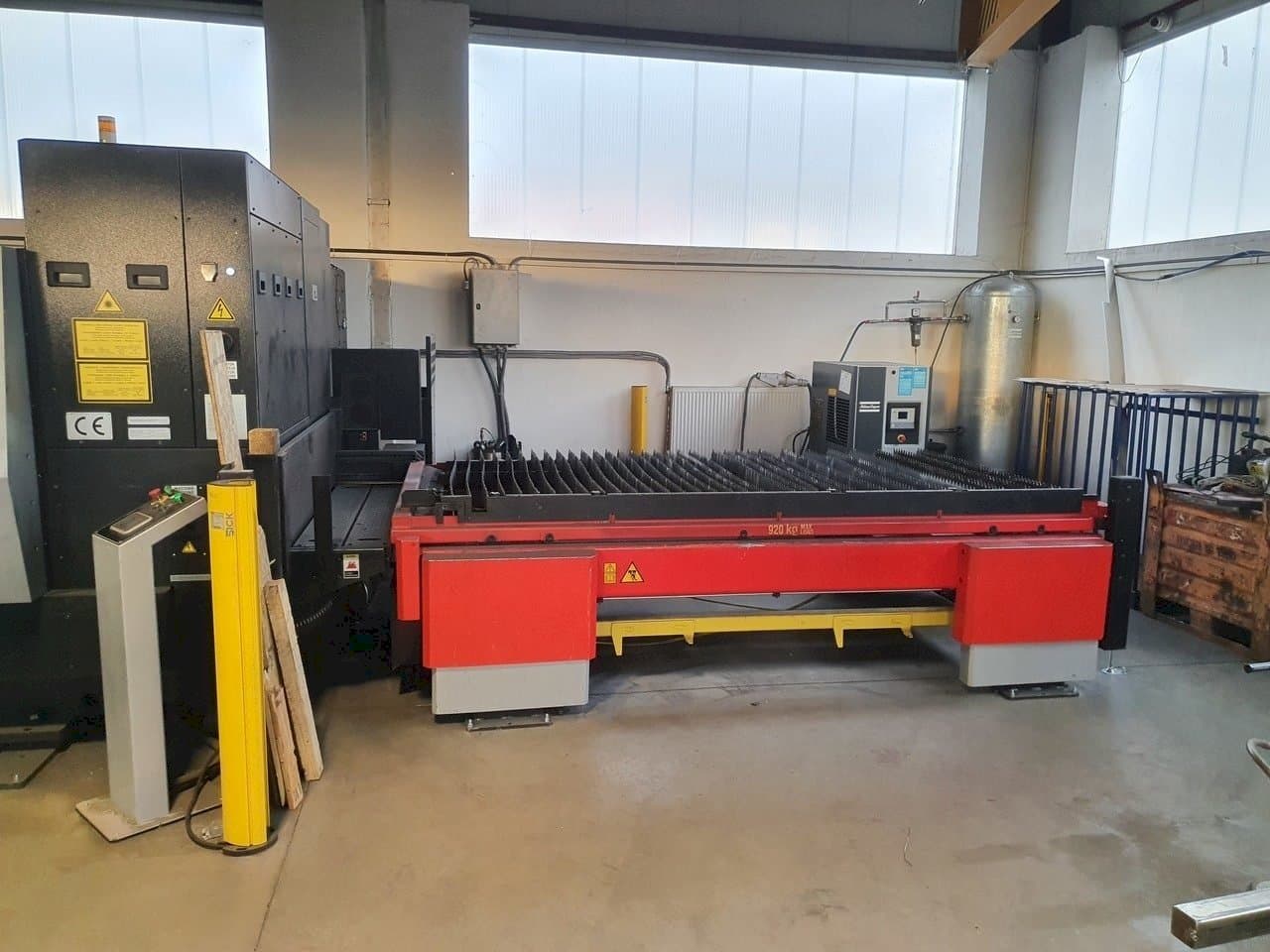

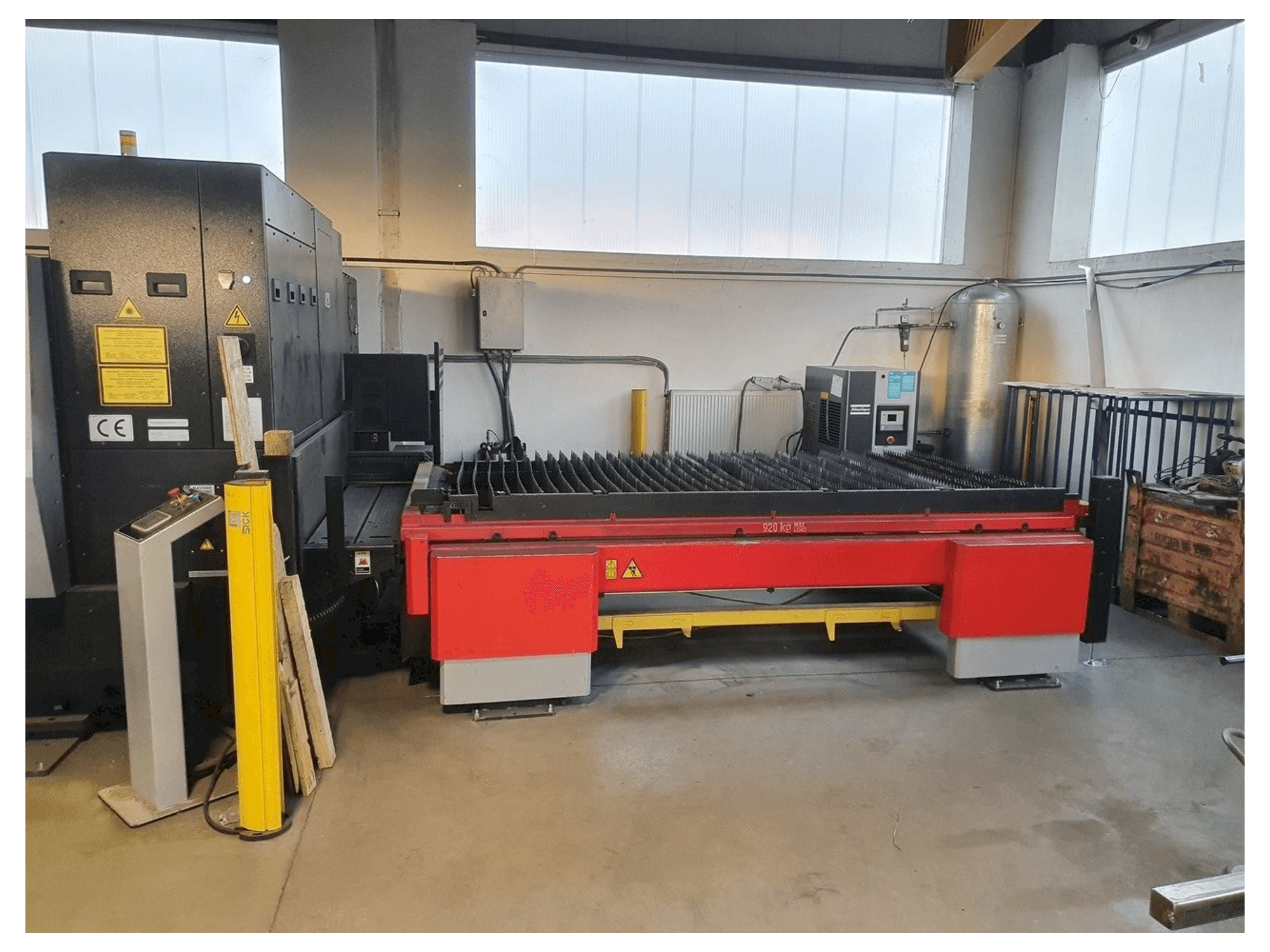

This AMADA Ensis 3015 AJ Fiber laser cutting machine was built in 2018 in Japan and has 2667 hours, of which 1801 are cutting hours. It is equipped with an Amada AMNC 3i control unit. The machine has a laser power of 3 kW and is in very good condition.
Overview
- brand: AMADA
- year: 2018
- MODEL: Ensis 3015 AJ
- production hours: 2667
- application type: Cutting
- Location: Slovakia
- machine type: Fiber Laser Cutting Machine
- availability: Sold
- control unit brand: Amada
Technical Information - AMADA Ensis 3015 AJ
General Data
- Measurements width: 10136 mm
- Measurements depth: 2840 mm
- Measurements height: 2432 mm
- Machine weight: 9100 kg
Control Unit
- Brand: Amada
- Model: AMNC 3i
Main drive
- Laserpower: 3 kw
Movement
- X-AXIS Movement: 3070 mm
- Y-AXIS Movement: 1550 mm
- Z-AXIS Movement: 100 mm
Workpiece
- Workpiece x: 3070 mm
- Workpiece y: 1550 mm
- Workpiece weight: 920 kg
Max Material thickness
- Steel: 25 mm
- Stainless steel: 15 mm
- Aluminum: 12 mm
Additional Information
- Technical Machine Benefits:
- - Laser ensis 3015 aj 3
- - Maximum simultaneous feed rate x/y m/min 170
- - Repeatable positioning accuracy mm ± 0. 01
- - Maximum material mass kg 920
- - Processing surface height mm 940
- - Shuttle table
- Qualitative Machine Benefits:
- - Very good condition
- - Low hours
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
