AMADA Astro II 100NT HDS 1030 Bending Machine

Show in original language

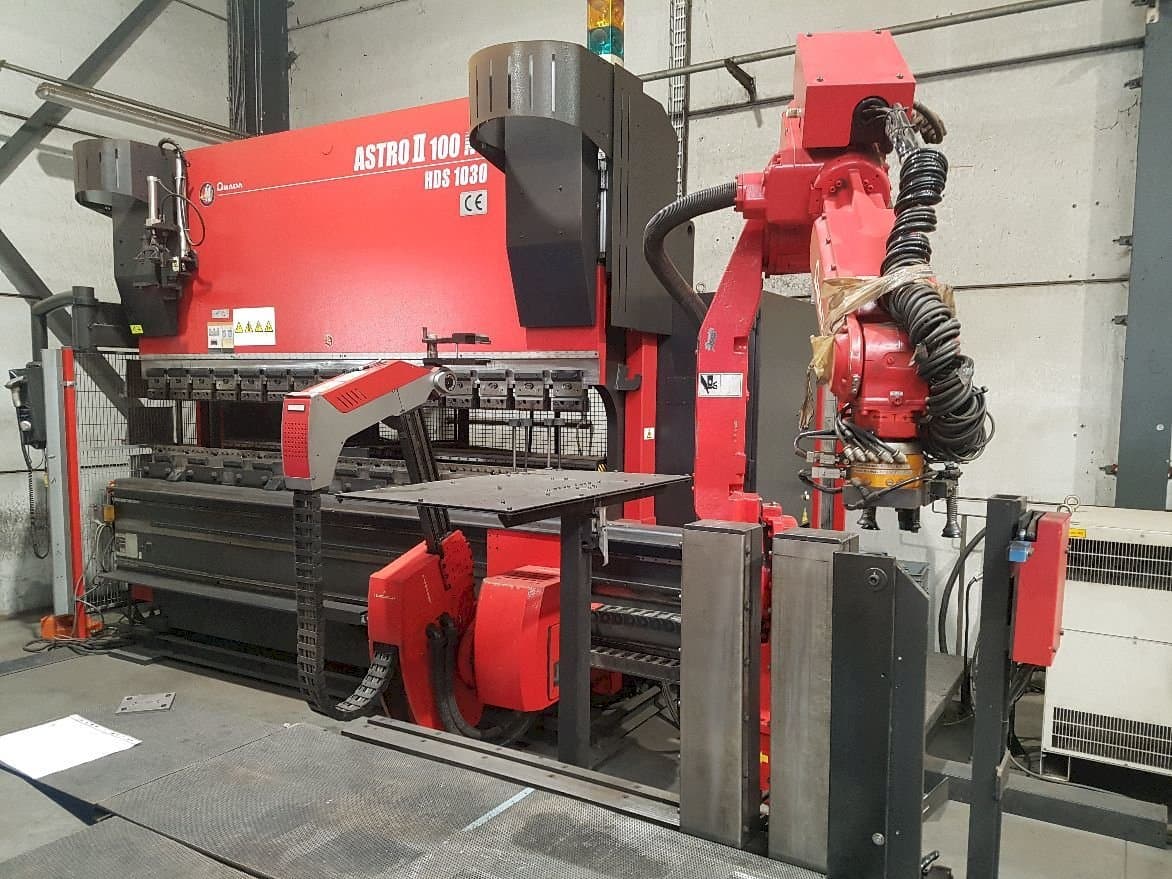

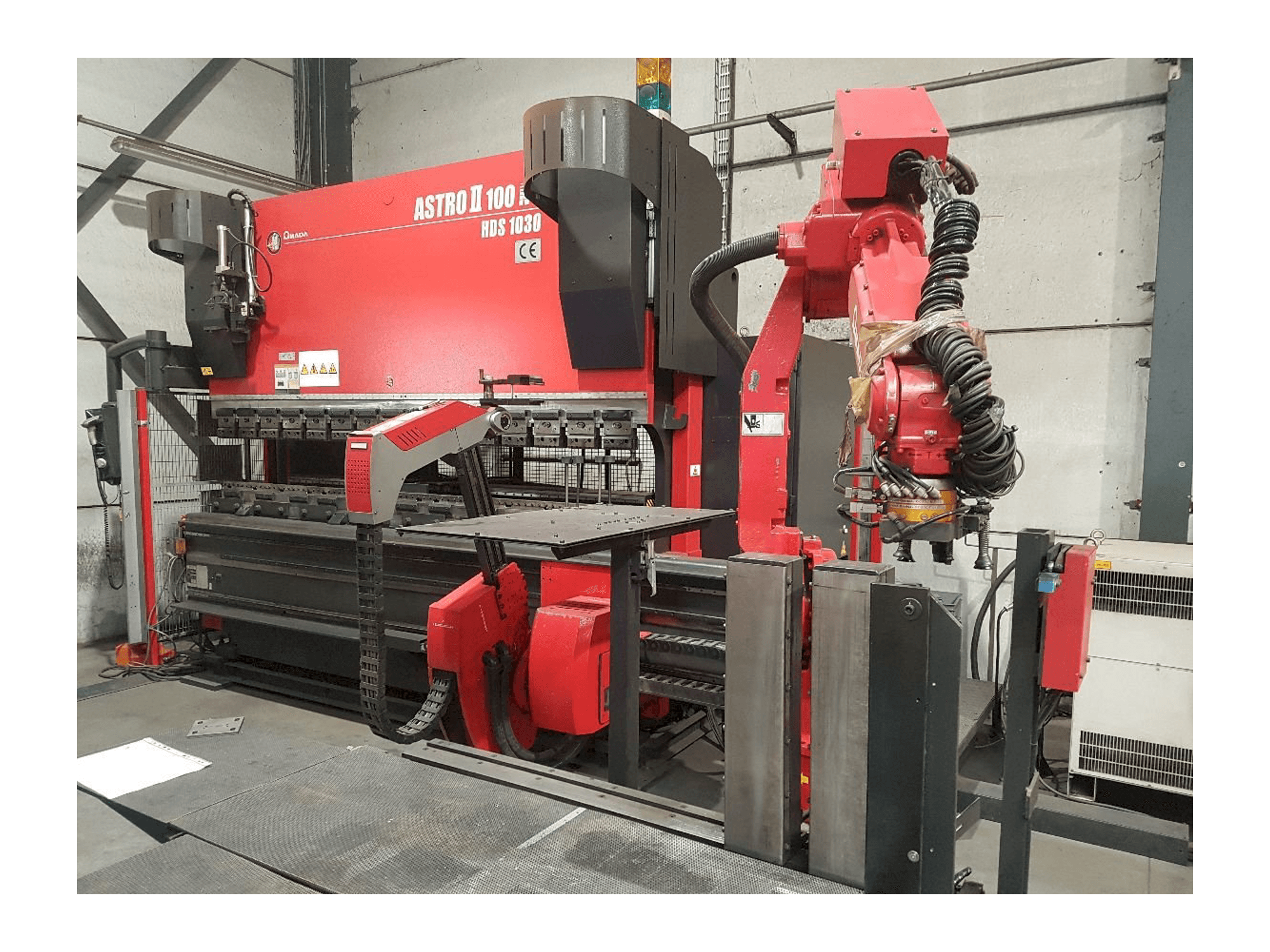

This AMADA Astro II 100NT HDS 1030 Bending Machine was built in 2007 in Japan. It is operated through a AMNC II - AS100CE control unit. This machine can work with a bending length of 3110 mm and a stroke length of 200 mm. It includes a Bending robot ASTRO 100 NT.

Overview

brand: AMADA
year: 2007
MODEL: Astro II 100NT HDS 1030
application type: Bending
Location: Belgium
machine type: Press Brake
availability: Sold

Technical Information - AMADA Astro II 100NT HDS 1030

General Data

Measurements width: 2250 mm
Measurements depth: 4345 mm
Measurements height: 3150 mm
Machine weight: 8700 Kg

Control Unit

Model: II AS100CE

Main drive

Bending length: 3110 mm
Main motor power: 200 V
Stroke: 200 mm
Number of axis: 7

Media

Oil tank: 57.5 L

Additional equipment

- Bending robot ASTRO 100 NT
- Drive AC - servomotor

Additional Information

Machine history

Material thickness: 2. 5 mm

Machine Benefits

Technical Machine Benefits:
- - Beam speed: approach/return 200 mm/sec
- - Beam speed: max bending 200 mm/ sec
- - Adjustable back gauge 600 mm
- - Distance between uprights 2700 mm
- - Open height 500 mm
- - Throat depth 415 mm
- - Max payload incl. Gripper 20 kg
- - Length of linear axes 3. 080 mm
- - Max. Part size 800 x 1000 mm
- - Max cutting size as profile 300 x 1800 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
