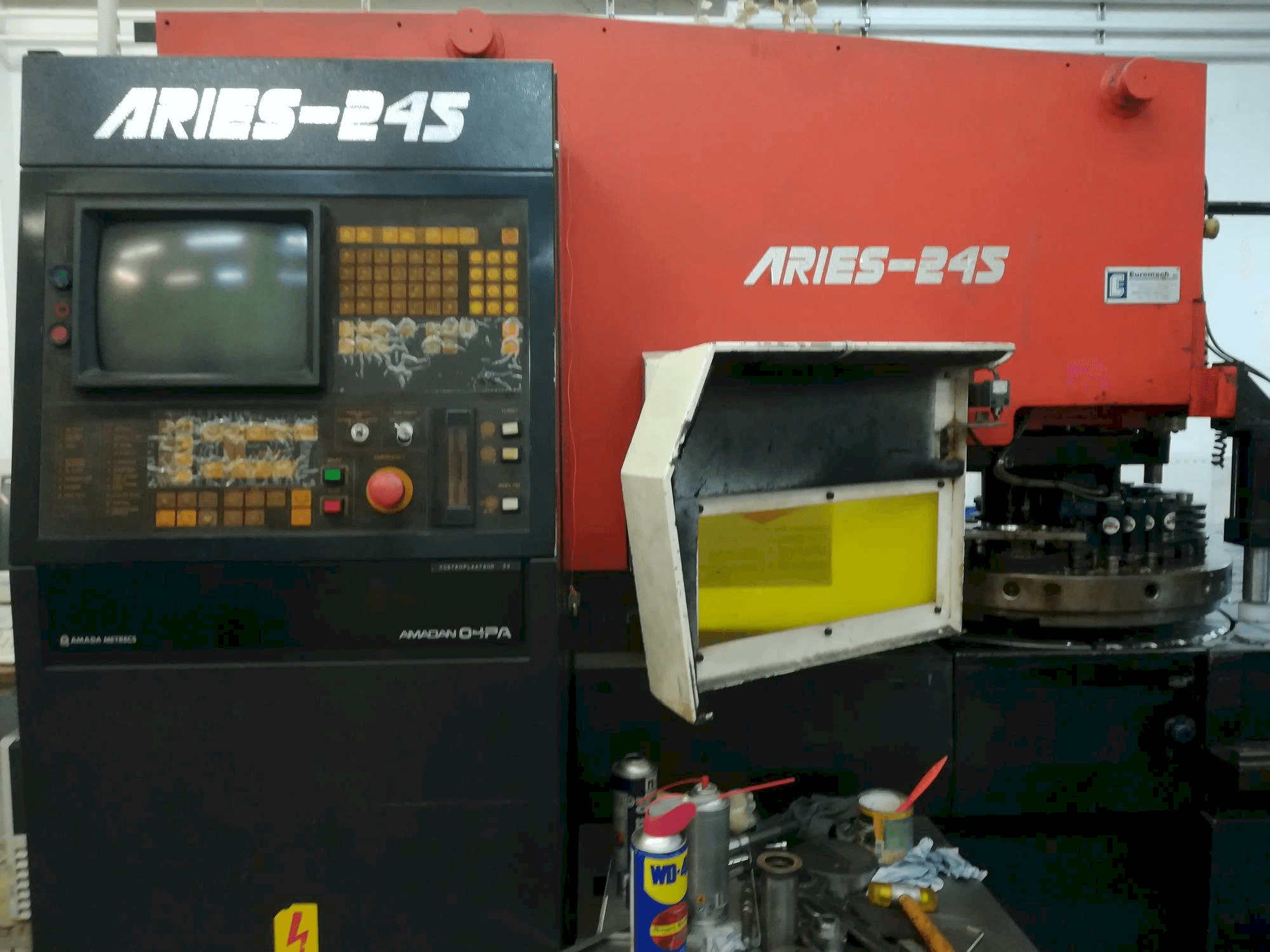

AMADA Aries 245 20Ton Punching Machine

Show in original language

This AMADA Aries 245 20Ton Punching Machine was built in the year 1989. It is equipped with a control unit of the same brand. This machine can perform with a press stroke 32 mm, a punching hit rate 180 hits/min at 25 mm, and a max worksheet thickness 4.5 mm.

Overview

brand: AMADA
year: 1989
MODEL: Aries 245 20Ton
application type: Punching
Location: Hungary
machine type: CNC Punch Press
availability: Sold

Technical Information - AMADA Aries 245 20Ton

General Data

Measurements width: 2700 mm
Measurements depth: 3784 mm
Measurements height: 1950 mm
Machine weight: 7500 kg

Movement

X-AXIS Movement: 1270 mm
Y-AXIS Movement: 1000 mm

Media

Power consumption: 11 kVA

Additional Information

Machine history

Material thickness: 4,5 mm

Machine Benefits

Technical Machine Benefits:
- - Press capacity: 20 metric tons
- - Max worksheet size (x x y): 2450 x 1000 mm
- - Punching accuracy: +- 0. 10 mm
- - Press stroke: 32 mm
- - No. Of press strokes: 300 strokes/min
- - Punching hit rate: 180 hits/min at 25 mm
- - Press motor: 3. 7 kw
- - Turret rotating speed: 20 rpm
- - Table feed rate: 40m/min

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
