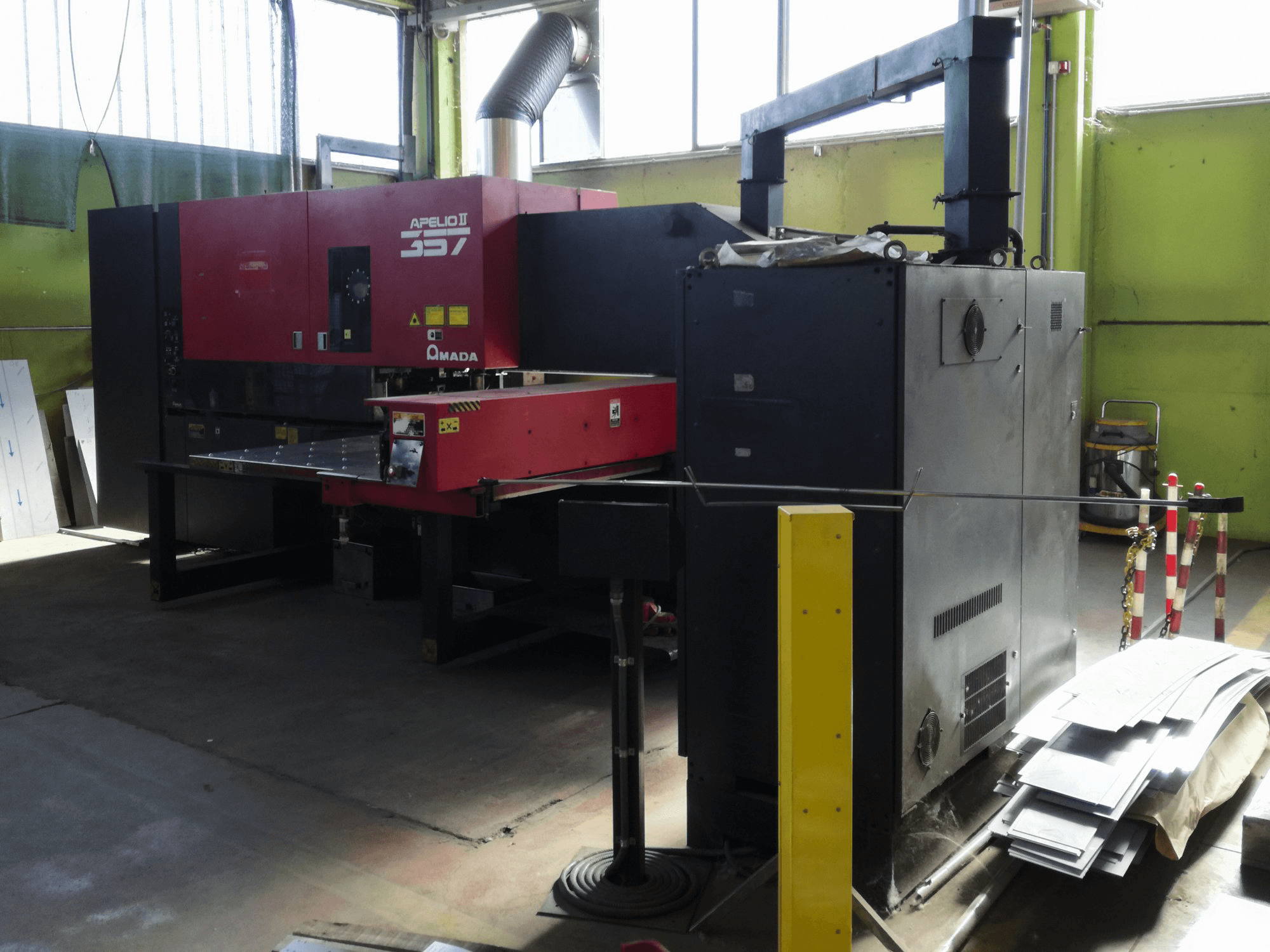

AMADA APELIO II-357 Laser Punch Combination Machine

Show in original language

This AMADA APELIO II-357 Laser Punch Combination Machine from 1993 has a working record of 57600 production hours. Operated through an AMADA AMADAN 05PL-A control unit, the model offers the versatility of two application types in one machine. In the past, this Apelio 357 has worked mainly with mild steel sheets of up to 3 mm in thickness, and produced industrial kitchen equipment.

Overview

brand: AMADA
year: 1993
MODEL: APELIO II-357
production hours: 57600
application type: Bending & Punching
Location: Italy
machine type: Punch-Laser Combination
availability: Sold
control unit brand: FANUC

Technical Information - AMADA APELIO II-357

General Data

Measurements width: 7000 mm
Measurements depth: 8000 mm
Measurements height: 2600 mm
Machine weight: 15000 kg

Control Unit

Brand: AMADA
Model: AMADAN 05PL-A

Main drive

Laserpower: 1.5 kW
Laser type: Co2
Punching force: 300 kN
Maximum sheet thickness: 5 mm
Laser brand: Fanuc

Movement

X-AXIS Movement: 3500 mm
Y-AXIS Movement: 1250 mm

Tools

Number of index: 2
Number of stations: 58
Max tool diameter: 88.9 mm

Max Material thickness

Steel: 5 mm
Stainless steel: 3 mm
Aluminum: 4 mm

Media

Main electronic connection: 200 V
Power consumption: 18 kVA

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
