AMADA A-18S Turning

Show in original language

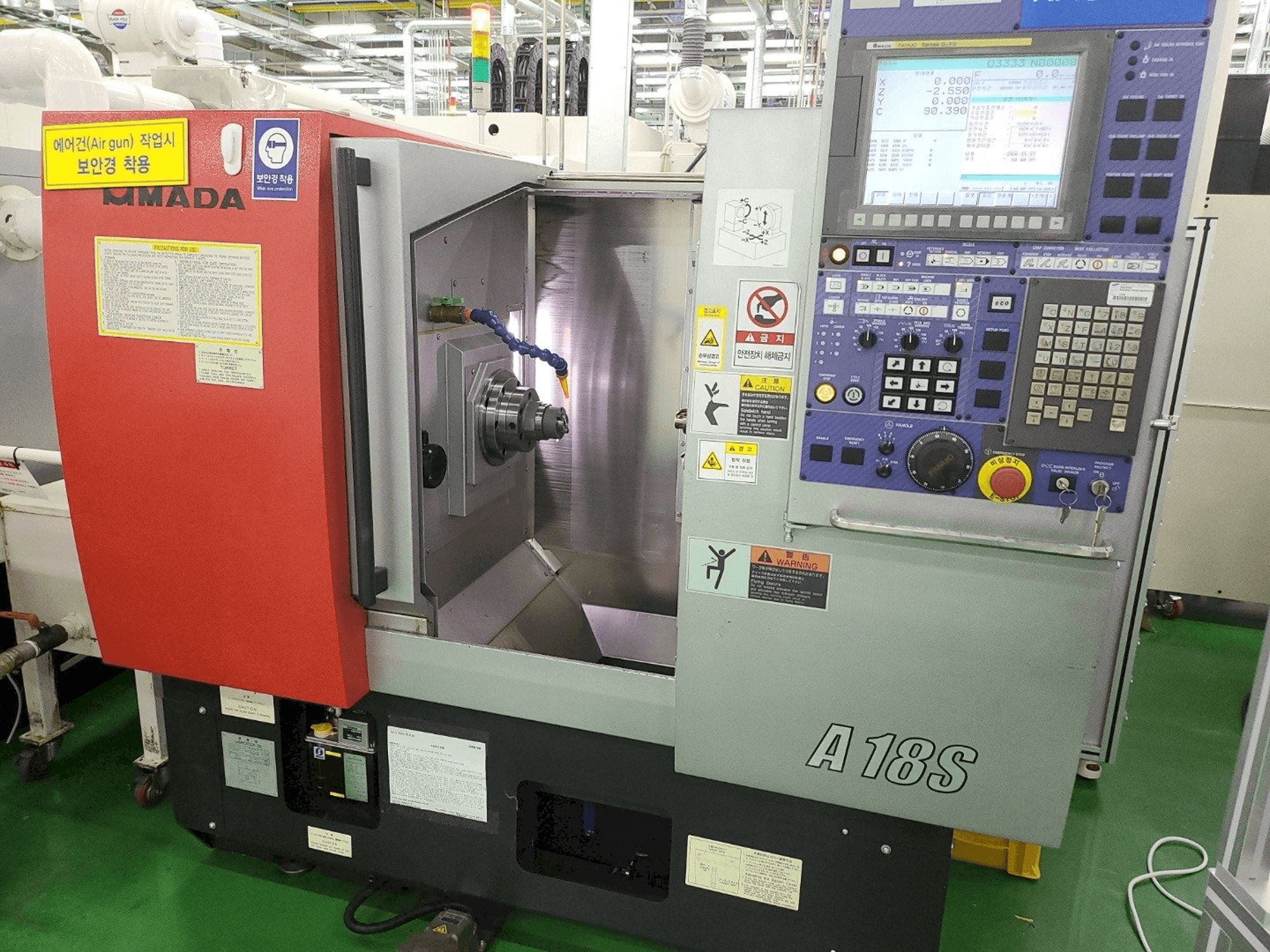

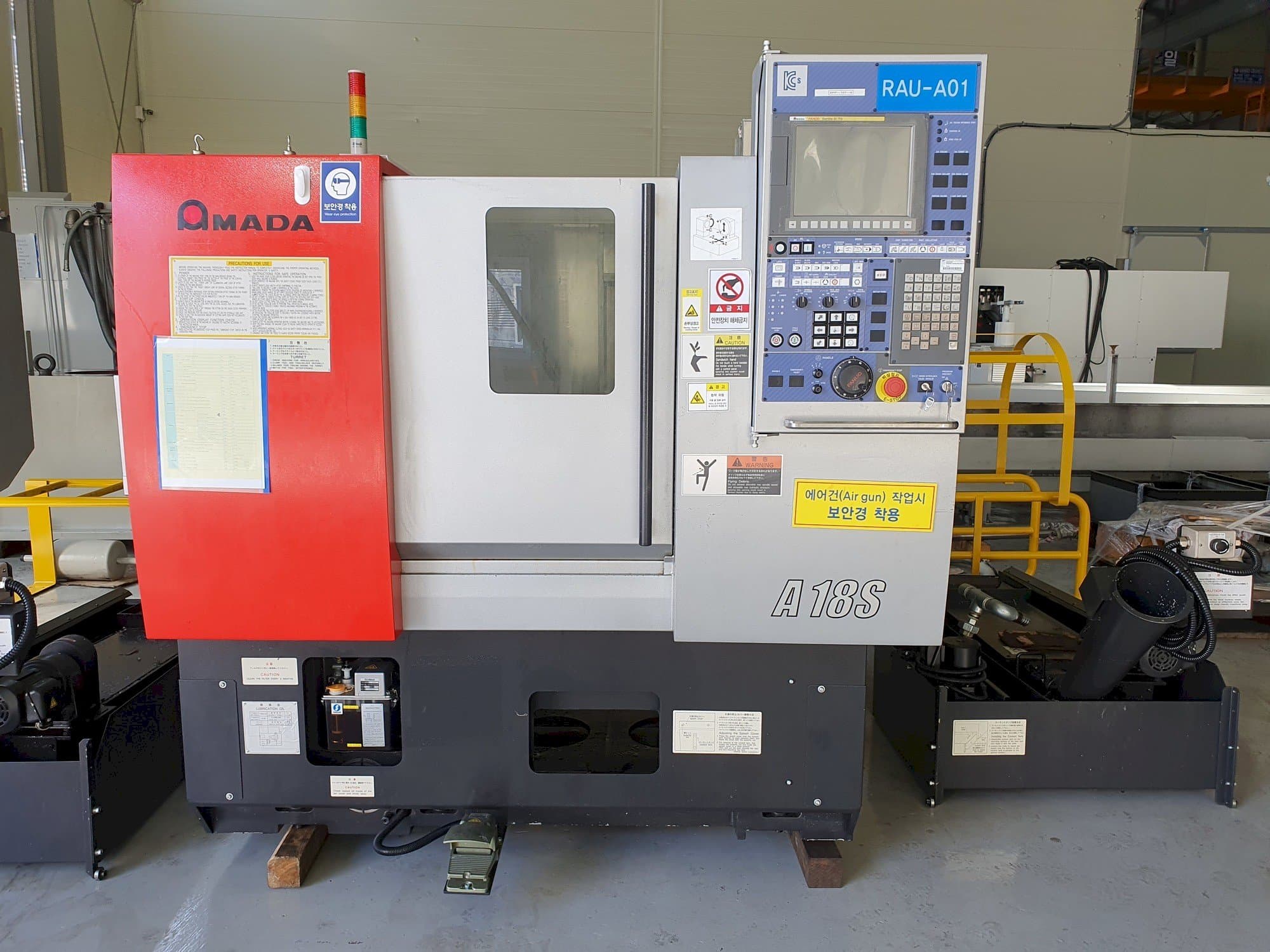

This AMADA A-18S lathe machine was manufactured in 2014. The machine has 16358 working hours, of which 1839 are running hours and 1372 are cutting hours. It is operated through a FANUC 0i-TD control unit. This 4 axis machine has a spindle speed up to 3500 rpm. It has been rarely used.

Overview

brand: AMADA
year: 2014
MODEL: A-18S
production hours: 16358
application type: Turning
Location: South Korea
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: FANUC

Technical Information - AMADA A-18S

Control Unit

Model: 0i-TD
Interface: 220V, 60Hz
Brand: FANUC

Main drive

Spindle speed range: 3500 1/MIN

Movement

X-AXIS Movement: 145 mm
Y-AXIS Movement: 100 mm
Z-AXIS Movement: 350 mm
C-AXIS Movement: .0001 MM

Table

Outer length: 620 mm
Outer width: 390 mm

Turret

Number of tool slots: 18ea

Media

Chip conveyor: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Bar capacity: ∮67
- - Bore capacity: ∮76
- - Live tools rpm x axis:10,000
- - Live tools rpm z axis:5,000
- - Call right(led 3 step)
- - Guideway type:lm guide
- - Mpg handle
- - Ce mark

Extra information

- This machine was used by Samsung. Samsung used this machine for development purposes. So they rarely used the machine, and always left the machine on.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
