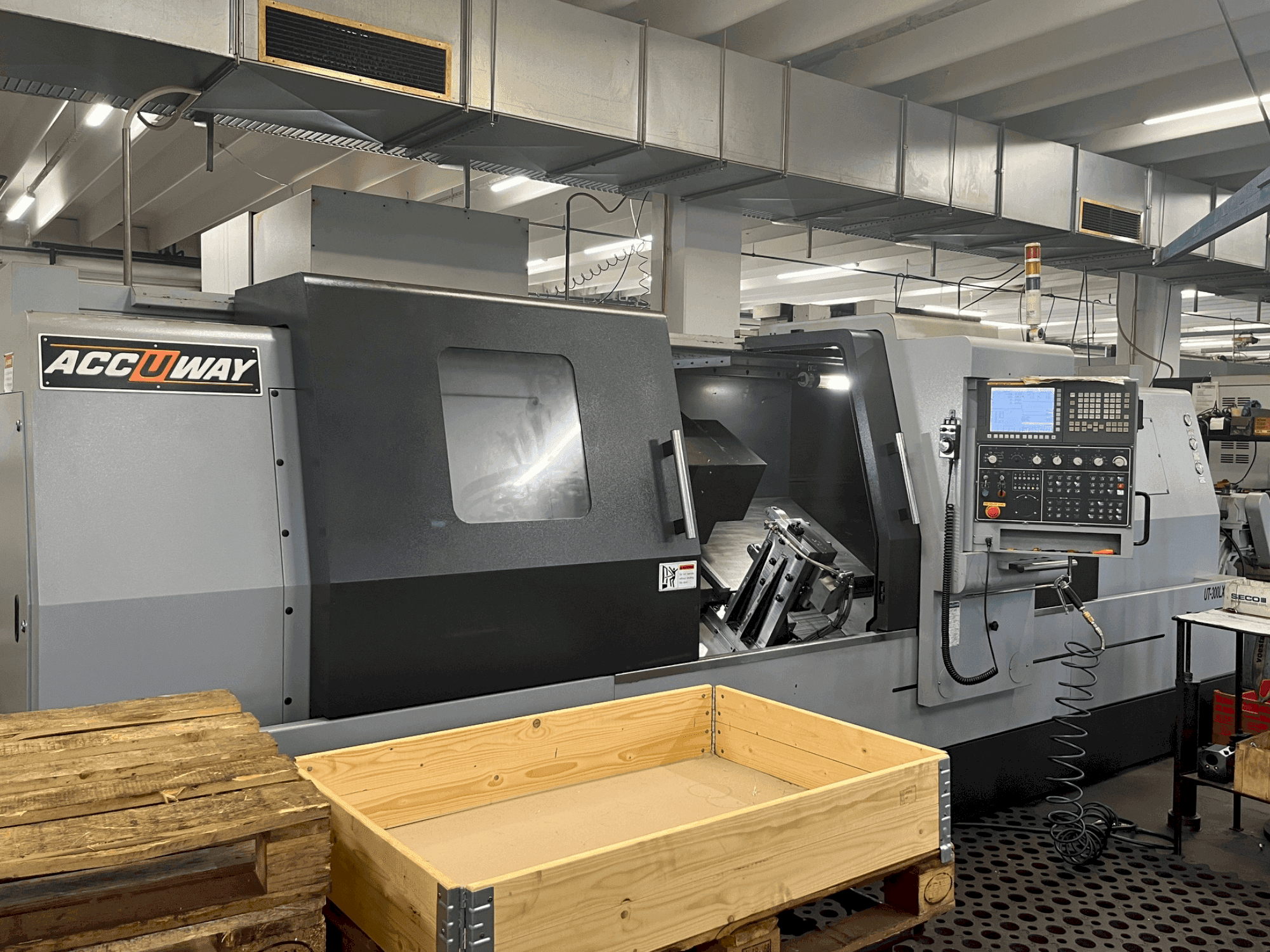

ACCUWAY UT-300LX2M (2016) Lathe

Show in original language

This ACCUWAY UT-300LX2M Lathe machine was manufactured in the year 2016. It is equipped with a FANUC 0i-T Control Unit. It has a heat exchanger for electric cabinet and a lubrication system. The monitor (LCD) is 10.4" colored and dispose a three color warning light.

Overview

brand: ACCUWAY
year: 2016
MODEL: UT-300LX2M
application type: Turning
Location: Slovenia
machine type: Turn-Mill Centre
availability: Immediately
control unit brand: FANUC

Technical Information - ACCUWAY UT-300LX2M

General Data

Measurements width: 2300 mm
Measurements depth: 5500 MM
Measurements height: 2200 MM
Machine weight: 9000 KG

Control Unit

Model: 0i-T
Interface: RJ-45
Brand: FANUC

Main drive

Spindle speed range: 3500 // 2700 // 2500 // 2000 1/MIN
Spindle motor power: 15/18.5 kW or 18.5/22 kW
Number of axis: 3

Movement

X-AXIS Movement: 300mm
X-AXIS Rapid traverse: 20m/min
Z-AXIS Movement: 2250mm
Z-AXIS Rapid traverse: 15m/min

Turret

Number of turrets: 1
Number of tool slots: 12

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Capacity; swing over bed: 612mm // swing over saddle: 400mm / max. Turning diameter: 500mm // max. Turning length: 2180mm or 2100mm
- - Spindle; spindle nose taper: asa a2-8 or a2-11 // chuck diameter: 10", 12", or 15" // bar capacity: 75mm, 90mm, 105mm, or 116. 5mm // spindle speed: 3500rpm, 2700rpm, 2500rpm, or 2000rpm // spindle motor power (cont. / 30min): 15/18. 5 kw or 18. 5/22 kw
- - Turret tooling system: bot
- - Turret driven type: hydraulic/servo // square tool shank size: 25mm // round tool shank size: 40mm
- - Tailstock body travel: 2040mm // quill travel: 120mm // quill diameter: 110mm // quill taper: mt#5
- - Rigid tapping
- - Heat exchanger for electric cabinet
- - 10. 4" colored lcd monitor
- - Lubrication system
- - Three-color warning light

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
