ZPS - MCFV 1260 NTCZ-MIL-ZPS-2001-00001
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- ZPS MCFV 1260 NT

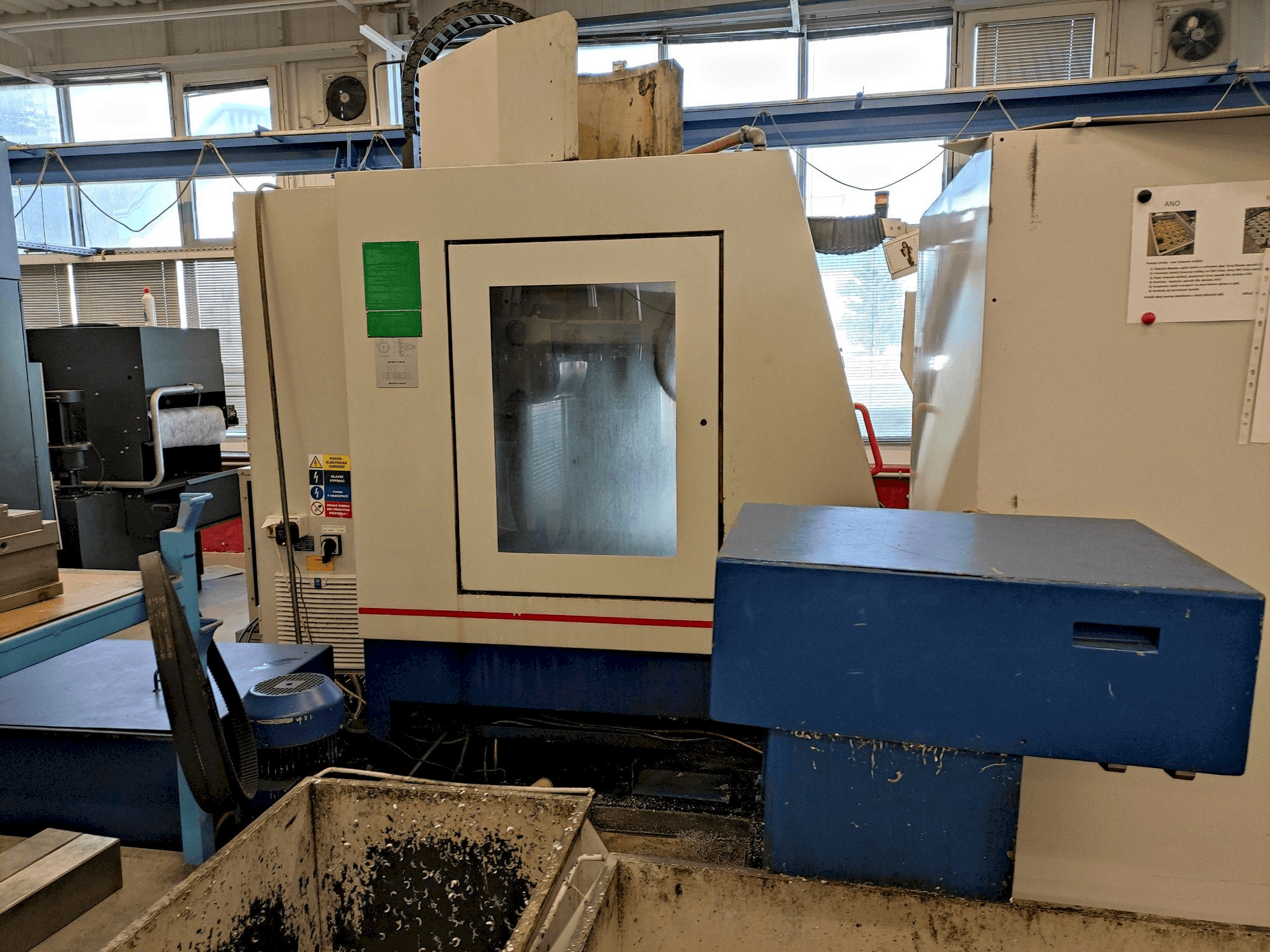

This ZPS MCFV 1260 NT Vertical Machining Center was made in the Czech Republic in the year 2001. It has been working for 72917 hours, of which 33404 are programming hours. This 3 axis machine is operated through a HEIDENHAIN TNC 426 M control unit. It can perform with a spindle speed up to 6000 rpm. This machine replaced its spindle in 2012. It has been mainly been producing moulds. This machine is in very good condition and has been regularly maintained.
Overview
- brand: ZPS
- year: 2001
- MODEL: MCFV 1260 NT
- production hours: 72917
- application type: Milling
- Location: Czech Republic
- machine type: Vertical Machining Centre
- availability: Sold
- control unit brand: HEIDENHAIN
Technical Information - ZPS MCFV 1260 NT
General Data
- Measurements width: 3200 mm
- Measurements depth: 2120 mm
- Machine weight: 8000 kg
Control Unit
- Brand: HEIDENHAIN
- Model: TNC 426 M
Main drive
- Number of spindles: 1
- Spindle speed range: 6000 1/MIN
- Spindle motor power: 22.5/17 kW (30/100%)
- Number of axis: 3
Movement
- X-AXIS Movement: 1270 MM
- Y-AXIS Movement: 610 MM
- Z-AXIS Movement: 760 MM
Workpiece
- Workpiece weight: 1350 KG
Table
- Outer length: 1450 MM
- Outer width: 590 MM
- Max distance between vertical spindle and table: 150 - 910 mm
Tools
- Slots in storage: 32
- Max weight: 12 KG
- Max tool diameter: 130/220 MM
- Max tool length: 300 MM
- Type of tool holder: ISO 50
Media
- Power consumption: 32 KVA
- Chip conveyor: Yes
- Internal cooling: Yes
Additional Information
- End product: Moulds
- Industries: Mould&die
- Technical Machine Benefits:
- - Coolant
- - Paper band filtration
- Qualitative Machine Benefits:
- - Very good condition, regularly maintained.
- - New spindle installed in 2012
Machine history
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
