Ziersch ZT 1020 Grinding machine

Show in original language

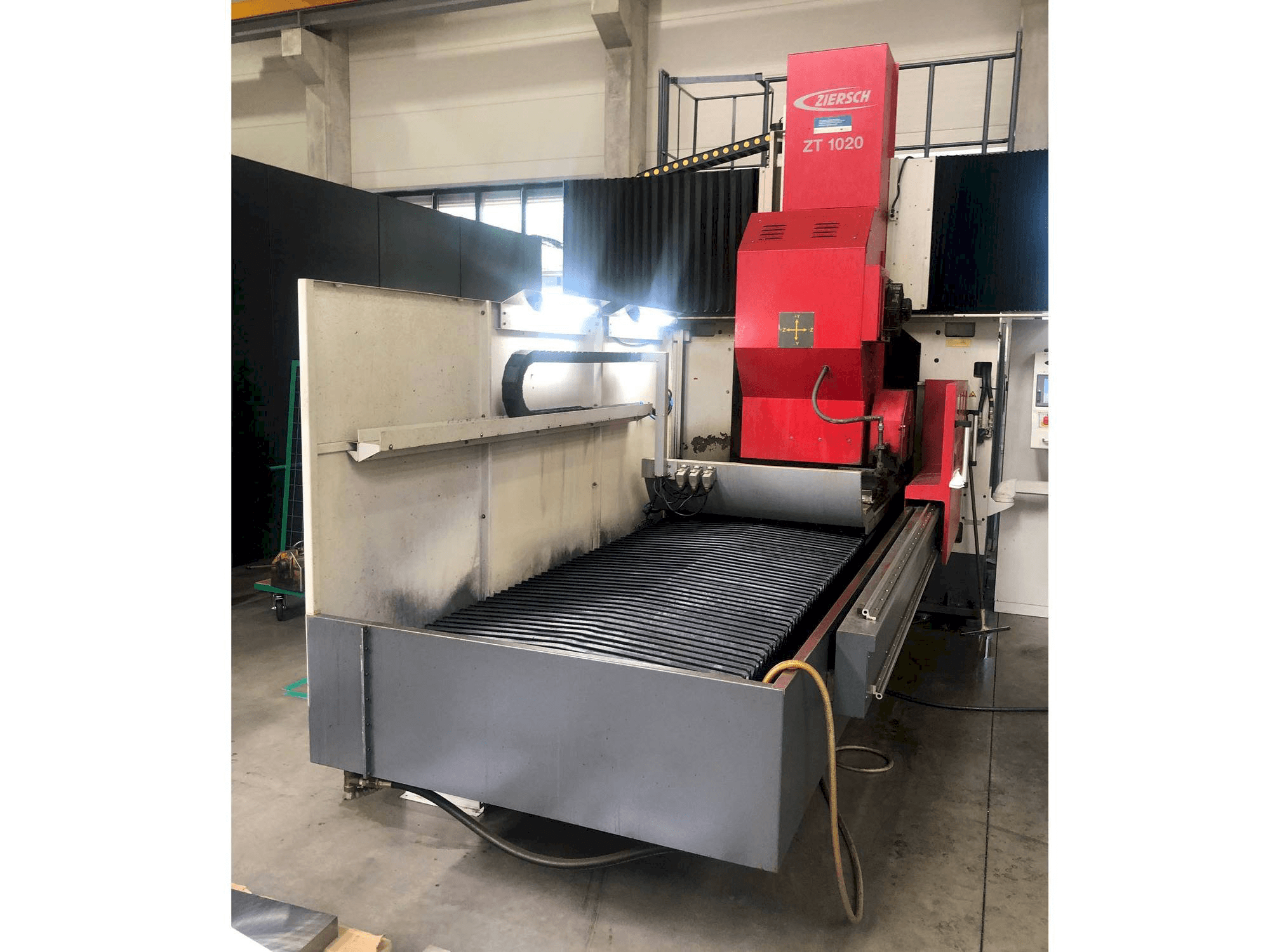

This Ziersch ZT 1020 Grinding machine was manufactured in the year 2015 in Germany and has 7187 production hours. It is equipped with a Ziersch GOT1000 control unit. The machine has a control range grinding spindle motor of 3000 rpm, is in very good condition and has low hours.

Overview

brand: Ziersch
year: 2015
MODEL: ZT 1020
production hours: 7187
application type: Grinding
Location: Czech Republic
machine type: Surface Grinding Machine
availability: Sold

Technical Information - Ziersch ZT 1020

General Data

Measurements width: 8160 mm
Measurements depth: 4650 mm
Measurements height: 4500 mm
Machine weight: 22000 kg

Control Unit

Model: GOT1000

Movement

X-AXIS Movement: 2500 mm
Y-AXIS Movement: 1050 mm
Z-AXIS Movement: 1100 mm

Table

Outer length: 2050 mm
Outer width: 1000 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Grinding range 2. 000 x 1. 200 mm
- - Size of magnetic chuck 2. 000 x 1. 000 mm
- - Table load incl. Magnetic chuck 4. 000 kg
- - Grinding spindle drive 22 kw
- - Control range grinding spindle motor 3. 000 rpm
- - "distance between columns incl. Enclosure 1. 250 mm"
Qualitative Machine Benefits:
- - Very good condition, low hours.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
