Zayer ZF 100 Bed Type Milling Machine

Show in original language

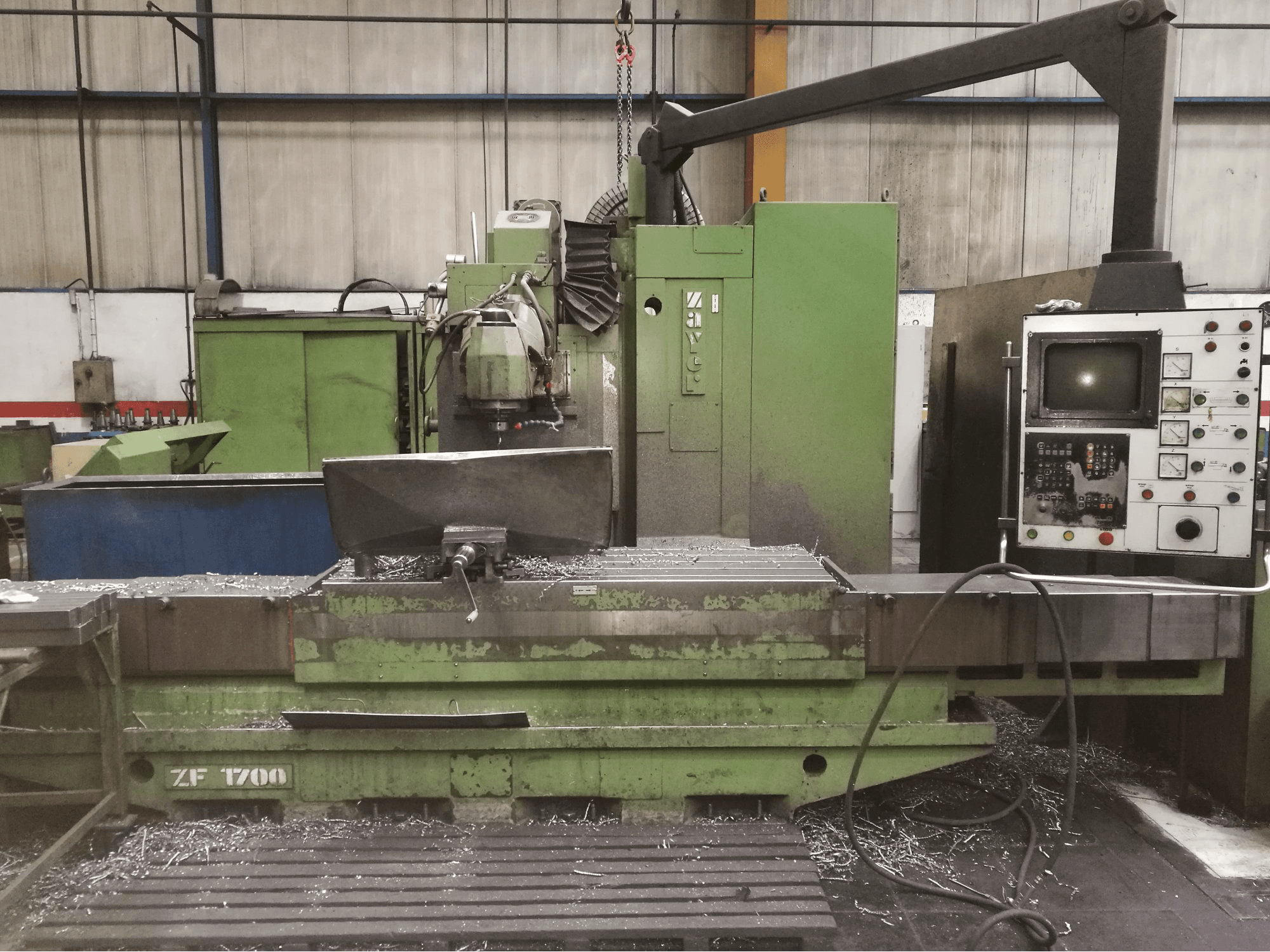

This Zayer ZF 100 Bed Type Milling Machine from 1990 has a production record of only 20515 hours. With a spacious table of 1700 x 630 millimeters (L x W), and a range of movements of 1400, 700 and 700 millimeters (X-Axis, Y-Axis and Z-Axis respectively), the equipment is operated through a HEIDENHAIN TNC 355 Control Unit. A remote control is also included.

Overview

brand: Zayer
year: 1990
MODEL: ZF 1700
production hours: 20515
application type: Milling
Location: Spain
machine type: Gantry Milling Machine
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - Zayer ZF 1700

General Data

Measurements width: 3557 mm
Measurements depth: 5200 mm
Measurements height: 2750 mm
Machine weight: 9000 kg

Control Unit

Model: TNC 355
Remote control: Yes
Brand: HEIDENHAIN

Main drive

Spindle speed range: 3000 1/min
Spindle motor power: 14.7 kW

Movement

X-AXIS Movement: 1400 mm
X-AXIS Rapid traverse: 15 m/min
Y-AXIS Movement: 700 mm
Y-AXIS Rapid traverse: 15 m/min
Z-AXIS Movement: 700 mm
Z-AXIS Rapid traverse: 15 m/min

Workpiece

Workpiece weight: 6000 kg

Table

Outer length: 1700 mm
Outer width: 630 mm
TSlots size: 18 mm
Number of tslots: 5

Media

Main electronic connection: 380 V / 50 Hz
Power consumption: 44.5 kVA

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
