YCM NSV 102 A Vertical Machining Center

Show in original language

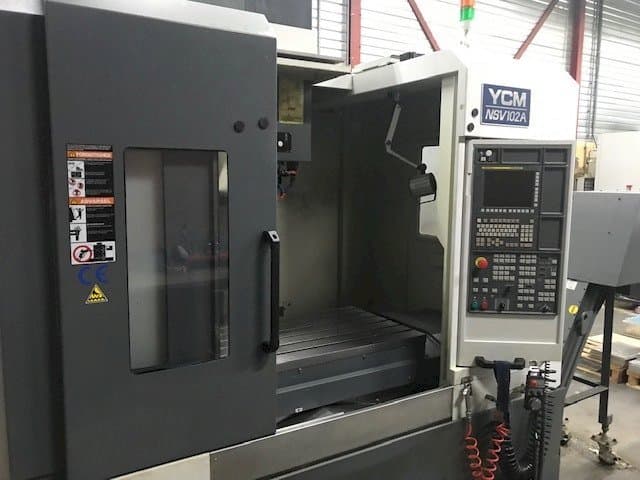

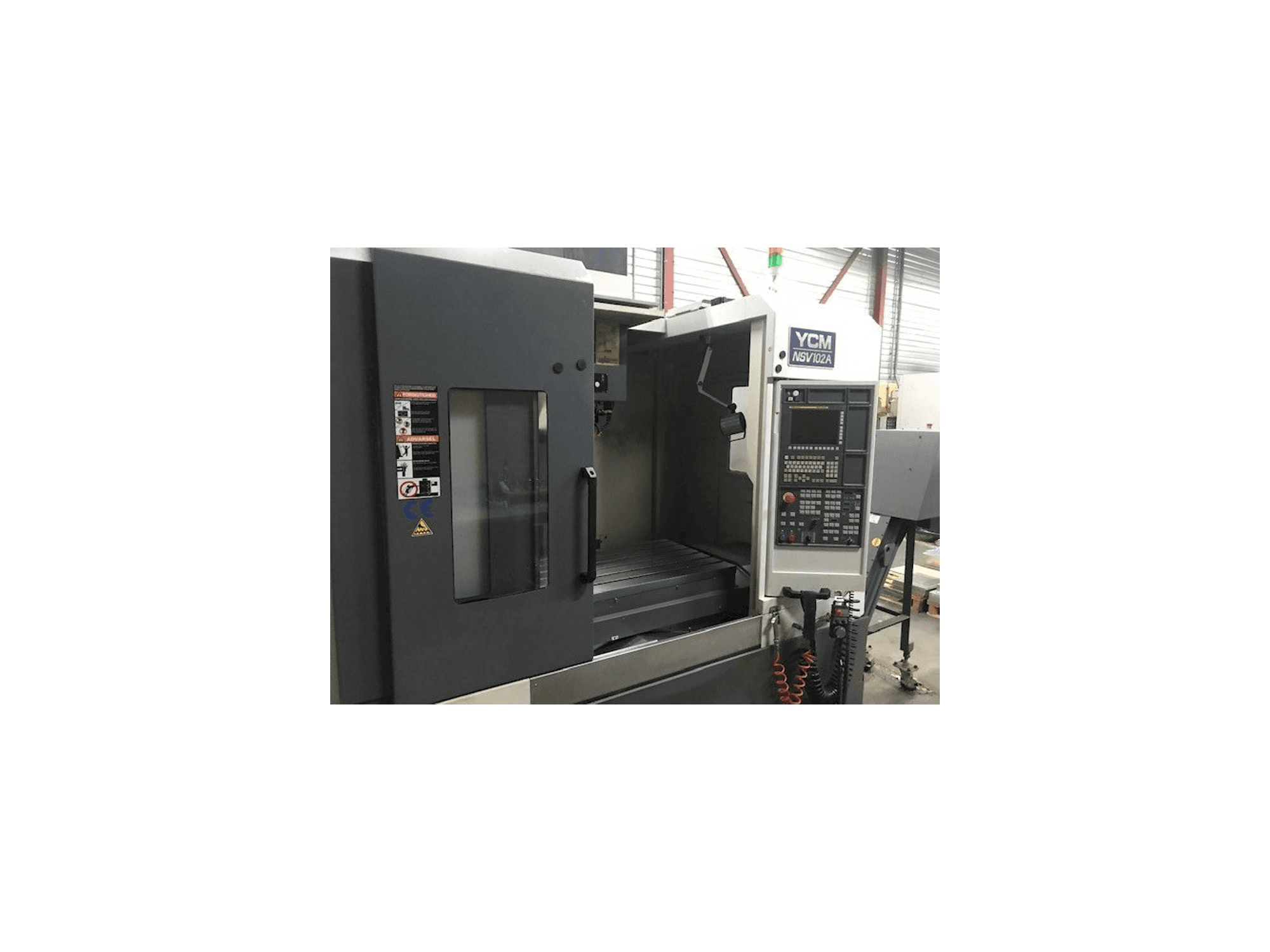

This YCM NSV 102 A Vertical Machining Center was built in the year 2012 in Taiwan. It has only 445 working hours. It is equipped with a Fanuc control unit. This 3 axis machine can operate with a speed up to 12000 rpm.

Overview

brand: YCM
year: 2012
MODEL: NSV 102 A
production hours: 445
application type: Milling
Location: Netherlands
machine type: Vertical Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - YCM NSV 102 A

General Data

Measurements width: 2937 mm
Measurements depth: 2760 mm
Measurements height: 3021 mm
Machine weight: 7000 kg

Control Unit

Brand: FANUC

Main drive

Spindle speed range: 12000 1/MIN
Spindle motor power: 22 kW
Tool taper: BBT40
Number of axis: 3

Movement

X-AXIS Movement: 1020 mm
X-AXIS Rapid traverse: 48 m/min 1889 ipm
Y-AXIS Movement: 600 mm
Y-AXIS Rapid traverse: 48 m/min 1889 ipm
Z-AXIS Movement: 600 mm
Z-AXIS Rapid traverse: 48 m/min 1889 ipm

Table

Outer length: 1120 mm
Outer width: 650 mm

Media

Power consumption: 33 kVA

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
