YASDA - YBM Vi40DE-MIL-YAS-2017-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used YASDA YBM Vi40 For sale | gindumac.com

Show in original language

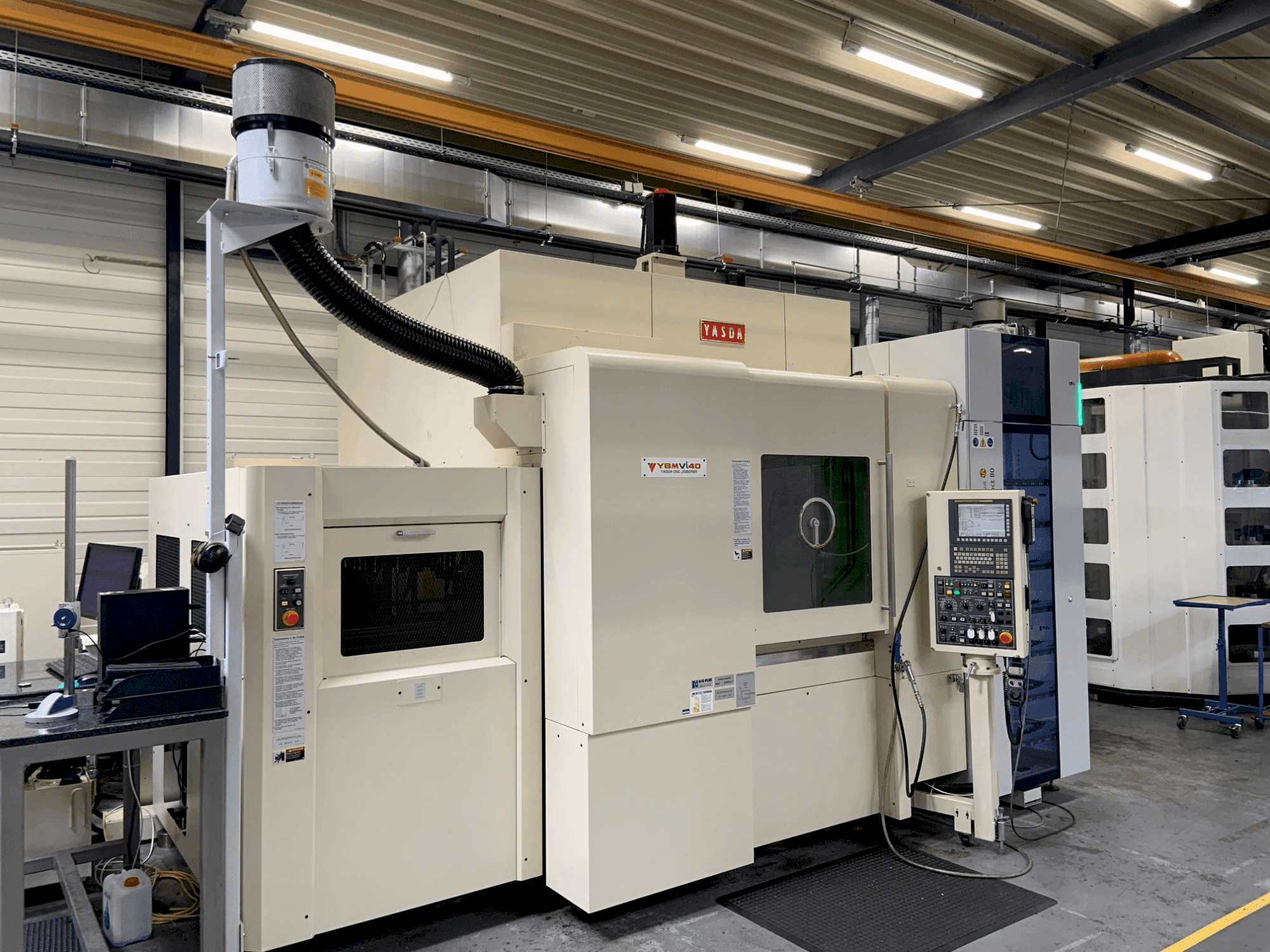

This 5-axis YASDA YBM Vi40 vertical machining center was manufactured in 2017. It features a FANUC 31i B5 control unit, a spindle speed range up to 24000min-1, and a rapid traverse speed of 20000mm/min. The machine includes a rotary table with B and C axes, offering a 360-degree rotation and ±110-degree tilt. With a tool holding capacity of 100 places, this YASDA YBM Vi40 machine we have for sale represents a significant opportunity. Contact us for further details.

Overview

brand: YASDA
year: 2017
MODEL: YBM Vi40
production hours: 48
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - YASDA YBM Vi40

General Data

Measurements width: 3320 MM
Measurements depth: 3850 MM
Measurements height: 3515 MM
Machine weight: 15,000 KG

Control Unit

Brand: FANUC
Model: 31i B5

Main drive

Spindle speed range: 100 - 24000 1/MIN

Movement

X-AXIS Movement: 900 mm
X-AXIS Rapid traverse: 5000 mm/min
Y-AXIS Movement: 500 mm
Y-AXIS Rapid traverse: 5000 mm/min
Z-AXIS Movement: 450 mm
Z-AXIS Rapid traverse: 5000 mm/min
AXIS 1 Movement: 360 °
AXIS 1 Rapid traverse: 100min-1
AXIS 2 Movement: ±110 °
AXIS 2 Rapid traverse: 20min-1

Table

Min distance between vertical spindle and table: 100 mm
Max distance between vertical spindle and table: 550 mm
Table load: 200 kg
Max punching diameter: 400 mm

Tools

Slots in storage: 100
Max weight: 7 kg
Max tool diameter: 70 mm
Max tool length: 250 mm

Additional equipment

- Measuring probe
- Calibration mandrel
- Over 300 BBT 40 milling holders

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Permissible load moment on the table: 200nm
- - Table surface configuration 44-m12 tap
- - Max. Rotation speed of rotary axis (1-axis): 100min-1
- - Max. Rotation speed of tilt axis (2-axis): 20min-1
- - Inner diameter of spindle bearing diameter: 65mm

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
