- XYZ 2-OP Vertical Machining Center

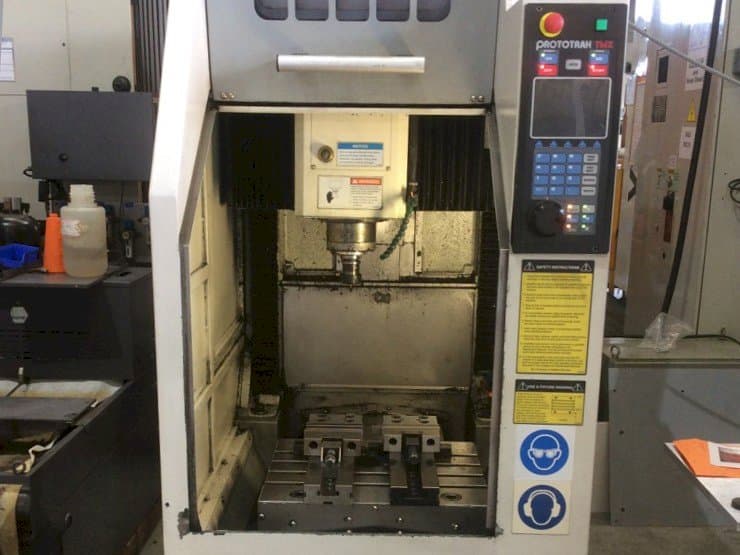

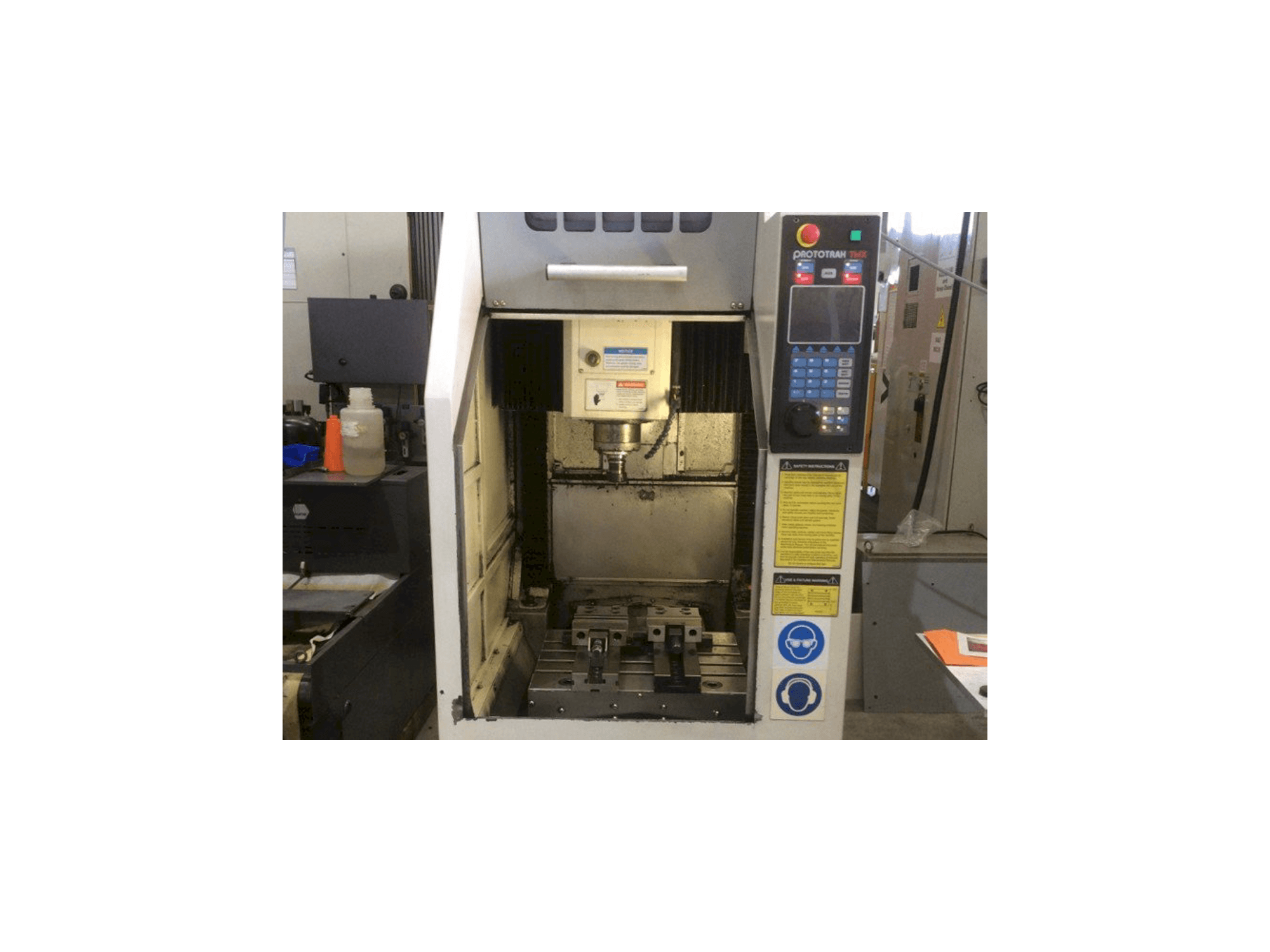

This XYZ 2-OP Vertical Machining Center was built in Taiwan in 2014. This machine is capable of working with a spindle speed up to 6000 rpm. This machine stands out for its perfectly good conditions.
Overview
- brand: XYZprinting
- year: 2014
- MODEL: 2-OP
- application type: Milling
- Location: Ireland
- machine type: Vertical Machining Centre
- availability: Sold
Technical Information - XYZprinting 2-OP
General Data
- Measurements width: 775 mm
- Measurements depth: 1380 mm
- Measurements height: 2520 mm
- Machine weight: 1100 kg
Control Unit
- CNC main language: English
- CNC language customizable: Yes
Main drive
- Number of spindles: 1
- Spindle speed range: 6000 1/MIN
Movement
- X-AXIS Movement: 355 mm
- Y-AXIS Movement: 305 mm
- Z-AXIS Movement: 455 mm
Workpiece
- Workpiece weight: 250 kg
Table
- Outer length: 457 mm
- Outer width: 381 mm
- Number of tslots: 4
- Distance between: 63 mm
Tools
- Slots in storage: 8
- Max tool diameter: 50 mm
- Type of tool holder: BT30
Media
- Main electronic connection: 400 V
Additional Information
- Material type: Aluminium
- End product: Aerospace parts
- Industries: Aerospace industry
- Technical Machine Benefits:
- - Small footprint
- - Excellent additional 2 op machine
- Qualitative Machine Benefits:
- - Machine in very good condition
- - Machine well maintained
Machine history
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
