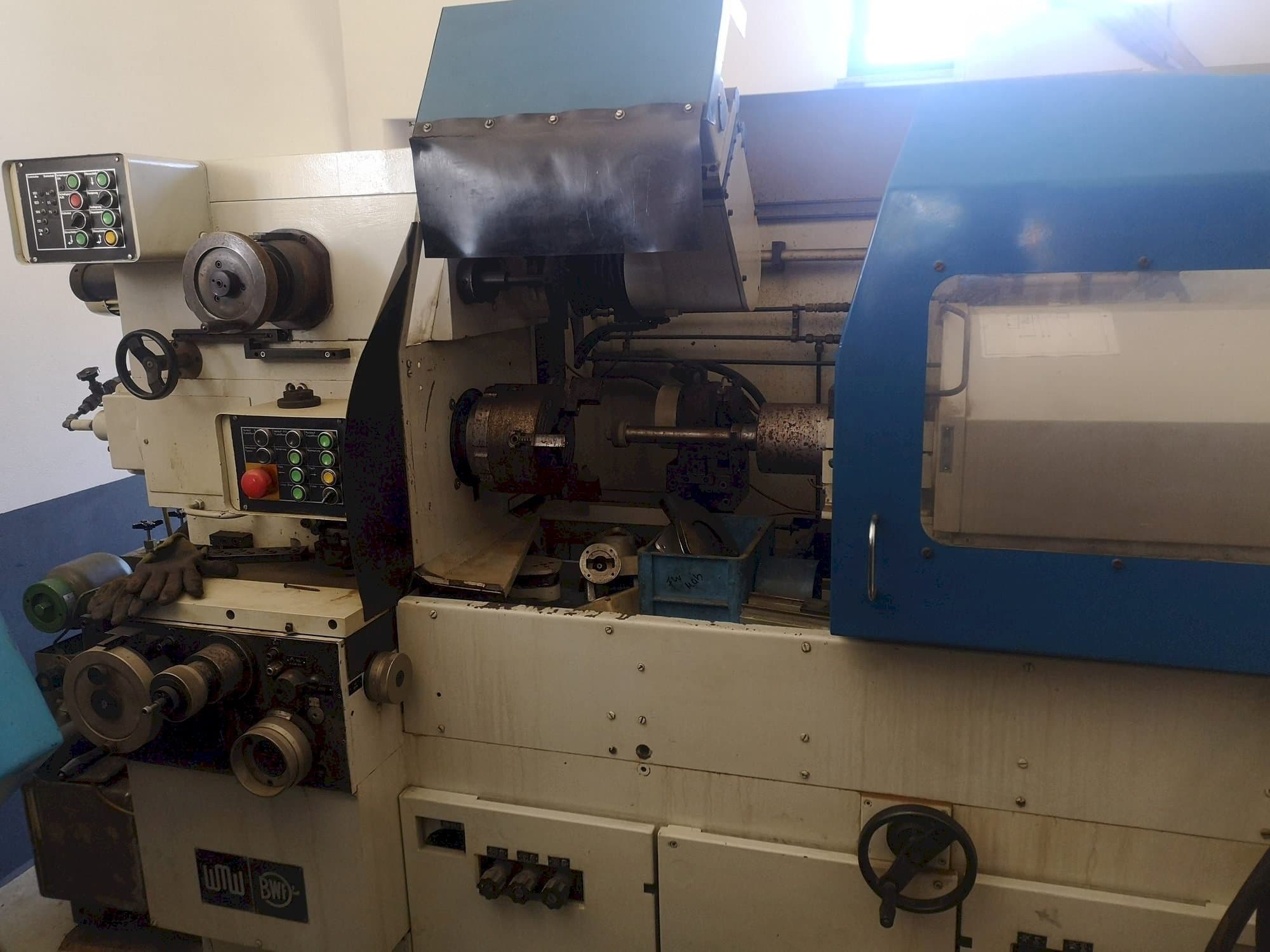

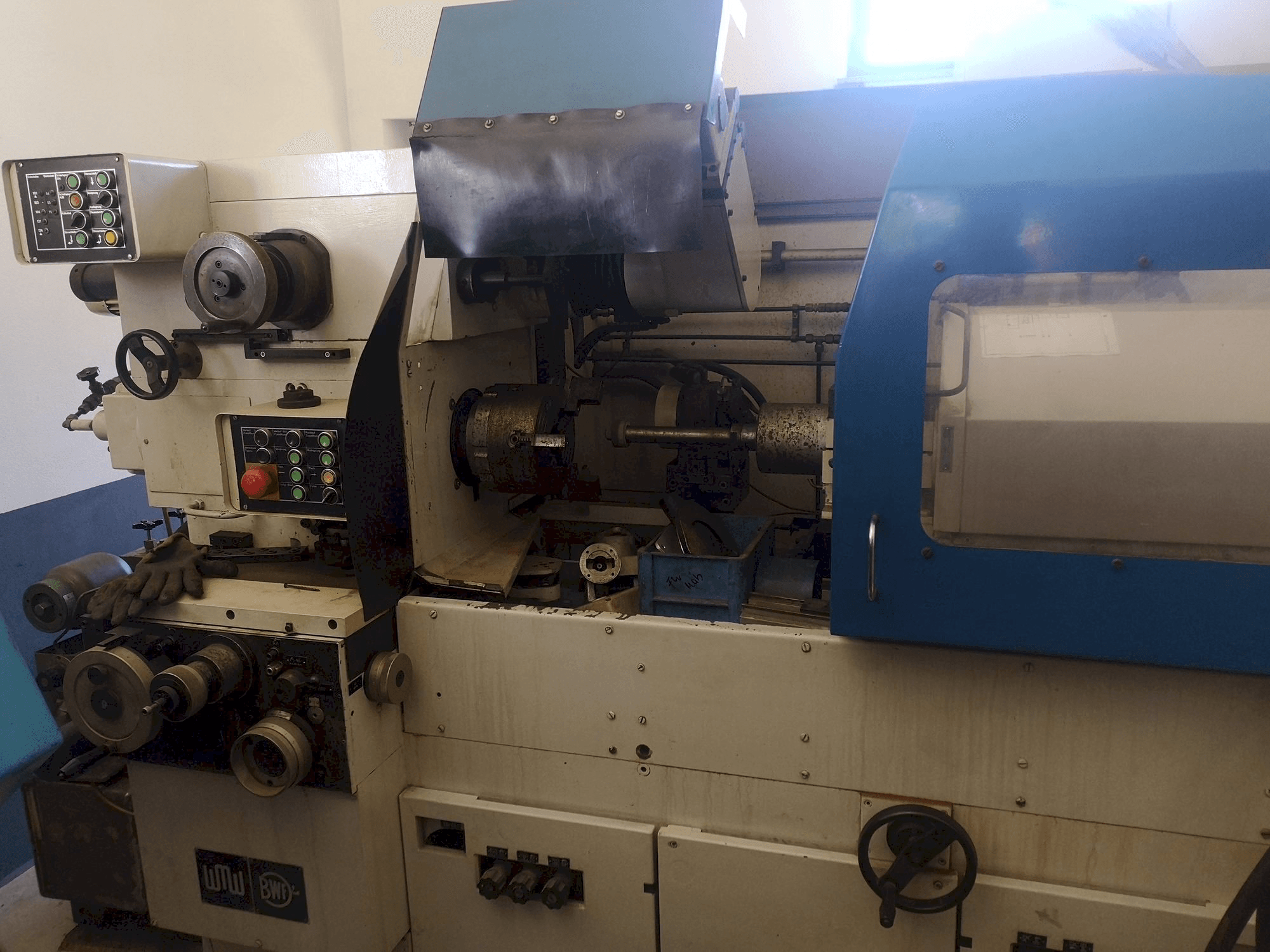

WMW SI4 Grinding machine

Show in original language

This WMW SI4 Grinding machine was manufactured in the year 1988 in Germany. The machine has a spindle speed of 11500-29000 rpm.

Overview

brand: WMW
year: 1988
MODEL: SI4
application type: Grinding
Location: Germany
machine type: Cylindrical Grinding Machine
availability: Sold

Technical Information - WMW SI4

General Data

Measurements width: 2200 mm
Measurements depth: 1400 mm
Measurements height: 2000 mm
Machine weight: 5300 kg

Main drive

Spindle speed range: 11 500 - 29 000 1/MIN

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Rotation diameter: 315 / 450 mm
- - Grinding depth: 200 mm
- - Taper grinding up to: 60 degrees
- - Grinding diameter - inside: min. /max. 5 / 200 mm
- - Table stroke: 5 -560 mm
- - Rapid traverse z-axis: table 12 m/min
- - Infeed path: table up to 0. 8 stepless mm
- - Grinding wheel dimensions: Ø 80 x width 80 mm
- - Oscillating stroke of the table: 5 - 185 mm
- - Oscillating speed: 0. 5 - 6 m/min
Qualitative Machine Benefits:
- - Double strokes/min: 200 min
- - Carriage adjustment travel: 168 mm
- - Infeed speed: 0. 02-16 mm/min
- - Total power requirement: approx. 14. 0 kw
- - Workpiece spindle swivels 30°
- - Displacement 170mm, speed 40 - 1000 rpm
- - Circulation Ø with guard = 315mm without guard = 450 mm
- - Workpiece clamping permanent magnet Ø 200 mm
- - Dressing device operation via control panel

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
