WEMAS VZ 1000 Vertical Machining center

Show in original language

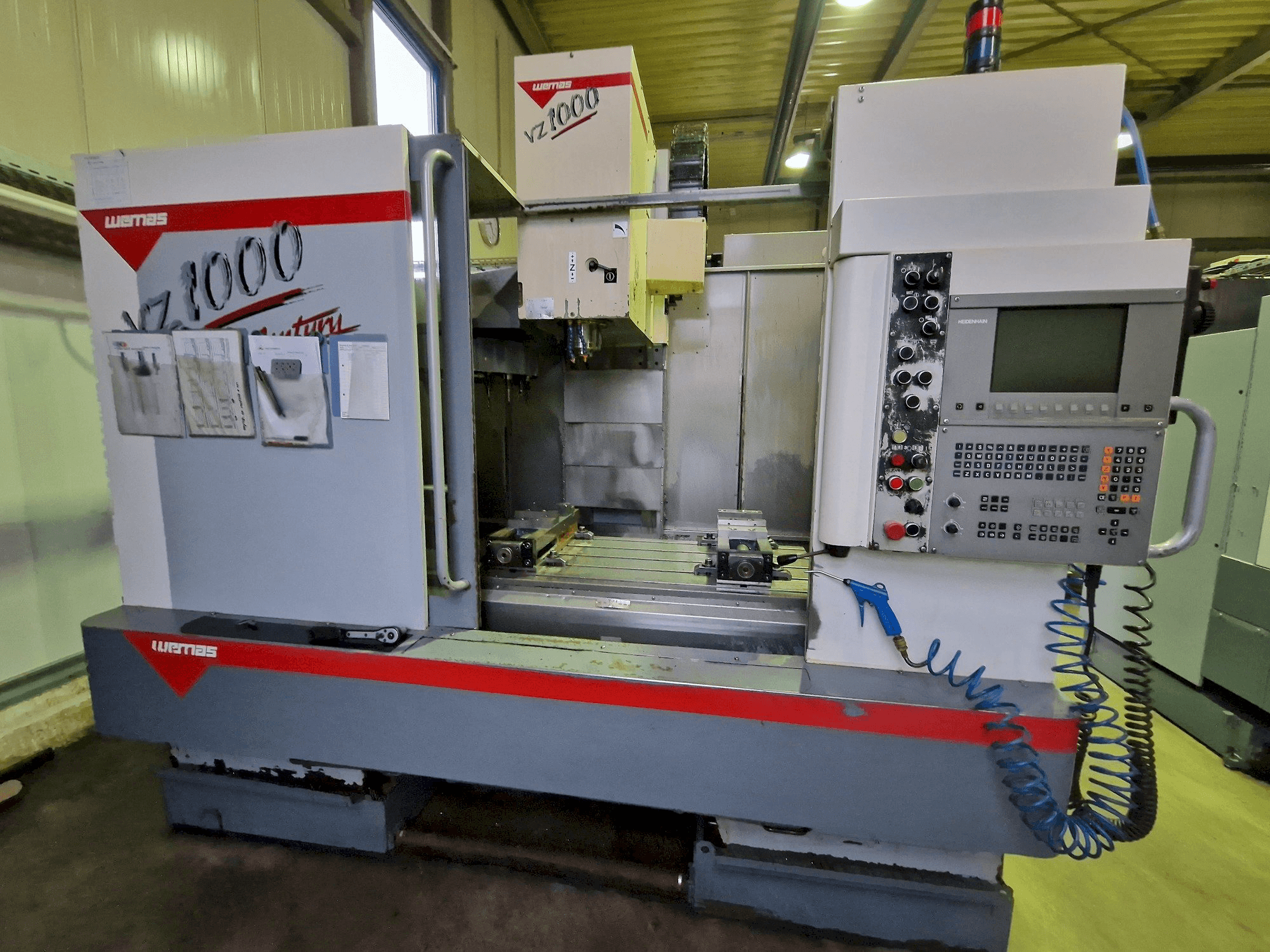

This WEMAS VZ 1000 Vertical Machining Center was manufactured in the year 2000 in Germany and has 19499 spindle hours. It is equipped with a HEIDENHAIN 430 control unit and has 3 axis. The machine has a spindle speed of 20 - 6000 rpm.

Overview

brand: WEMAS
year: 2000
MODEL: VZ 1000
production hours: 19499
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - WEMAS VZ 1000

Control Unit

Model: 430
Brand: HEIDENHAIN

Main drive

Spindle speed range: 20 - 6000 1/MIN
Number of axis: 3

Tools

Type of tool holder: SK40

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Clamping surface of the table: 1300 x 600 mm
- - Number of t-slots of the table: 5
- - Width and pitch of the table t-slots: 18/125 mm
- - Max. Length of the table path: 1016 mm
- - Max. Length of the slide path: 610 mm
- - Max. Length of the spindle track: 660 mm
- - Maximum workpiece weight: 700 kg

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Documents

Wemas VZ1000.pdf
