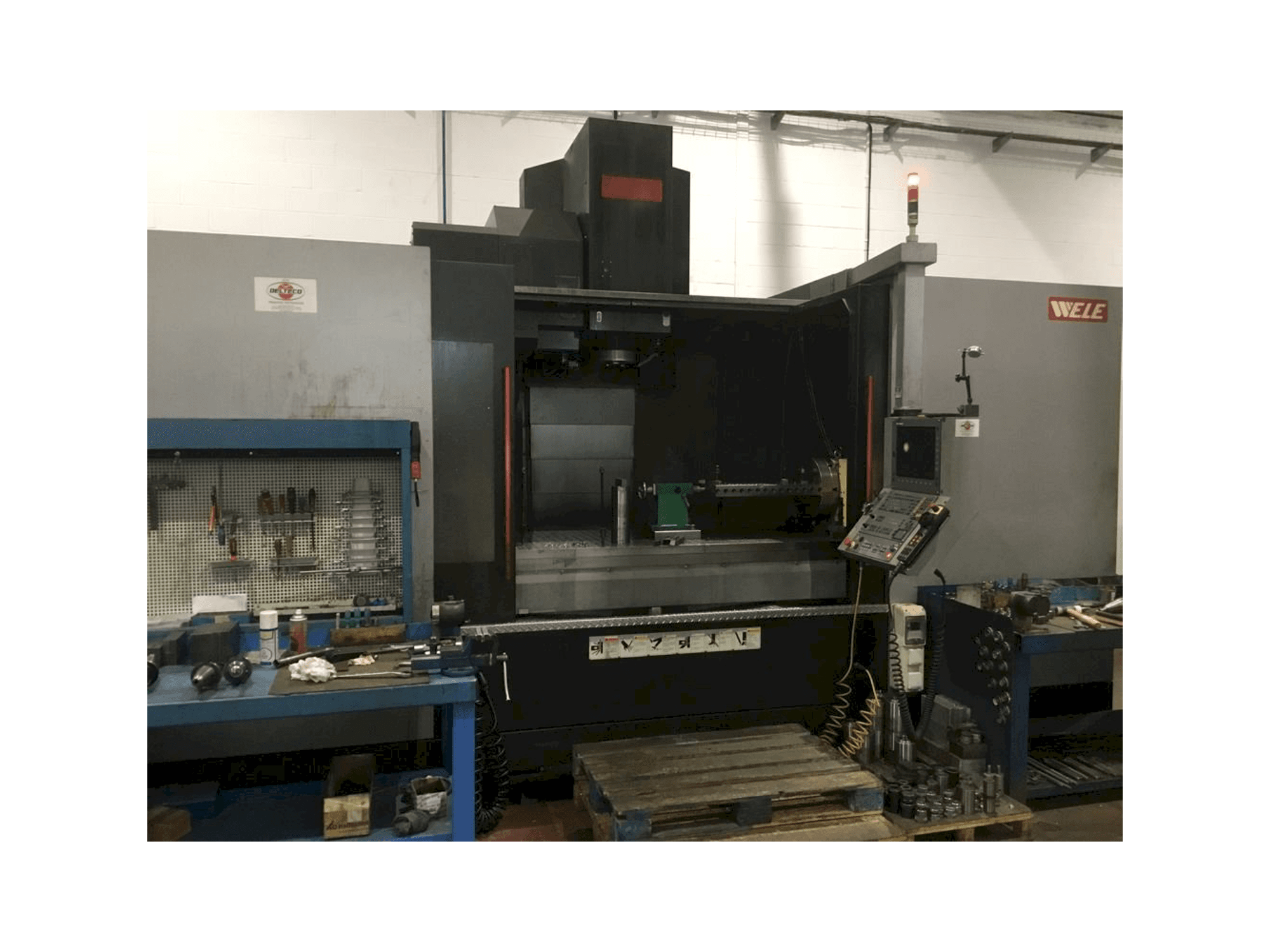

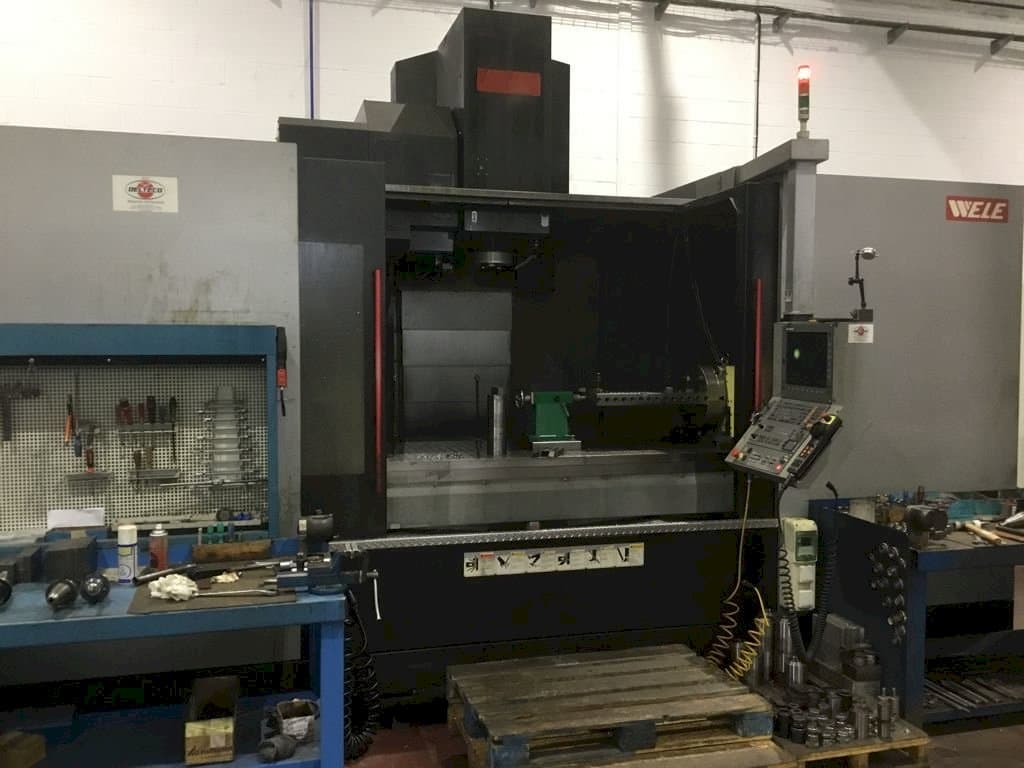

This Wele AA2090 Vertical Machining Center was produced in Taiwan in the year 2012. It is equipped with a Heidenhain iTNC 530 control unit. This 3 axis machine can work with a spindle speed range up to 6000 rpm. It has only been used by two brothers. This machine is very well maintained and works with very good precision. It does not include divider.

Overview

brand: Wele
year: 2012
MODEL: AA2090
application type: Milling
Location: Spain
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - Wele AA2090

General Data

Measurements width: 5300 mm
Measurements depth: 3250 mm
Measurements height: 3620 mm
Machine weight: 23000 kg

Control Unit

Model: iTNC 530
Brand: HEIDENHAIN

Main drive

Number of spindles: 1
Spindle speed range: 6000 1/MIN
Number of axis: 3

Movement

X-AXIS Movement: 2000 mm
Y-AXIS Movement: 900 mm
Z-AXIS Movement: 900 mm

Table

Outer length: 2150 mm
Outer width: 900 mm
Number of tslots: 5
Distance between: 175 mm

Tools

Slots in storage: 30
Max weight: 15 kg
Max tool diameter: 110/200 mm
Max tool length: 300 mm
Type of tool holder: ISO 50

Media

Main electronic connection: 400 v 50 hz
Power consumption: 47 kva
Chip conveyor: Yes
Internal cooling: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Rigid tapping function
- - Oil cooler system
- - Cooling through the spindle with an extra 20 bar tank
- - Caterpillar chip extractor
- - Helical interpolation
Qualitative Machine Benefits:
- - Good status
- - Maintenance

Extra information

- does not include divider

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
