Walter Helitronic Power Grinding Machine

Show in original language

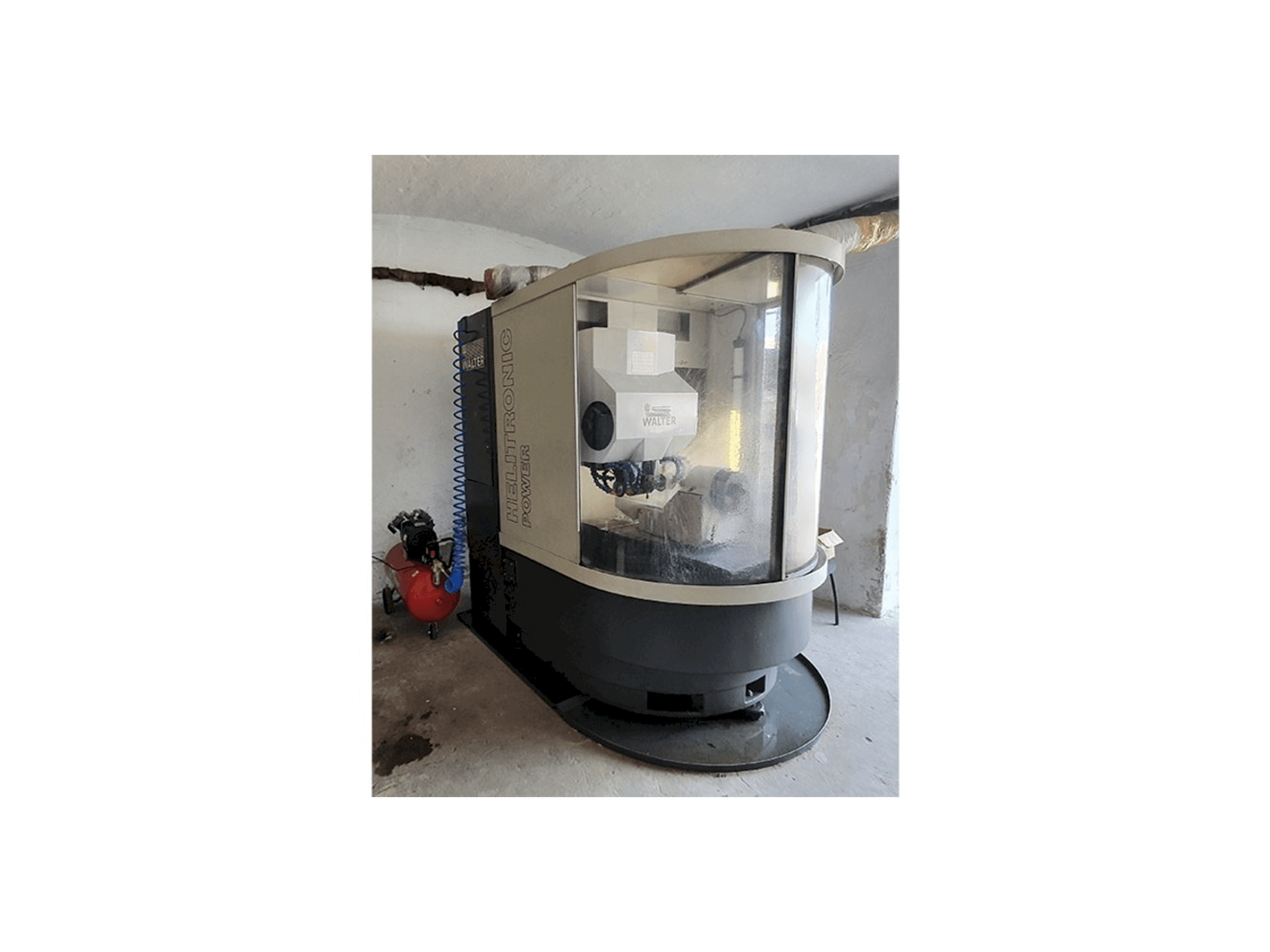

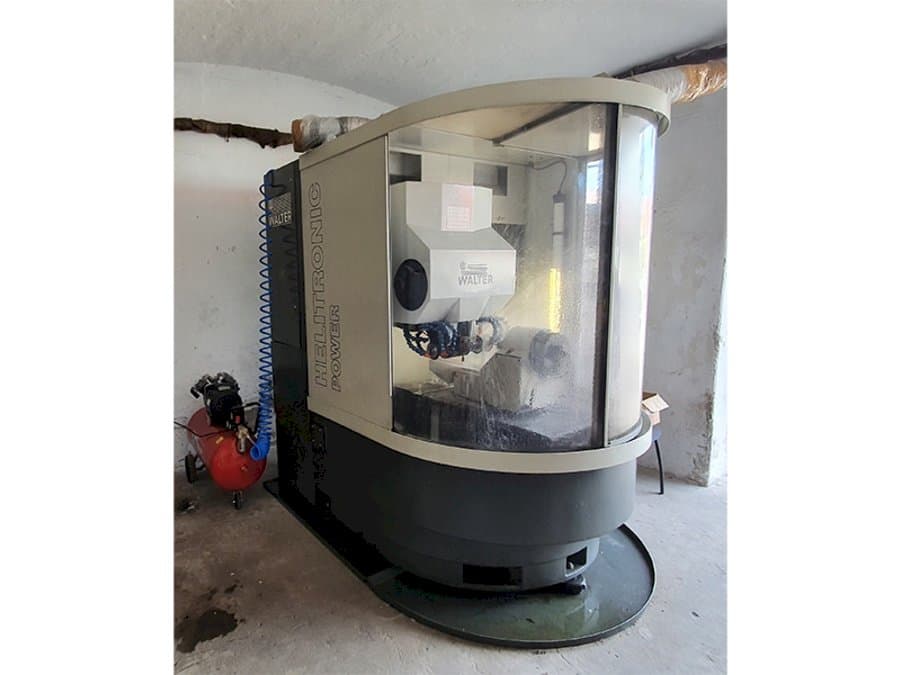

This Walter Helitronic Power Grinding Machine was manufactured in Germany in 1996. It has been working for 41423 hours. This 5 axis machine is operated through a WALTER HMC 400 WWM control unit. It can work with a spindle speed up to 10500 rpm. Machine in good working condition, ready for tests. Full documentation available.

Overview

brand: WALTER
year: 1996
MODEL: Helitronic Power
production hours: 41423
application type: Grinding
Location: Poland
machine type: Grinding Machine
availability: Sold

Technical Information - WALTER Helitronic Power

General Data

Measurements width: 2010 mm
Measurements depth: 1420 mm
Measurements height: 2150 mm
Machine weight: 3100 KG

Control Unit

Model: HMC 400 WWM

Main drive

Spindle speed range: 10500 1/MIN
Number of axis: 5

Movement

X-AXIS Movement: 400 mm
Y-AXIS Movement: 250 mm
Z-AXIS Movement: 580 mm

Media

Main electronic connection: 400V / 50Hz
Power consumption: 15 kVA

Additional Information

Machine Benefits

Technical Machine Benefits:
- - X / y / z - axes resolution: 0. 0001 mm
- - X / y / z - axes speed: 15 m/min
- - A - axis rotation of workpieces: 360 degrees/endless
- - A - axis resolution: 0. 0001 deg.
- - A - axis rotation speed: 120 rpm
- - A - axis max workpiece dim. : 190 mm
- - C - axis max length of rotary table: 300 mm
- - C - axis swivel range +/- 200 deg.
- - C - axis resolution: 0. 0001 deg.
- - C - axis speed: 120 deg/sec.
Qualitative Machine Benefits:
- - Center height: 130 / 165 mm
- - Grinding spindle dia. : 70 mm
- - Max grinding wheel dia. : 200 mm
- - Workpiece holder iso 50
- - Spindle motor power 4. 4 kw/ 3000 rpm, 4. 2 kw/ 6000 rpm
- - Control unit with 14” screen
- - Machine in good working condition, ready for tests
- - Full documentation available

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
