Victor Vcenter-70APC Vertical Machining center

Show in original language

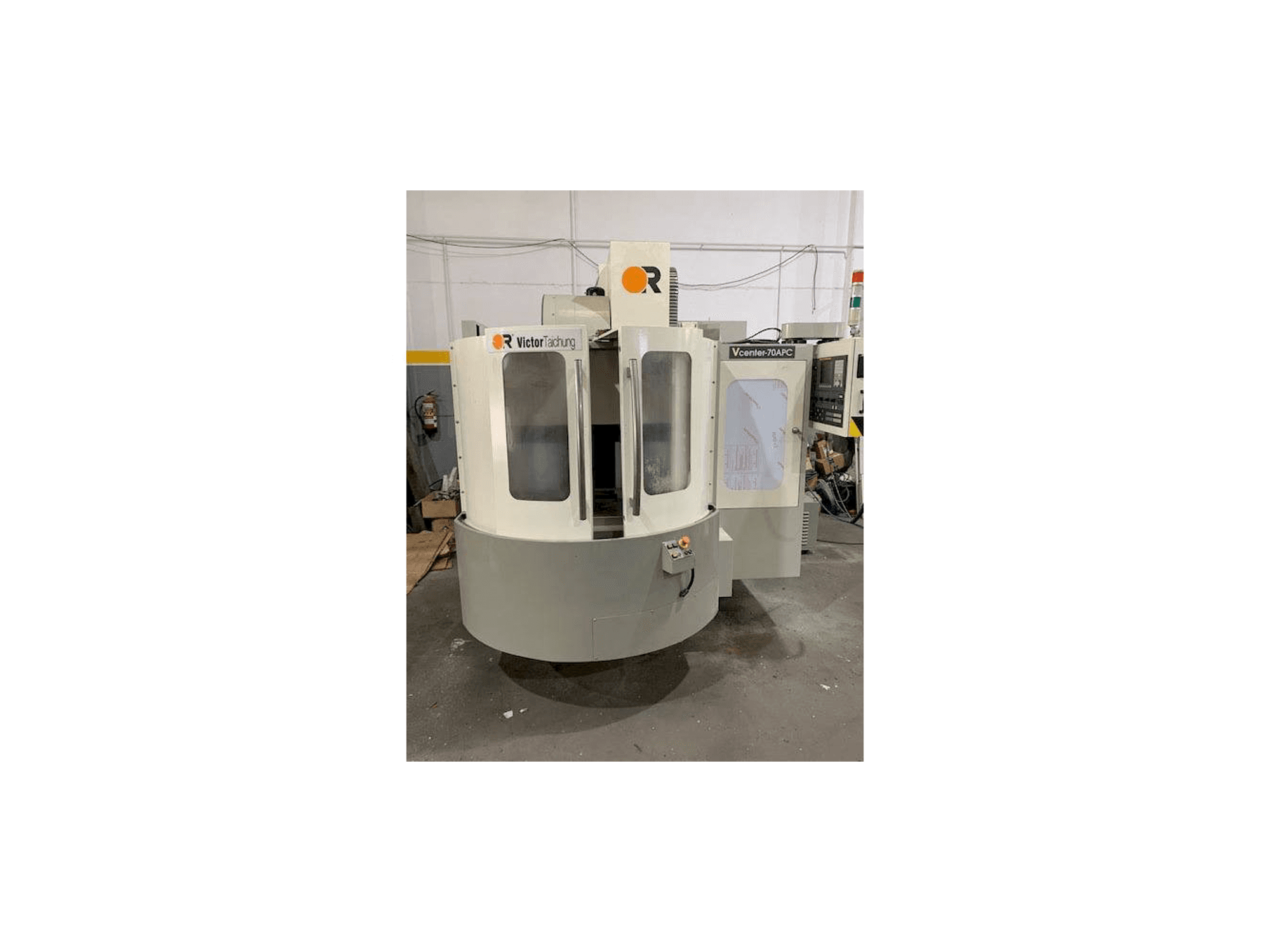

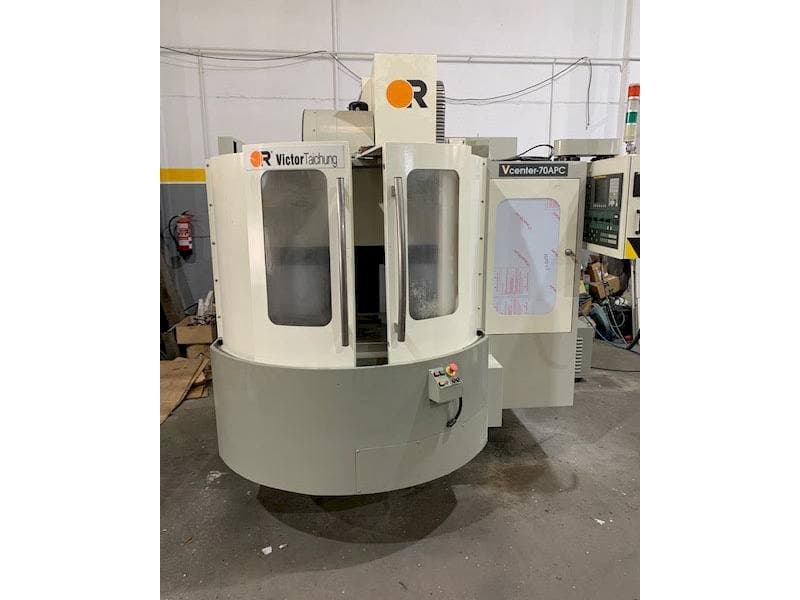

This Victor Vcenter-70APC Vertical Machining center was manufactured in the year 2007 in Taiwan. It is controlled by a Fanuc Series Ou-MC control unit and has 3 axis. The machine has a spindle speed of 8000 rpm. This machine has head repaired, Z-Spindle, telescopic with new wiper blades and the grippers of the changing arm also repaired. Includes an internal cooling, new bearings and new tie rod springs.

Overview

brand: Victor
year: 2007
MODEL: Vcenter-70APC
application type: Milling
Location: Spain
machine type: Vertical Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - Victor Vcenter-70APC

Control Unit

Model: Series Ou-MC
Brand: FANUC

Main drive

Spindle speed range: 8000 1/MIN
Number of axis: 3

Movement

X-AXIS Movement: 700 mm
Y-AXIS Movement: 480 mm
Z-AXIS Movement: 510 mm

Table

Outer length: 800 mm
Outer width: 460 mm

Tools

Slots in storage: 24
Type of tool holder: BT-40

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Head repaired
- - New bearings
- - New tie rod springs
- - Balanced shaft grinding
- - Z-spindle repaired
- - Repaired telescopic with new wiper blades
- - Repaired the grippers of the changing arm
- - Internal cooling
Qualitative Machine Benefits:
- - Good status
- - Fully revised

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
