Victor Vcenter-102

Show in original language

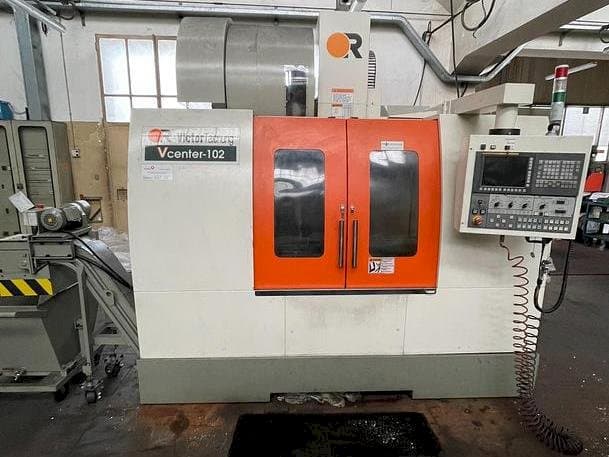

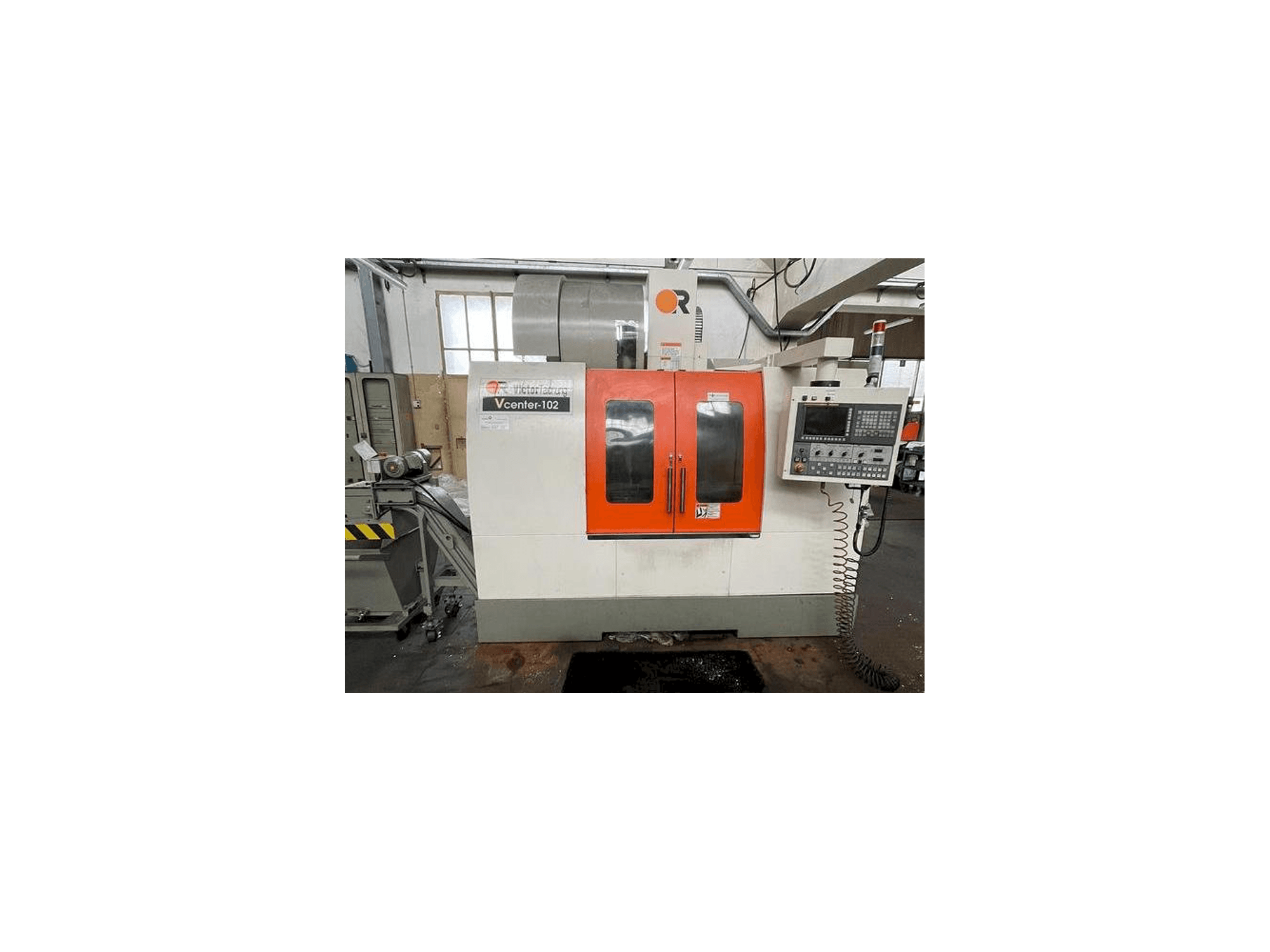

This Victor Vcenter-102 Vertical Machining Center was manufactured in 2018. It is equipped with a FANUC Series 0I control unit. This 3 axis machine operates with a spindle speed up to 6000 rpm and a high pressure system through the 20 BAR spindle that includes an additional tank. It is in excellent condition, complete with electronic handwheel, air conditioner on the spindle line, electrical cabinet, ethernet and usb card. This machine is supplied with a BT50 spindle kit and presents its manual guide.

Overview

brand: Victor
year: 2018
MODEL: Vcenter-102
application type: Milling
Location: Italy
machine type: Vertical Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - Victor Vcenter-102

Control Unit

Model: Series 0I
Brand: FANUC

Main drive

Spindle speed range: 6000 1/MIN
Number of axis: 3

Table

Outer length: 100 mm
Outer width: 510 mm

Tools

Type of tool holder: BT 50

Media

Chip conveyor: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Axis x (strokes) 1020 mm
- - Y axis (strokes) 600 mm
- - Z axis (strokes) 560 mm
- - Aicc-2 200 blocks + vss macro
- - Maximum tool magazine capacity 24
- - High pressure system through the 20 bar spindle with additional tank
Qualitative Machine Benefits:
- - Manual guide

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
