➤ Used VESTA FD2432A HE For Sale | gindumac.com

Show in original language

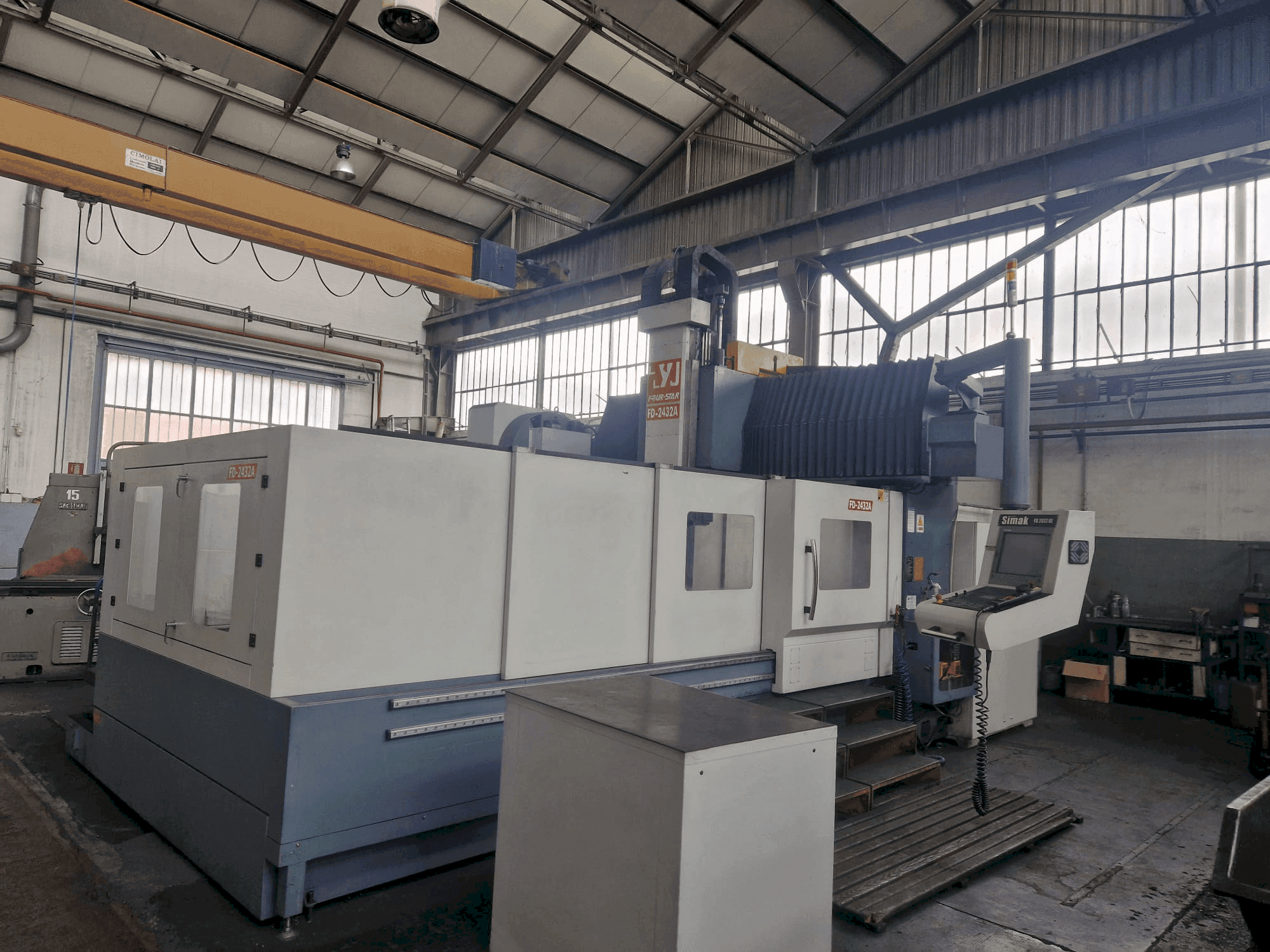

This 3-axis VESTA FD2432A HE gantry milling machine was manufactured in 2013. Ideal for precision milling applications, it offers robust construction and reliable performance. Consider the opportunity to buy this VESTA FD2432A HE gantry milling machine. Contact us for more information.

Overview

brand: VESTA
year: 2013
MODEL: FD2432A HE
application type: Milling
Location: Germany
machine type: Gantry Milling Machine
availability: Immediately
control unit brand: HEIDENHAIN

Technical Information - VESTA FD2432A HE

General Data

Measurements width: 2200 mm
Measurements depth: 3300 mm
Measurements height: 4500 mm
Machine weight: 32000 kg

Control Unit

Brand: HEIDENHAIN
Model: i tnc 530hsci

Main drive

Spindle speed range: 10000 rpm 1/MIN
Number of axis: 3

Movement

X-AXIS Movement: 3200 mm
Y-AXIS Movement: 2400 mm
Z-AXIS Movement: 800 mm

Additional equipment

- Chuck Connection: BT 50
- Machine Type: Gantry
- Machine Conditions: CE Marked

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Table dimensions (x-y): 3300 x 2200 mm
- - Tool magazine: yes
- - Number of inserts in the tool magazine: 24

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
