➤ Used URBAN PF 6500 For Sale | gindumac.com

Show in original language

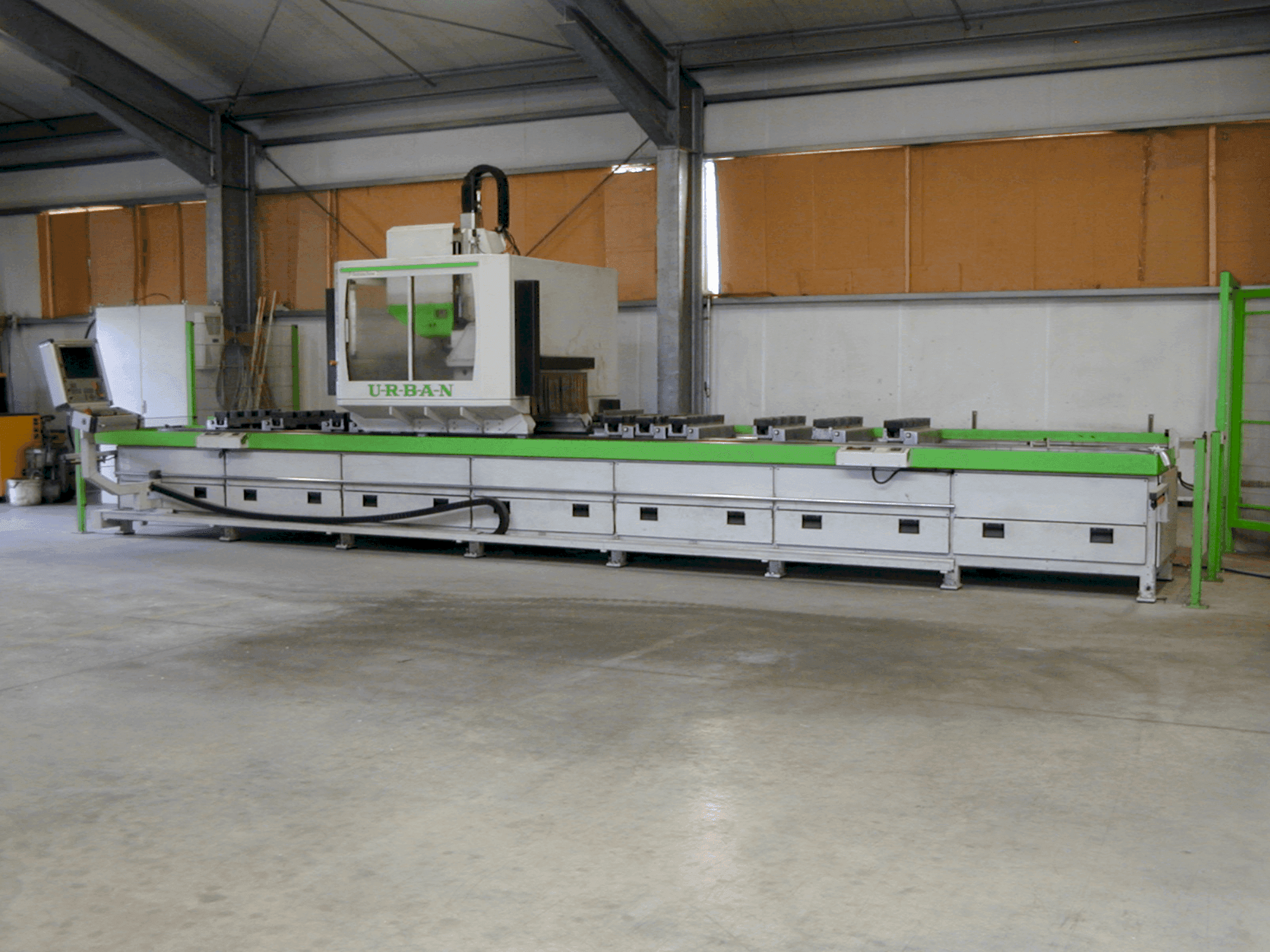

This 3-axis URBAN PF 6500 milling machine was manufactured in 2009. It features a Heidenhain ITNC 620 CNC control, a 12-position tool changer, and a spindle capable of 6000 rpm. The machine offers a machining length of 6500 mm and supports a table load of up to 500 kg/m. Additional features include a special hydraulic/pneumatic clamping unit and safety fencing. A great opportunity to buy this URBAN PF 6500 milling machine. Contact us for further details regarding this milling machine.

Overview

brand: URBAN
year: 2009
MODEL: PF 6500
application type: Milling
Location: Germany
machine type: Universal Machining Centre
availability: Immediately
control unit brand: HEIDENHAIN

Technical Information - URBAN PF 6500

General Data

Machine weight: 6500 kg

Control Unit

Model: ITNC 620
Brand: HEIDENHAIN

Main drive

Number of spindles: 1
Spindle speed range: 6000 rpm 1/MIN
Spindle motor power: 5.5 kW
Tool taper: SK40
Number of axis: 3

Movement

X-AXIS Movement: 6670 mm
Y-AXIS Movement: 695 mm
Z-AXIS Movement: 585 mm

Table

Table load: 500 kg

Additional equipment

- Heidenhain HR130 handwheel: Yes
- Control panel: Can be moved along the entire length
- Tool cooling: By compressed air/cold air down to -20°C
- Automatic central lubrication system: Yes
- Chip tray: With 6 drawers
- Safety fencing: Yes
- Special hydraulic/pneumatic clamping unit: 2x4-fold for bar and profile processing
- Quick clamping units: 6 4-fold per side
- Pendulum operation: 2 working areas with 2650 mm processing length each
- Tool Changer: 12-position tool changer with disc magazine

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Clamping stroke: 55 mm
- - Clamping range: 28-80 mm
- - Safety zone: 1200 mm
- - Long machining length of 6500 mm, tool cooling by compressed air/cold air down to -20°c, pendulum operation with 2 working areas for increased efficiency
Qualitative Machine Benefits:
- - Precision control with heidenhain itnc 620, enhanced safety with safety fencing and safety zone

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
