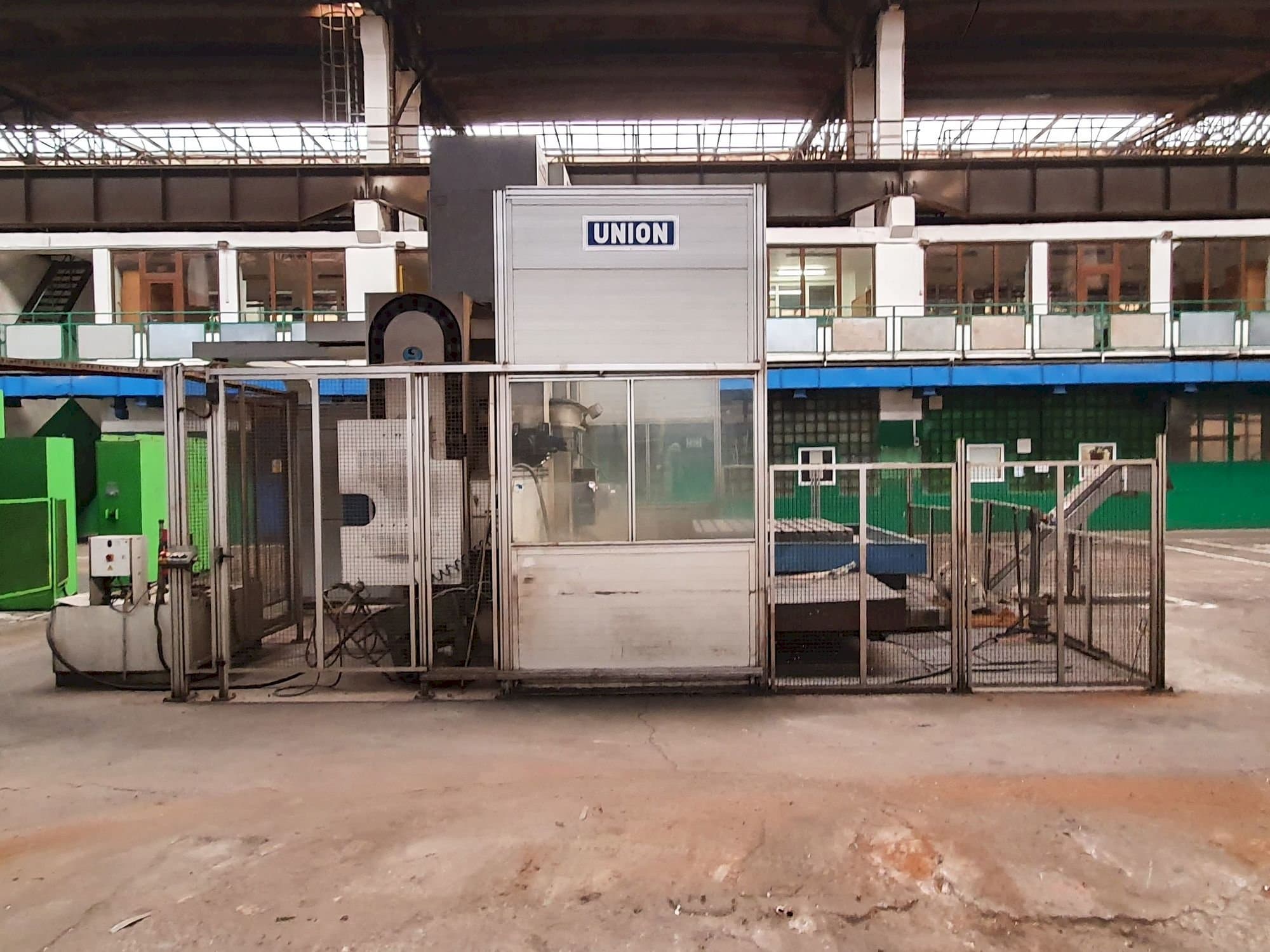

This Union TC130/1 -iTNC530 Milling Machine

Show in original language

This Union TC130/1 -iTNC530 Milling Machine was manufactured in 2005. It has a spindle speed up to 3000 rpm. This 5 axis machine operates through a HEIDENHAIN TNC 500 Series control unit. This machine is in very good, working condition. It has full service and operating documentation available. The machine comes from a plant that has been closed.

Overview

brand: UNION
year: 2005
MODEL: TC130/1 -iTNC530
application type: Milling
Location: Poland
machine type: Gantry Milling Machine
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - UNION TC130/1 -iTNC530

General Data

Measurements width: 8500 mm
Measurements depth: 10500 mm
Measurements height: 5800 mm
Machine weight: 40000 KG

Control Unit

Model: TNC 500 Series
Brand: HEIDENHAIN

Main drive

Spindle speed range: 3000 rpm 1/MIN

Movement

X-AXIS Movement: 2500 mm
Y-AXIS Movement: 2500 mm
Z-AXIS Movement: 1500 mm
W-Axis Movement: 750 mm

Table

Outer length: 1600 mm
Outer width: 2000 mm
Table load: 10000 kg

Media

Main electronic connection: 400V / 50Hz
Power consumption: 90 kVA
Chip conveyor: Yes
Internal cooling: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - W axis travel: 750 mm
- - B axis travel: 360 degrees
- - Travel speed y/w: 1 - 6. 000 mm/min
- - Max. Travel speed y/w/z/x: 15 m/min
- - Milling head: emena v4
- - Spindle dim. : 130 mm
- - Spindle taper: iso 50
- - Tool magazine: 40 pcs
- - Max tool dim. 125mm / 250 mm
- - Max tool weight: 30 kg
Qualitative Machine Benefits:
- - Max tool length: 500 mm
- - Machine in very good, working condition.
- - Full service and operating documentation available
- - The machine comes from a plant that has been closed

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
