TSCHUDIN HTG 430 Grinding Machine

Show in original language

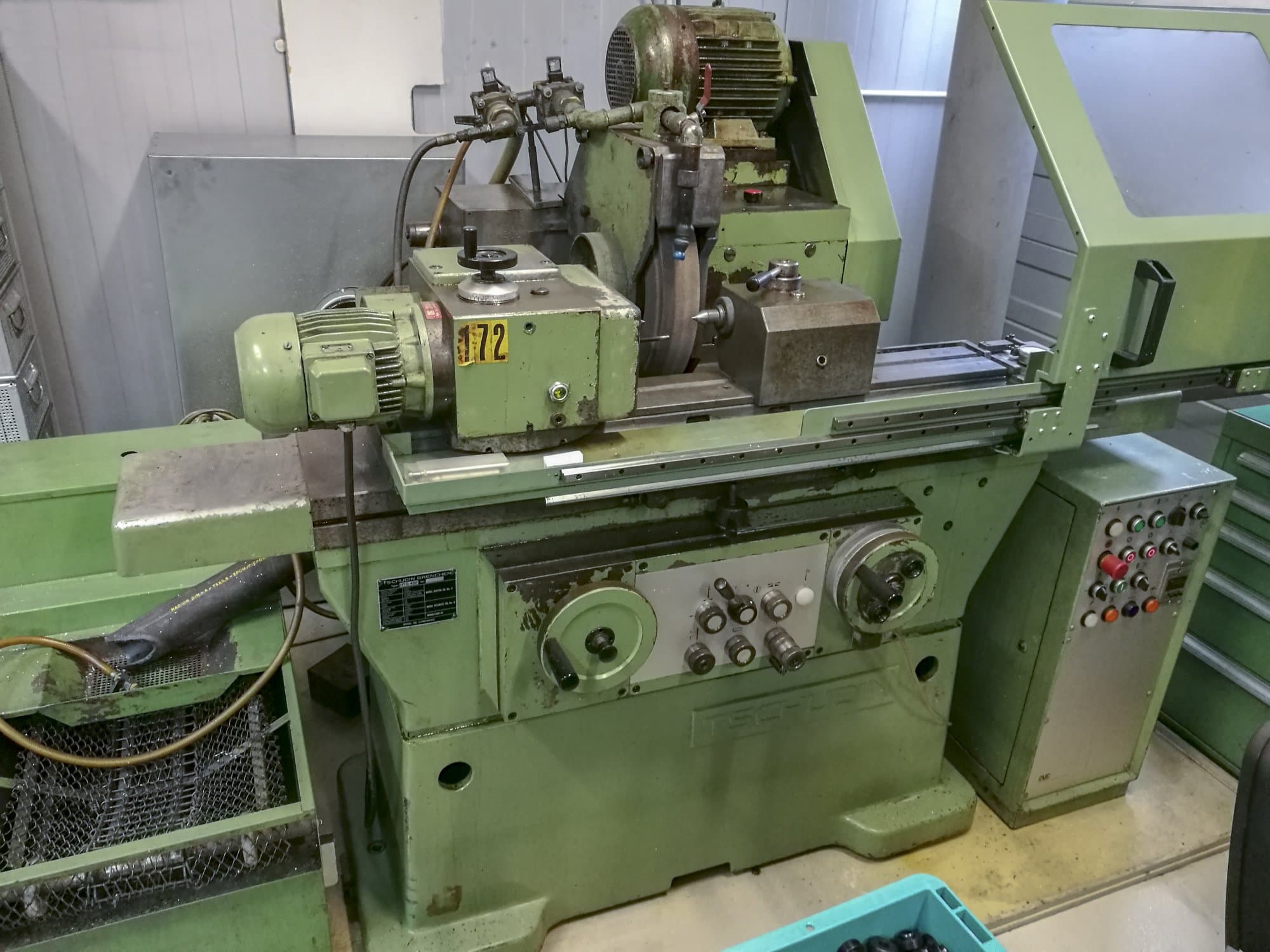

This TSCHUDIN HTG 430 Grinding Machine from Switzerland was manufactured in 1974 and has a working record of approximately 40000 production hours. This model got its bearings replaced in 2012 and equipped with a new protection screen in 2016. During the past, this HTG 430 was working with steel supplying the automotive industry.

Overview

brand: TSCHUDIN
year: 1974
MODEL: HTG 430
production hours: 40000
application type: Grinding
Location: Germany
machine type: Centerless Grinding Machine
availability: Sold

Technical Information - TSCHUDIN HTG 430

General Data

Measurements width: 1860 mm
Measurements depth: 1470 mm
Measurements height: 1450 mm
Machine weight: 2600 kg

Main drive

Spindle speed range: 1290/1490 1/min

Tools

Max tool diameter: 450 mm

Media

Power consumption: 5.5 kW
Internal cooling: Yes

Additional equipment

- 3x Grinding Disk

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
