Trotec - SpeedMarker 1300DE-OTH-TRO-2022-00001
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
- GINDUMAC
- Products
- Sheet Metal Machinery
- ➤ Used Trotec SpeedMarker 1300 For Sale | gindumac.com

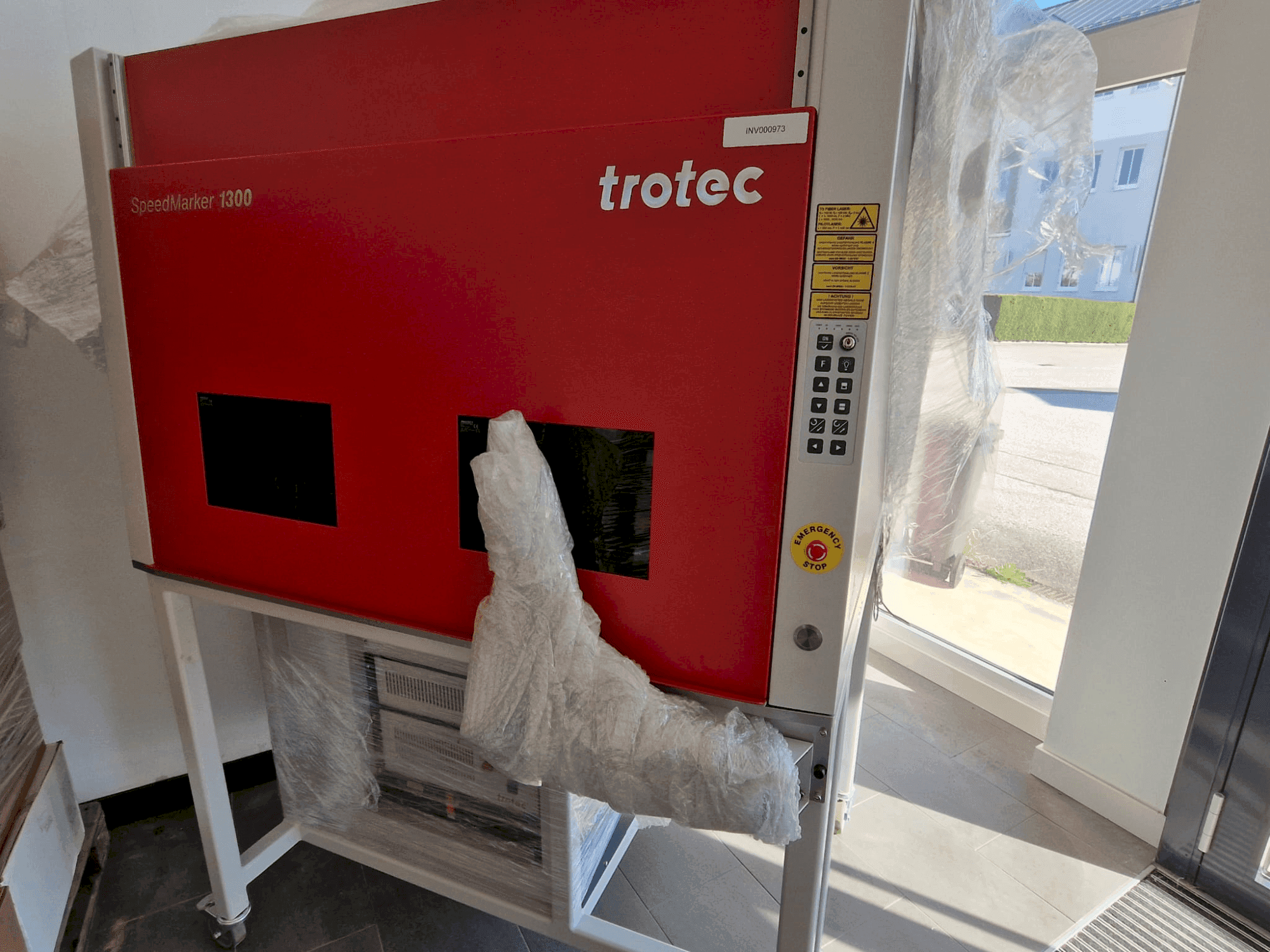

This Trotec SpeedMarker 1300 was manufactured in 2022. It's a laser marking machine designed for precision and efficiency in various marking applications. If you are looking to get high-quality marking capabilities, consider the Trotec SpeedMarker 1300 machine we have for sale. Contact us for more information about this machine.
Overview
- brand: Trotec
- year: 2022
- MODEL: SpeedMarker 1300
- application type: Other Sheet Metal Machinery
- Location: Germany
- machine type: Laser Marking Machine
- availability: Immediately
Technical Information - Trotec SpeedMarker 1300
Media
- Main electronic connection: 230VAC / 16A / 50-60 Hz
- Power consumption: 500 W
Additional equipment
- - Pilot laser 650 mm / < 1 mW for focus adjustment to display the labelling field
Additional Information
- Technical Machine Benefits:
- - Air cooling
- - Speedmark software package with graphical user interface
- - Temperature: 15 - 35° c
- - Humidity: 85%, non-condensing
- - Laser power: available in 20w and 100w laser powers
- - Flat field lens f254 with marking field: x=1000 mm x y=450 mm
- - Max. Workpiece height: 303 mm
- - F = 100 mm, labelling field 70 x 70 mm
- - F = 160 mm, labelling field 120 x 120 mm
- - F = 254 mm, labelling field 190 x 190 mm
- - General Data Laser Beam Sources: Wavelength: 1065 ± 5 nm Power: 20W Laser Protection Class: 4 Scan Head: Galvanometer deflection unit Standard Equipment: Planar field objective F-Theta 160 mm Labelling field approx. 120 x 120 mm Control Unit Laser Control Interface: Ready for operation, laser start, laser marking completed, laser emission, emergency off Safety shutdown
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
