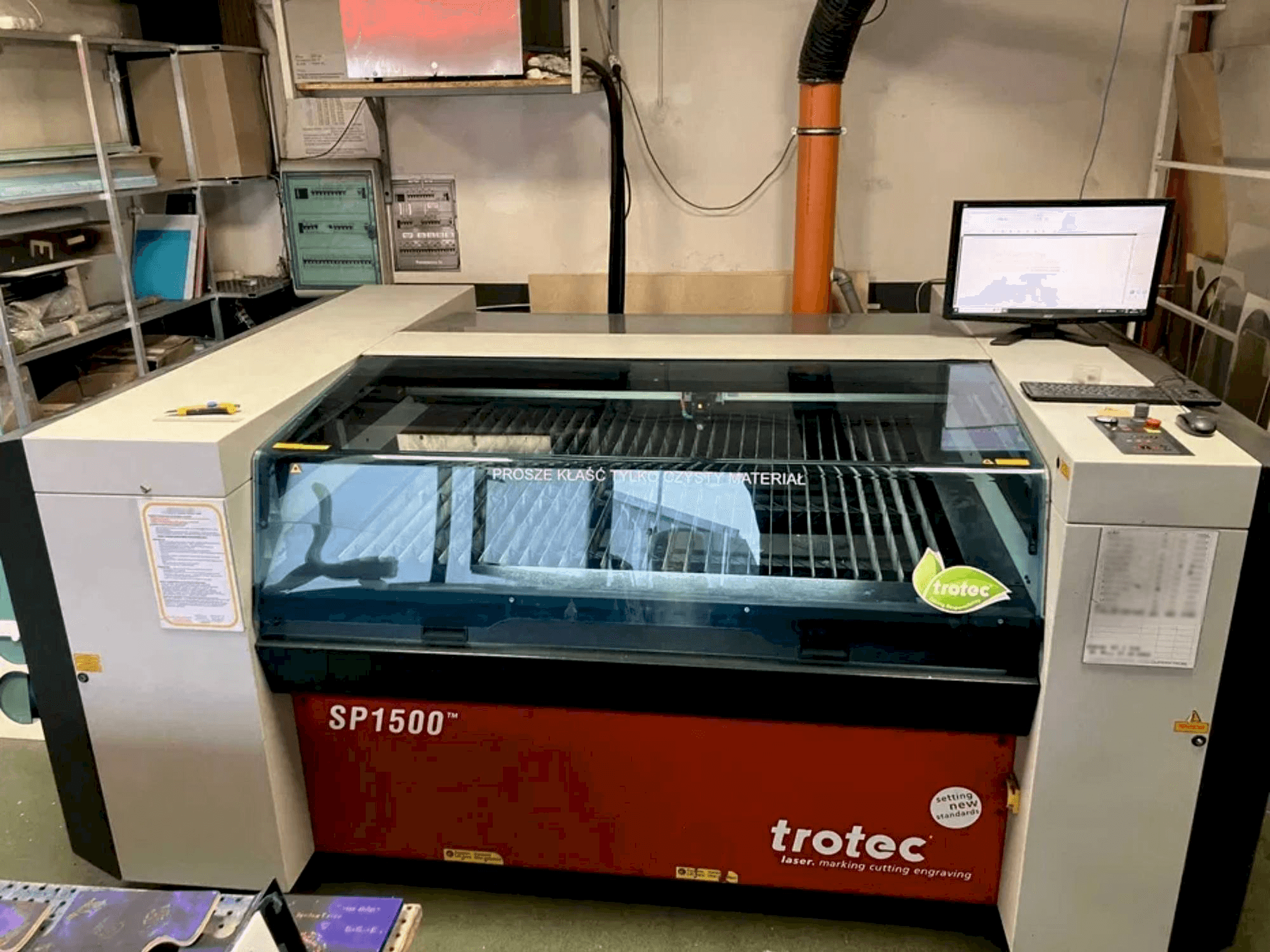

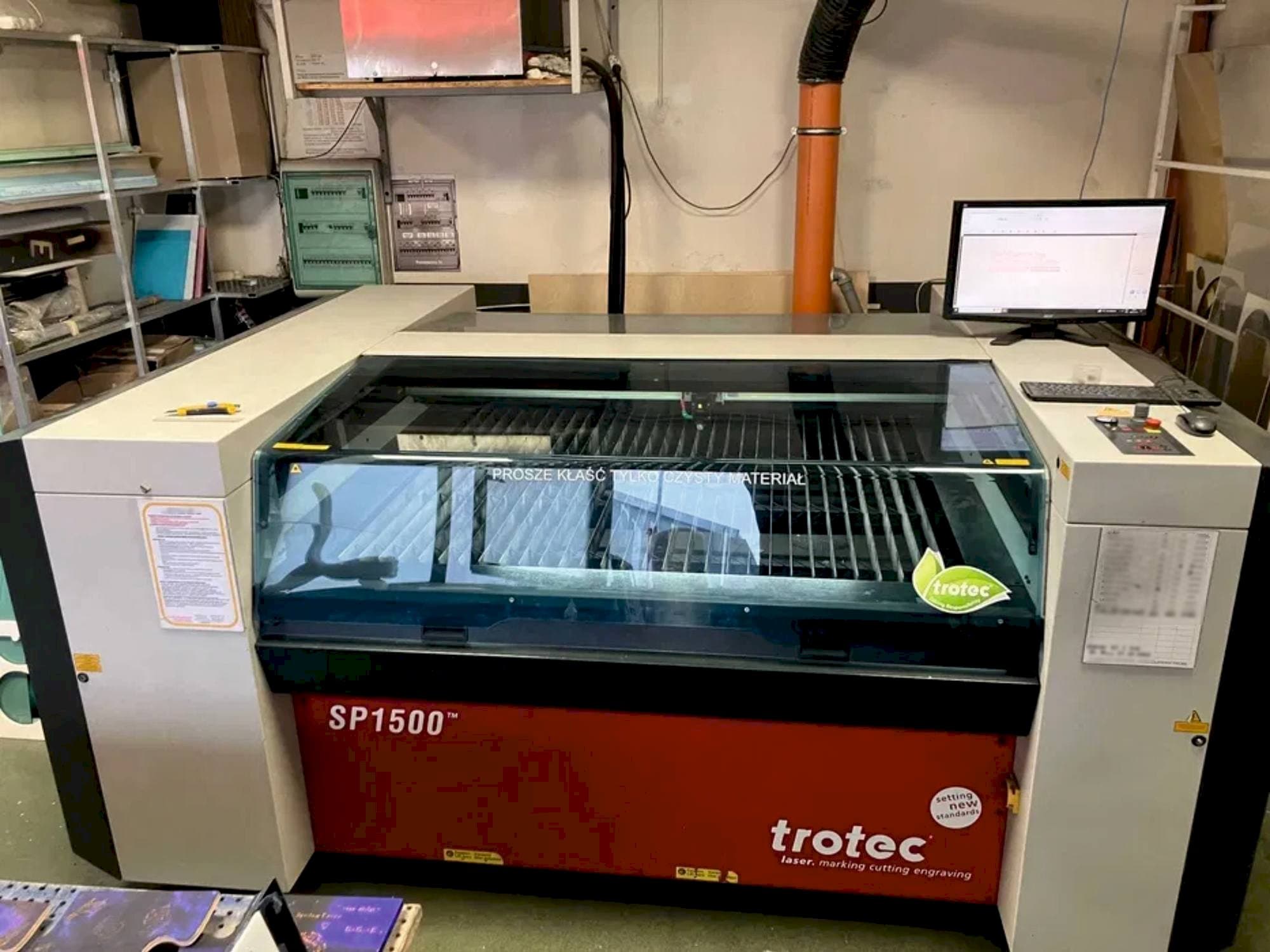

Trotec SP1500 Laser cutting machine

Show in original language

This Trotec SP1500 Laser cutting machine was made in the year 2016 in Austria and has 5637 hours of which 2644 are laser hours. It is equipped with a Trotec control unit. The machine has a laser power of 200W and a working area of 1500 x 1250 mm. The machine is in good condition, ready for tests and full documentation is available.

Overview

brand: Trotec
year: 2016
MODEL: SP1500
production hours: 5637
application type: Cutting
Location: Poland
machine type: CO2 Laser Cutting Machine
availability: Sold

Technical Information - Trotec SP1500

General Data

Measurements width: 2830 mm
Measurements depth: 2040 mm
Measurements height: 1293 mm
Machine weight: 1300 kg

Main drive

Laserpower: 0,2kW
Laser type: SYNRAD FSF201SC CO2 RF

Table

Table load: 25 kg

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Lens 2. 5” – new
- - Working area 1500 x 1250 mm
- - Loading area 1700 x 1600 mm
- - Max. Height of work piece: 40 / 53 / 75 mm (3 worktable levels) and 185 mm with table removed
- - Work piece table cutting table with removable slats
- - Max. Processing speed 1,65 m/s
- - Acceleration 9,55 m/s²
- - Motors brushless dc servo motors
- - Position sensor incremental encoder
- - Optical elements lens and all mirrors air-flushed
Qualitative Machine Benefits:
- - Repeatability <± 30 µm across the entire working area
- - Addressable accuracy 3 µm
- - Exhaust travelling and table exhaust
- - Software jobcontrol expert + trocam basic
- - Interface usb for connection with control pc
- - External cooling
- - The machine is in good condition and ready for tests
- - Full documentation available

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
