TRENS MC100VA Vertical Machining Center

Show in original language

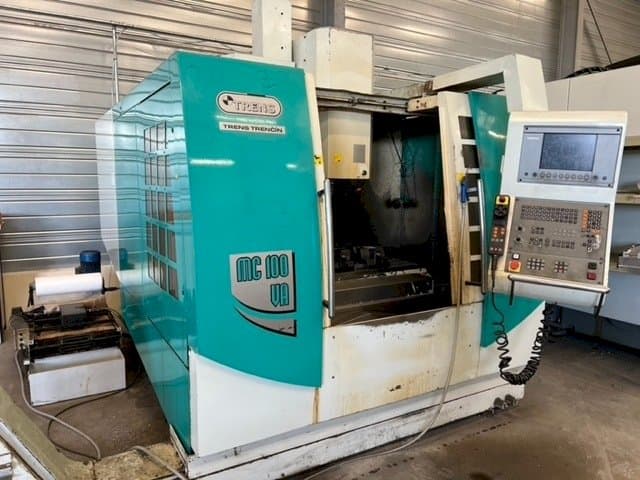

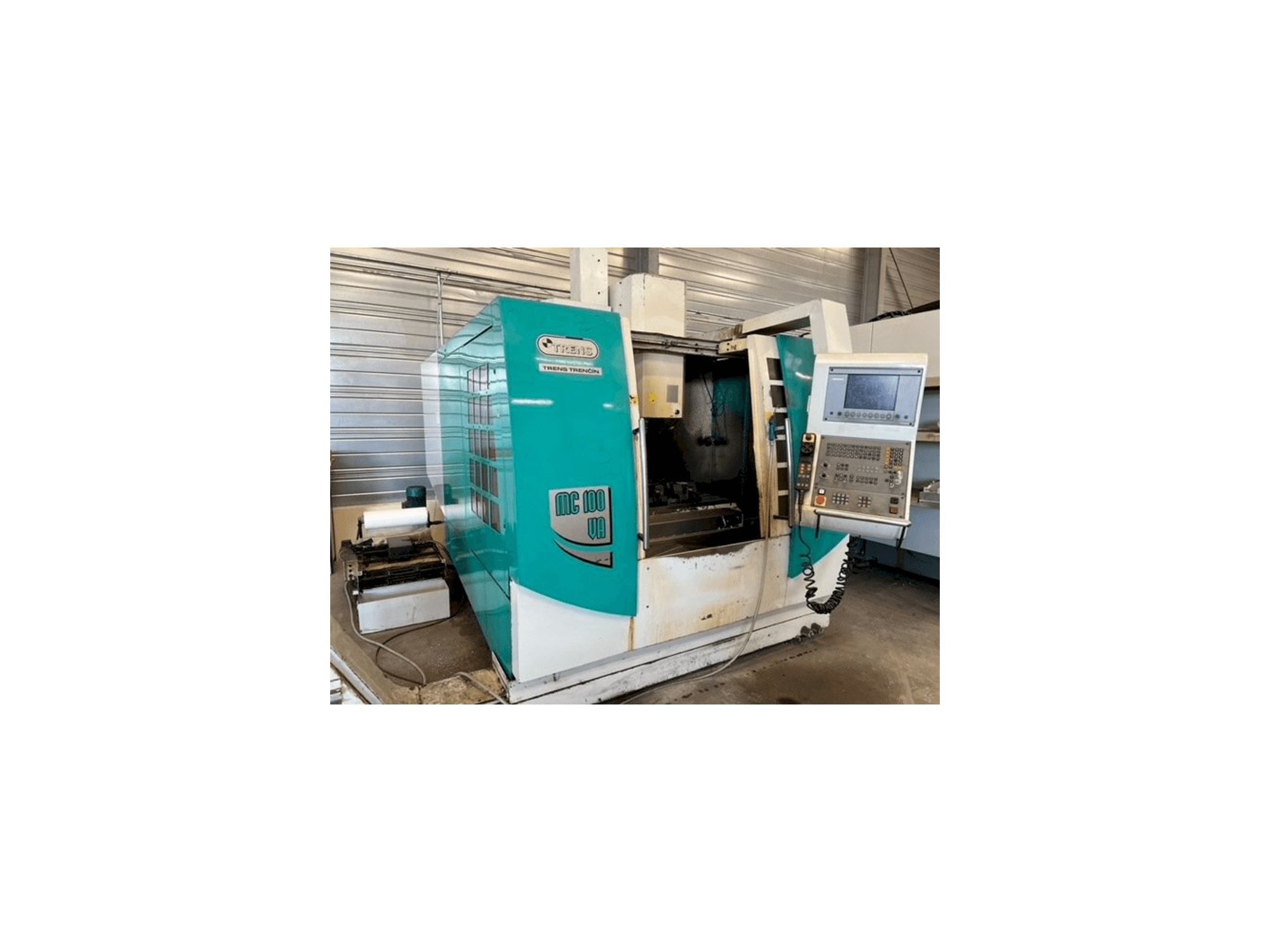

This TRENS MC100VA Vertical Machining Center was built in the year 2001 in Slovakia. This 3 axis machine is equipped with a Heidenhain TNC426 control unit. This machine can work with a spindle speed up to 8000 rpm. It comes with an important set of tool and tool holders.

Overview

brand: TRENS
year: 2001
MODEL: MC100VA
application type: Milling
Location: France
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - TRENS MC100VA

General Data

Measurements width: 3280 mm
Measurements depth: 2260 mm
Measurements height: 2950 mm
Machine weight: 6200 kg

Control Unit

Model: TNC426
Brand: HEIDENHAIN

Main drive

Spindle speed range: 8000 1/MIN
Spindle motor power: 11 kW
Number of axis: 3

Movement

X-AXIS Movement: 1000 mm
Y-AXIS Movement: 610 mm
Z-AXIS Movement: 762 mm

Table

Outer length: 1080 mm
Outer width: 580 mm
Table load: 1000 kg

Media

Chip conveyor: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Spindle taper: iso 40
- - Tool magazine: 40 positions
- - Paper filtration sprinkler system
- - Important set of tool and tool holders
- - 2 vices

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
