TOYODA - FH 63SAT-MIL-TOY-2002-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

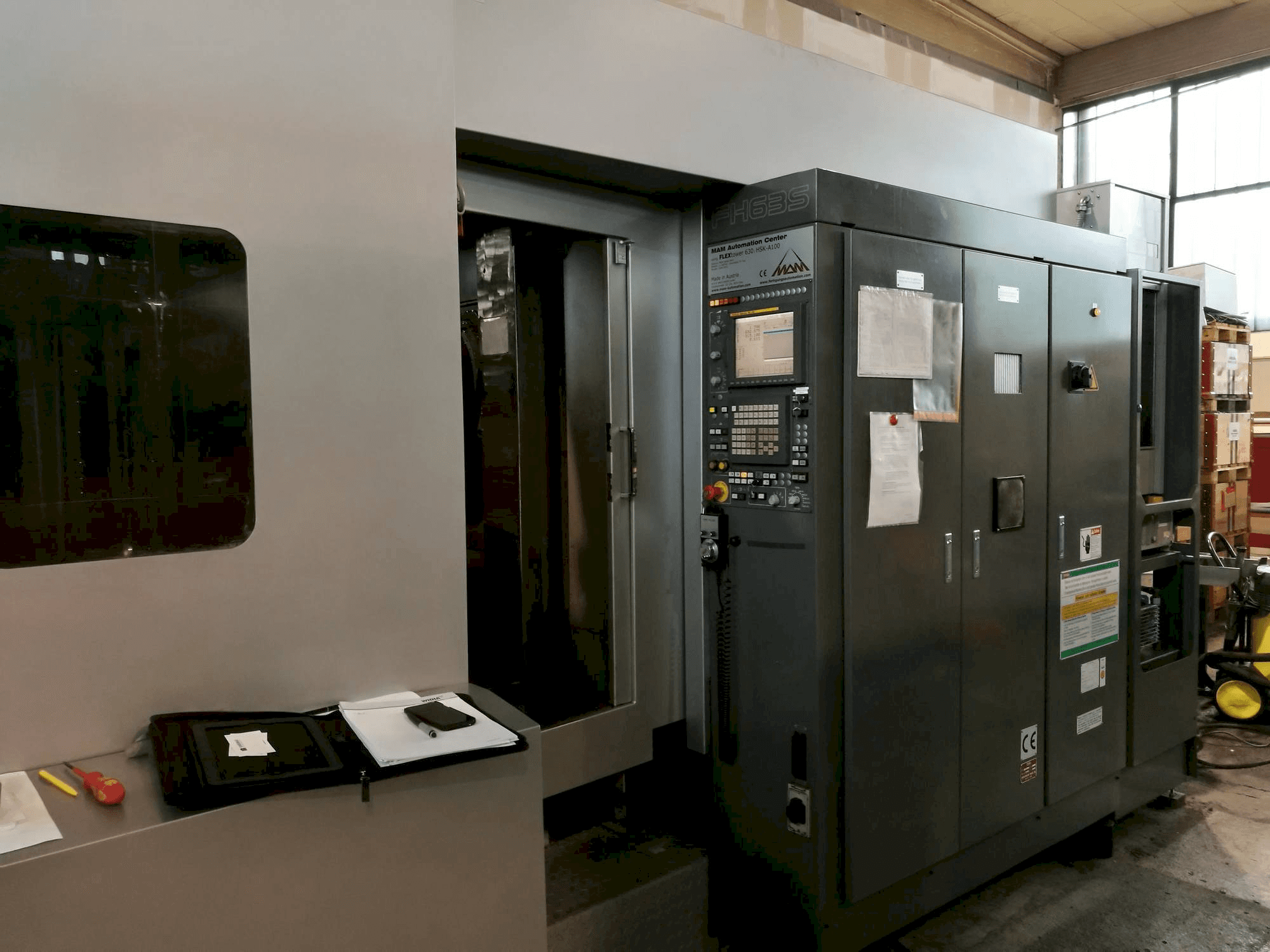

TOYODA FH 63S Vertical Machining Center

Show in original language

This TOYODA FH 63S Vertical Machining Center was manufactured in the year 2002 in Japan. It has a production history of only 12234 working hours. It is operated through a Fanuc Series 16i-M control unit. It can work with a spindle speed up to 6000 rpm. It includes a linear automation available for an extra cost. This machine is in perfect conditions, as it has been well serviced.

Overview

brand: TOYODA
year: 2002
MODEL: FH 63S
production hours: 12234
application type: Milling
Location: Austria
machine type: Vertical Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - TOYODA FH 63S

General Data

Measurements width: 3550 mm
Measurements depth: 6050 mm
Measurements height: 3561 mm
Machine weight: 16000 kg

Control Unit

Model: Series 16i-M
CNC main language: German
CNC language customizable: Yes
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 6000 1/MIN

Movement

X-AXIS Movement: 1000 mm
Y-AXIS Movement: 850 mm
Z-AXIS Movement: 750 mm
B-AXIS Movement: 360° - 1°adjustable automatic MM

Workpiece

Workpiece drm: 1000 mm
Workpiece z: 1000 mm
Workpiece weight: 1300 kg

Tools

Slots in storage: 170
Type of tool holder: HSK100 A

Media

Main electronic connection: 3x400 V
Chip conveyor: Yes
Internal cooling: Yes

Additional equipment

- Automation (23m, 32 630x630 paletts, 20 clamping units)- upon request
- 120 HSK100 Toolholders
- High Pressure Coolant 170 bar

Additional Information

Machine history

Material type: Steel
End product: Demo parts
Industries: Automation

Machine Benefits

Technical Machine Benefits:
- - Flat guides
- - Very stable
- - Castes basic
- - 12 seconds tool change time
Qualitative Machine Benefits:
- - Used just as demo the last 10 years
- - Very little working hours
- - Perfect conditions
- - Well serviced

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
