- TOS WHN 13 CNC Boring machine

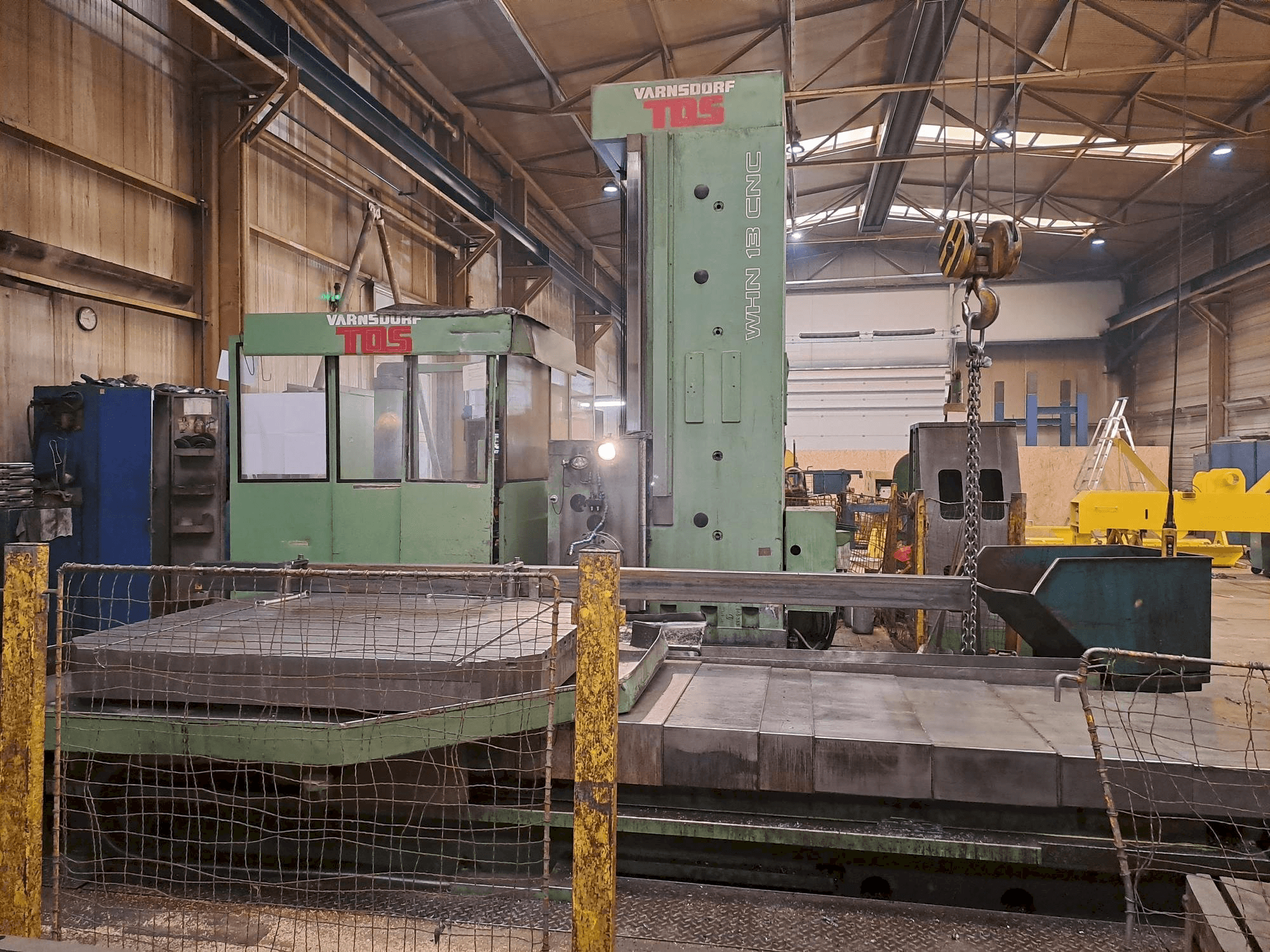

This TOS WHN 13 CNC Boring machine was manufactured in the year 2004 in the Czech Republic and has 43725 production hours, of which 16210 are spindle hours. It is equipped with a Heidenhain iTNC 430 control unit and has 3 axis. The machine has a spindle speed of 3000 rpm, is in good condition, and is well maintained.
Overview
- brand: TOS
- year: 2004
- MODEL: WHN 13 CNC
- production hours: 43725
- application type: Other Machine Tools
- Location: Czech Republic
- machine type: Boring Machine (Metal)
- availability: Sold
- control unit brand: Heidenhain
Technical Information - TOS WHN 13 CNC
General Data
- Machine weight: 39000 kg
Control Unit
- Brand: Heidenhain
- Model: iTNC 430
Main drive
- Number of spindles: 1
- Spindle speed range: 3000 1/MIN
- Number of axis: 3
Movement
- X-AXIS Movement: 3500 mm
- Y-AXIS Movement: 2000 mm
- Z-AXIS Movement: 1250 mm
Workpiece
- Workpiece weight: 12000 kg
Table
- Outer length: 1800 mm
- Outer width: 2200 mm
Tools
- Type of tool holder: ISO 50
Additional Information
- Technical Machine Benefits:
- - Spindle motor power 41 kw (s1)
- - Spindle torque 2508 nm (s1)
- - Spindle stroke (w) 800 mm
- Qualitative Machine Benefits:
- - Good condition
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
