TOS WH 10 CNC Boring machine

Show in original language

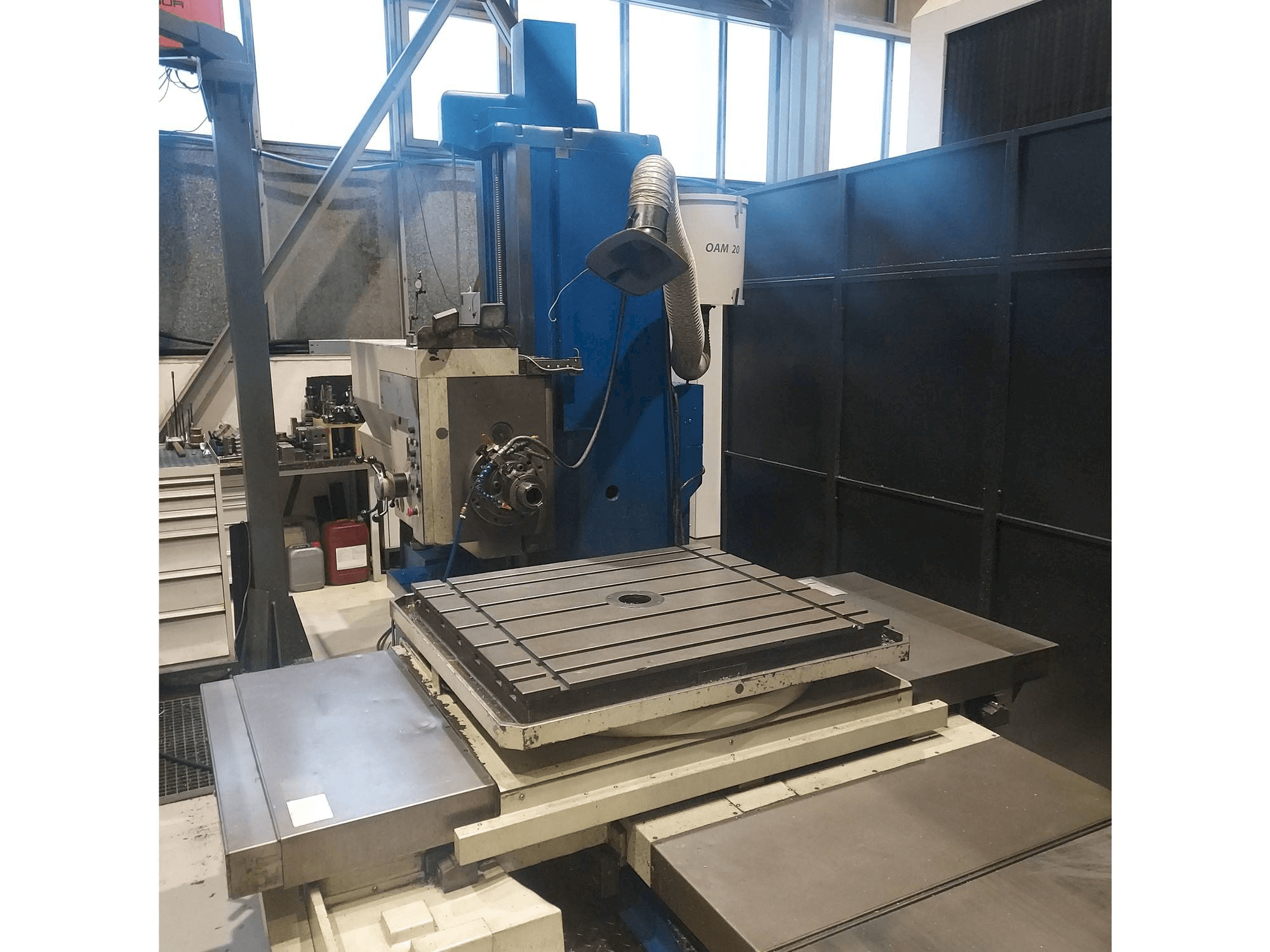

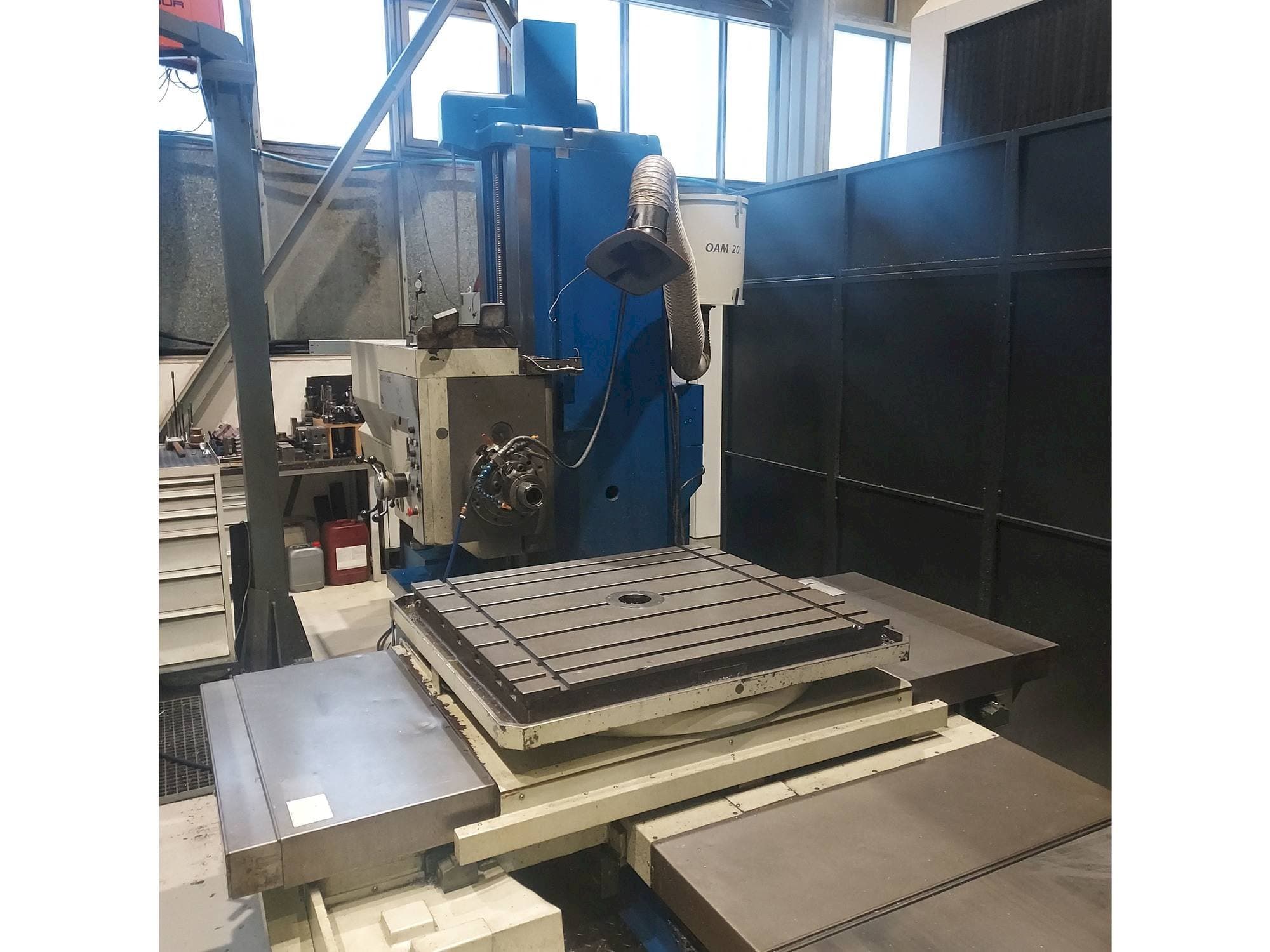

This TOS WH 10 CNC Boring machine was manufactured in the year 2012 in Czech Republic. It is equipped with a Heidenhain 320 control unit and has 5 axis. The machine has a spindle speed of 1250 rpm.

Overview

brand: TOS
year: 2012
MODEL: WH 10 CNC
application type: Other Machine Tools
Location: Czech Republic
machine type: Boring Machine (Metal)
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - TOS WH 10 CNC

General Data

Measurements width: 6130 mm
Measurements depth: 3600 mm
Measurements height: 2750 mm
Machine weight: 13400 kg

Control Unit

Brand: HEIDENHAIN
Model: 320

Main drive

Number of spindles: 1
Spindle speed range: 1250 1/MIN
Number of axis: 5

Movement

X-AXIS Movement: 1250 mm
Y-AXIS Movement: 900 mm
Z-AXIS Movement: 1000 mm

Workpiece

Workpiece weight: 3000 kg

Table

Outer length: 1000 mm
Outer width: 1120 mm

Tools

Type of tool holder: ISO 50

Additional Information

Machine Benefits

Qualitative Machine Benefits:
- - Very good condition!
- - After complete retrofit in 2012

Extra information

- Spindle movement (W axis) 630 mm Spindle diameter 100 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
