TOS SKIQ 20 CNC

TOS - SKIQ 20 CNCGB-TUR-TOS-1999-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

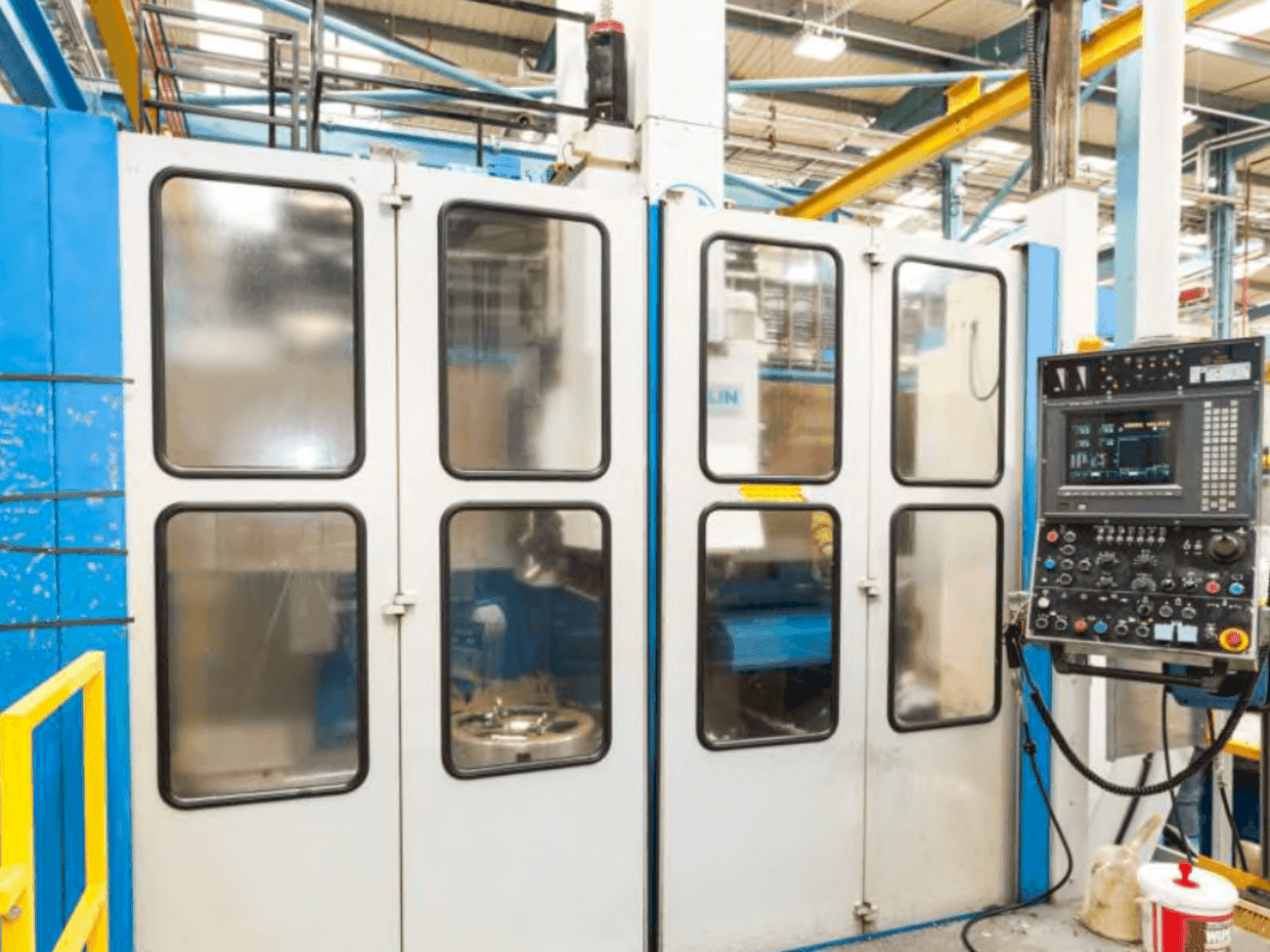

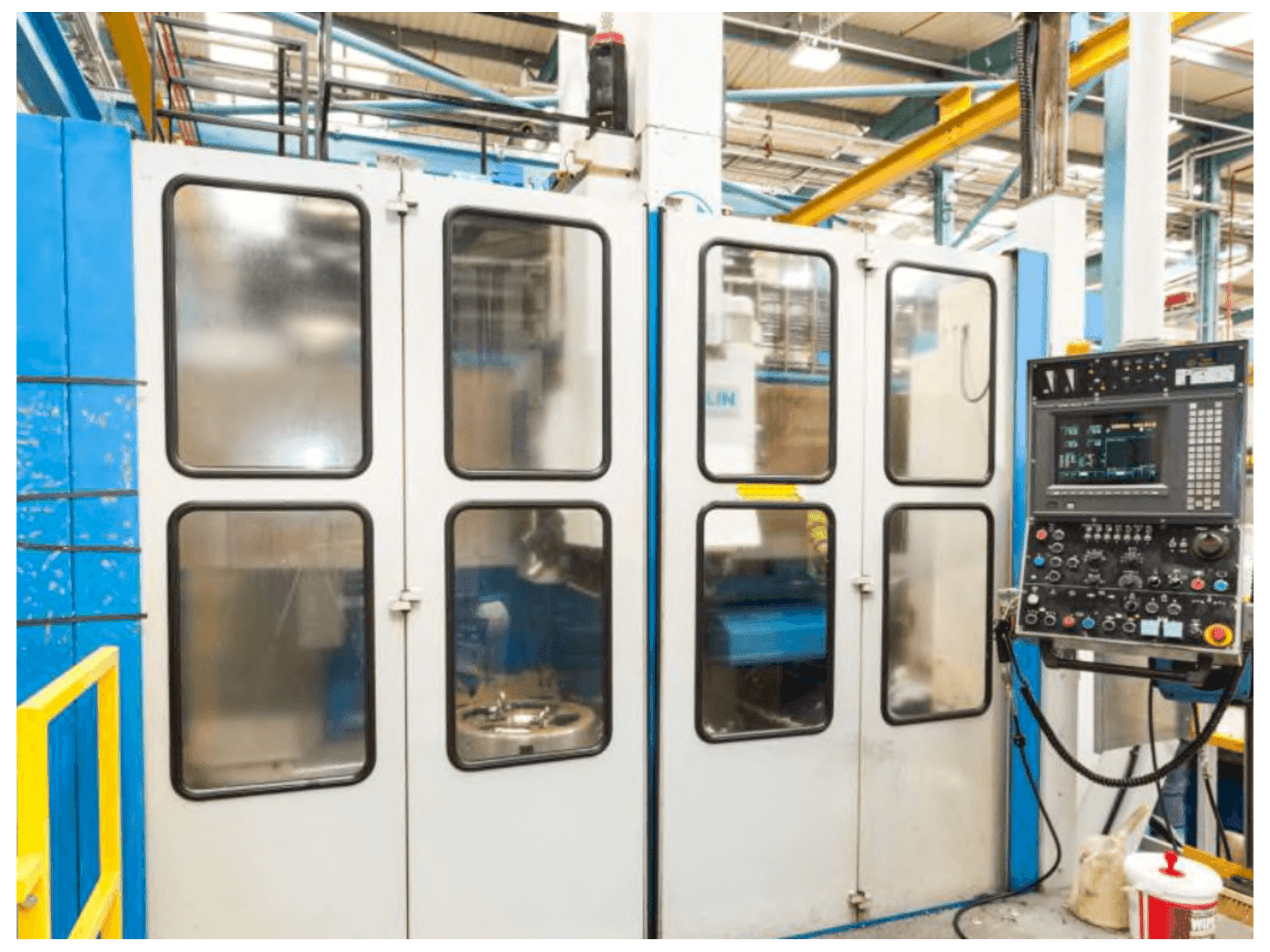

TOS SKIQ 20 CNC Lathe

Show in original language

This TOS SKIQ 20 CNC Lathe was built in the year 1999 in Czech Republic. It is equipped with a Fanuc 16iTB control unit. This 2 axis machine operates with a max. table speed 2 - 315 rpm. It stands out for its ability to carry up to 20000 kg of workpiece. It includes a set of turning tool holders. It presents very good working conditions.

Overview

brand: TOS
year: 1999
MODEL: SKIQ 20 CNC
application type: Turning
Location: United Kingdom
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: FANUC

Technical Information - TOS SKIQ 20 CNC

General Data

Measurements width: 6555 mm
Measurements depth: 5225 mm
Measurements height: 5645 mm
Machine weight: 35000 kg

Control Unit

Model: 16iTB
Brand: FANUC

Main drive

Number of axis: 2

Movement

Z-AXIS Movement: 1000 mm

Workpiece

Workpiece weight: 20000 kg

Tools

Slots in storage: 15

Additional equipment

- Set of Turning Tool holders

Additional Information

Machine history

End product: Engine parts
Industries: Aviation

Machine Benefits

Technical Machine Benefits:
- - Table diameter 2000 mm
- - Max. Turning diameter 2300 mm
- - Max. Turning height 1680 mm
- - Max. Table speed 2-315 rpm
- - Main motor power 60 kw
- - Max. Cutting force 44,000 n
- - Ram cross section 180 x 200 mm
- - Vertical travel of crossrail 800 mm
- - X-axis travel (saddle horizontal) 1300 mm to the right / 1040 mm to the left
- - Probing systems (tool and part), 4 jaw manual chuck, 10 bar through tool coolant
Qualitative Machine Benefits:
- - Very good condition

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
