TOS Kurim FUT 150 Milling Machine

Show in original language

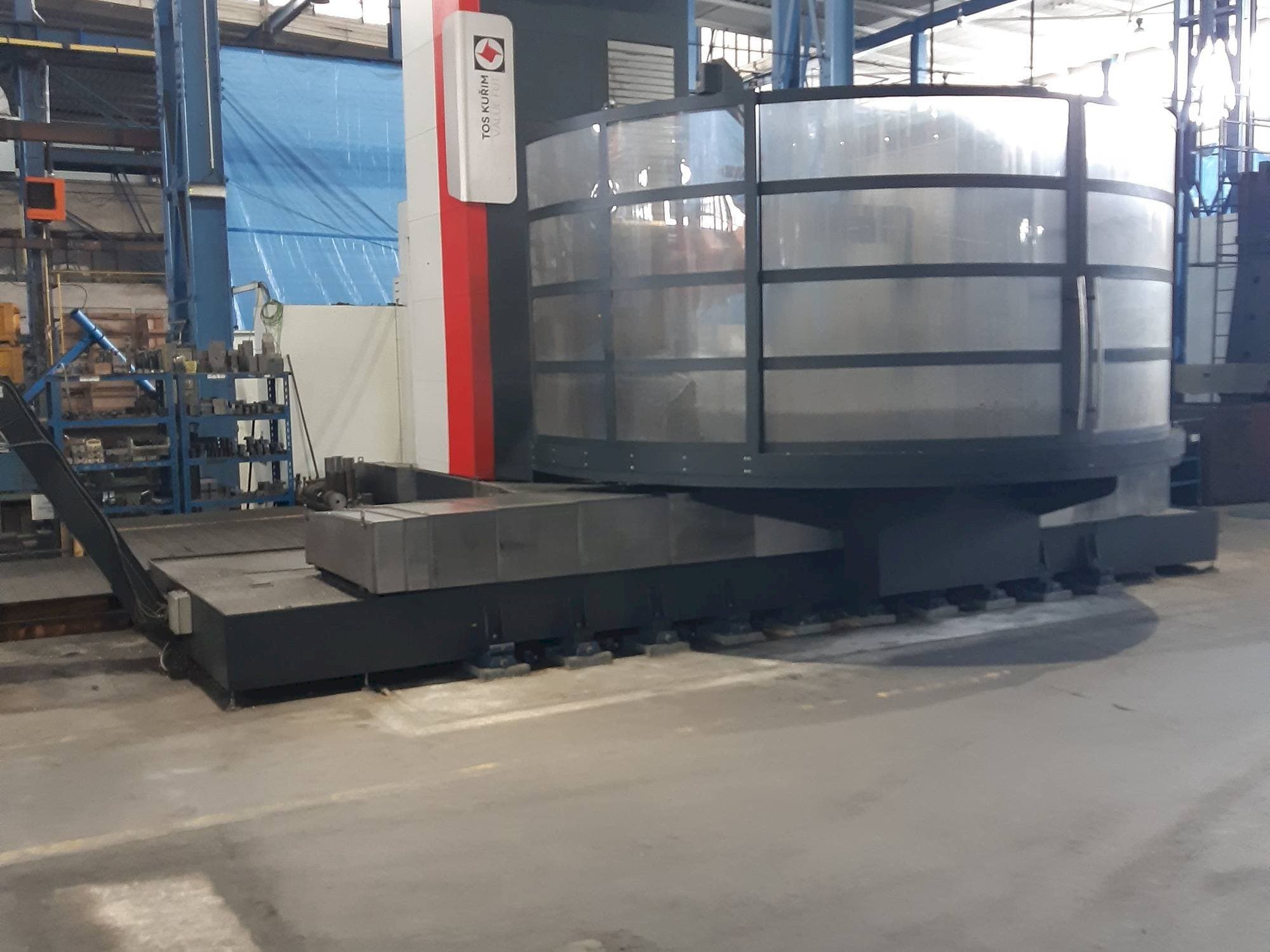

This TOS Kurim FUT 150 Milling Machine was manufactured in 2016 in the Czech Republic. This 5 axis machine operates through a Siemens S840 D control unit. It has a spindle speed up to 6000 rpm. It has a table of 1800 x 2200 mm. The machine is in a very good working conditions.

Overview

brand: TOS Kurim
year: 2016
MODEL: FUT 150
application type: Milling
Location: Czech Republic
machine type: CNC Milling Machine
availability: Sold
control unit brand: SIEMENS

Technical Information - TOS Kurim FUT 150

General Data

Machine weight: 29500 kg

Control Unit

Model: S840 D
Brand: SIEMENS

Main drive

Number of spindles: 1
Spindle speed range: 6000 1/MIN
Number of axis: 5

Movement

X-AXIS Movement: 3000 mm
X-AXIS Working Feed: 30.000 mm/min
Y-AXIS Movement: 2000 mm
Y-AXIS Working Feed: 30.000 mm/min
Z-AXIS Movement: 1500 mm
Z-AXIS Working Feed: 30.000 mm/min

Workpiece

Workpiece weight: 20000 kg

Table

Outer length: 1800 mm
Outer width: 2200 mm

Additional equipment

- Straight head VA1 6000 rpm, 1500Nm, ISO50 AD
- Straight head VA2 6000 rpm, 1000Nm, ISO50 AD
- 2-AXIS HEAD VK 6000 RPM, 1000NM, ISO50 AD, TILT RANGE +90/-120 DEG.

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Automatic head exchange - pick-up for 3 heads
- - Main motor power 37 kw
- - Cooling through spindle 20 bar
- - Outer cooling 6 bar
- - Chip conveyor
- - Hand wheel ht2
- - C axis +/-180 degrees, indexation 1 degree
Qualitative Machine Benefits:
- - Very good conditions

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
