TEAM AUTOMATION BERLIN Tattoo Needle Testing System

Show in original language

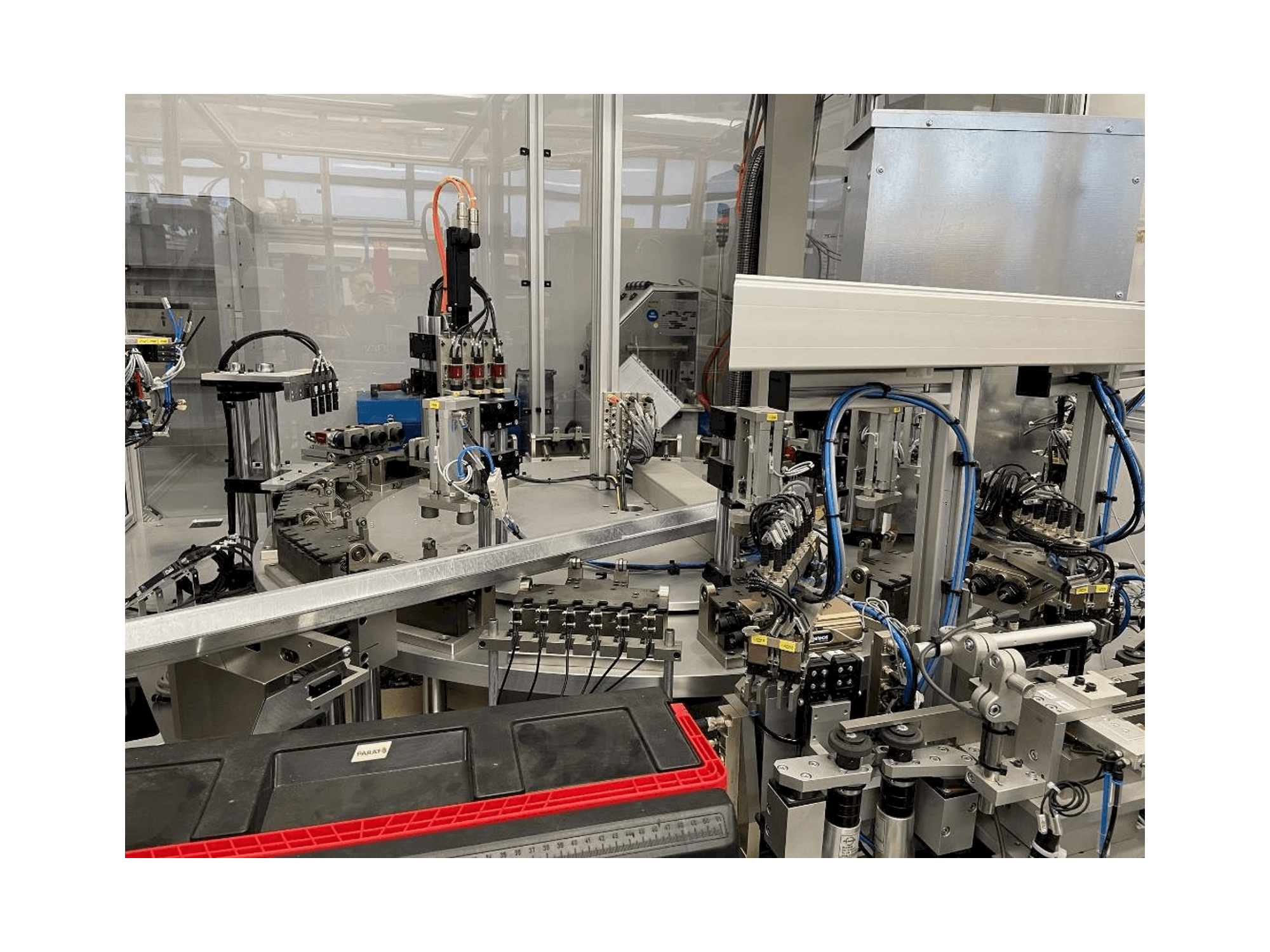

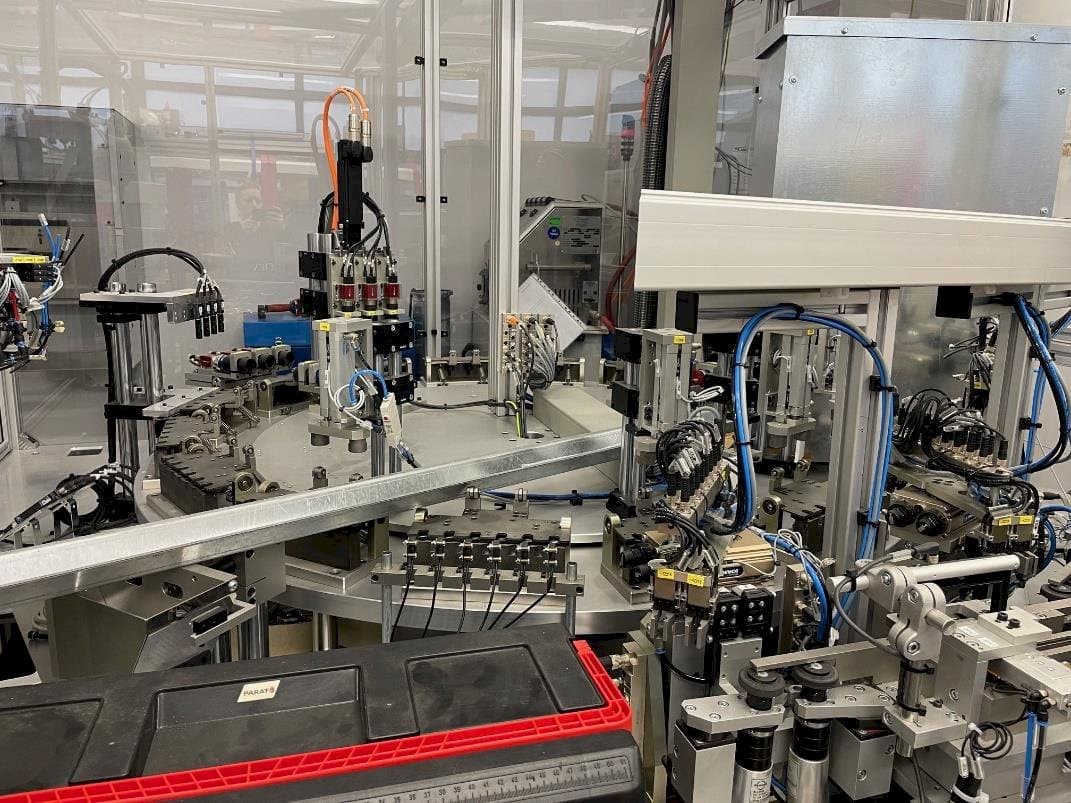

This TEAM AUTOMATION BERLIN Tattoo Needle Testing System was manufactured in the year 2017 in Germany. It is equipped with a SP control with KTP700F (Siemens) and operates with a 4-axis robot (SCARA LS20 with RC90 - Epson). With 1x linear axis (MLR-080-NN-2) and 1x precision axis (PSK 60), both Bosch Rexroth, the processing system runs reliably and efficiently. See video for more. There is also an IMS Tattoo Assembly Line available to set up a complete line with 2 phases before for the assembly of the needle in shaft together with the cap and tension spring.

Overview

brand: TEAM AUTOMATION BERLIN
year: 2017
MODEL: Tattoo Needle Testing System
application type: Other Machine Tools
Location: Germany
machine type: Machine Tool
availability: Sold

Technical Information - TEAM AUTOMATION BERLIN Tattoo Needle Testing System

General Data

Measurements width: 4500 mm
Measurements depth: 4700 mm
Measurements height: 2560 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Sp control with ktp700f (siemens)
- - Tattoo module feeder (grimm)
- - 1x 4-axis robot scara ls20 with rc90 (epson)
- - 1x linear axis mlr-080-nn-2 (bosch rexroth)
- - 1x psk 60 precision axis (bosch rexroth)
- - Camera system (avicom)
- - Rotary indexing tables (weiss)
- - Sensors (balluff, keyence, festo)
- - Pneumatic grippers (schunk)
- - Pneumatic equipment (festo)

Extra information

- Space requirement: 6900 mm x 2560 mm (width x depth) // Ambient temperature: max. 35° C

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
