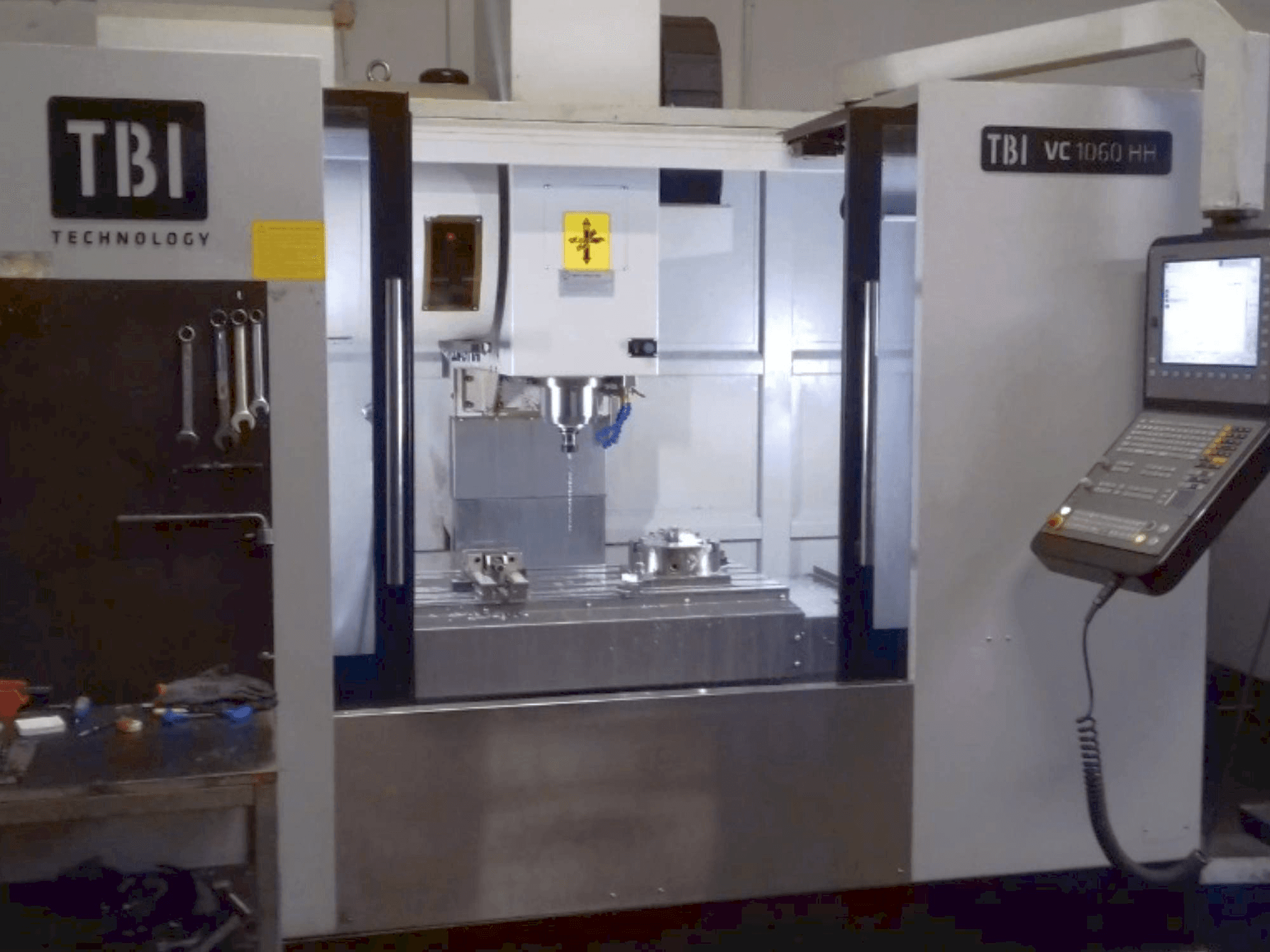

TBI VC 1060 HH Vertical Machine Center

Show in original language

This TBI VC 1060 HH Vertical Machine Center was manufactured in the year 2015. It has been on for 14563 hours, of which 7801 are spindle hours. This 3 axis machine operates through a Heidenhain 620 control unit. It has a spindle speed up to 12000 rpm. The machine is in very good condition and is it still at the production, ready for tests. Manuals and service documentation available.

Overview

brand: TBI
year: 2015
MODEL: VC 1060 HH
production hours: 14563
application type: Milling
Location: Poland
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - TBI VC 1060 HH

General Data

Measurements width: 2900 mm
Measurements depth: 2100 m MM
Measurements height: 2800 mm
Machine weight: 6000 kg

Control Unit

Model: 620
Brand: HEIDENHAIN

Main drive

Spindle speed range: 12000 1/MIN
Number of axis: 3

Movement

X-AXIS Movement: 1000 mm
X-AXIS Rapid traverse: 36 m/min
Y-AXIS Movement: 600 mm
Y-AXIS Rapid traverse: 36 m/min
Z-AXIS Movement: 550 mm
Z-AXIS Rapid traverse: 36 m/min

Table

Outer length: 1100 mm
Outer width: 500 mm

Tools

Max weight: 7 kg
Max tool diameter: 150 mm
Max tool length: 300 mm

Media

Main electronic connection: 400V / 50 Hz
Power consumption: 35 kVA

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Integrated chip conveyor - screw
- - Central cts cooling
- - Workpiece prob
- - Prepared for a 4th axis (the 4th axis not included)
- - Tool magazine: 24 pcs
- - Spindle taper: sk40
Qualitative Machine Benefits:
- - Very good working condition
- - Ready for tests
- - Manuals and service documentation available.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
