TAJMAC-ZPS MCV 1220 Vertical Machining Center

Show in original language

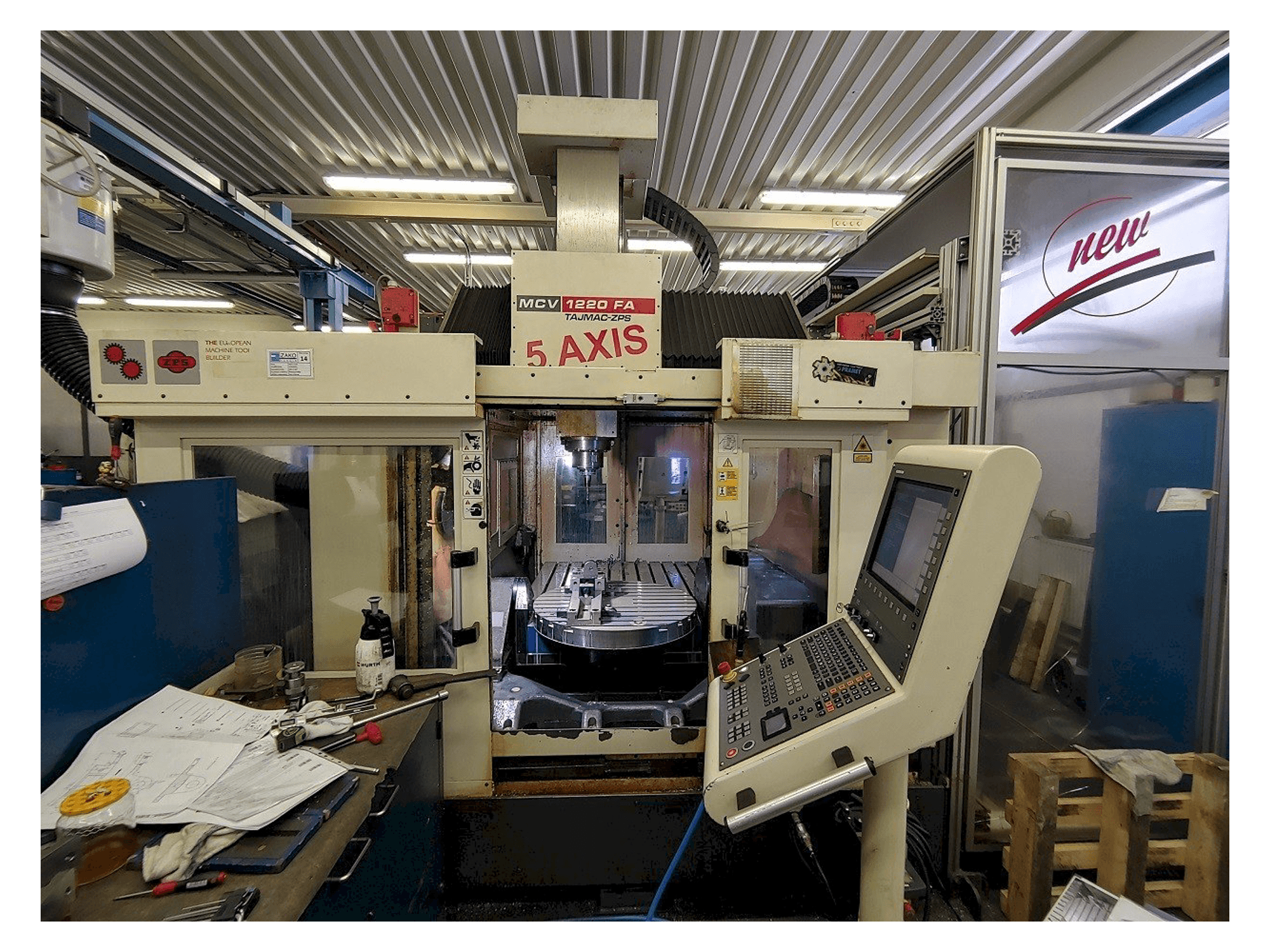

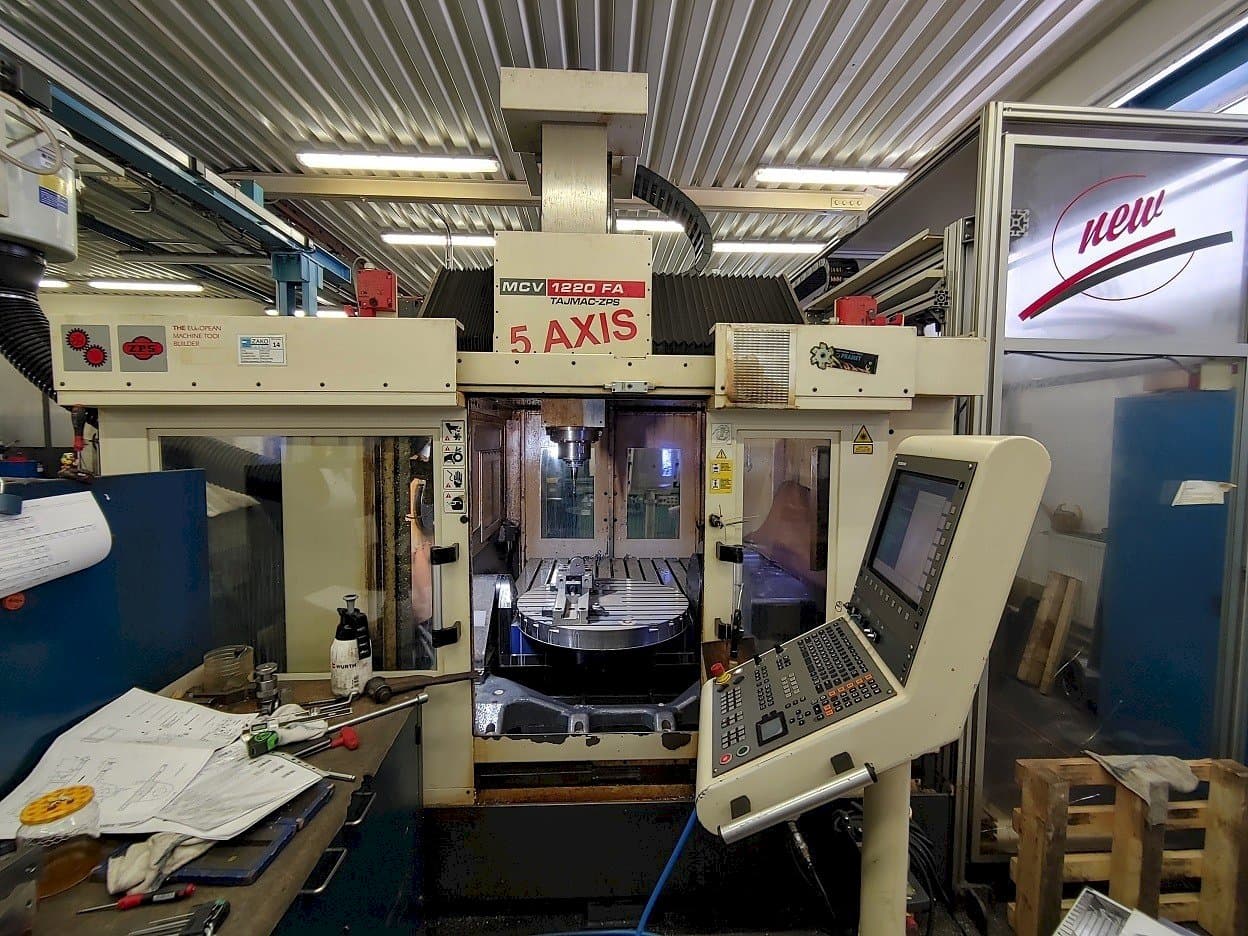

This TAJMAC-ZPS MCV 1220 Vertical Machining Center was manufactured in the year 2009 in the Czech Republic. It has been on for 44675 hours, of which 19734 are program time. It is operated with a Heidenhain iTNC 530 control unit. This 5 axis machine incorporates a spindle speed up to 14000 rpm. It is in very good working conditions, a new spindle installed in 2020.

Overview

brand: TAJMAC-ZPS
year: 2009
MODEL: MCV 1220
production hours: 44675
application type: Milling
Location: Czech Republic
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - TAJMAC-ZPS MCV 1220

General Data

Machine weight: 14000 KG

Control Unit

Model: iTNC 530
Brand: HEIDENHAIN

Main drive

Number of spindles: 1
Spindle speed range: 14000 1/MIN
Spindle motor power: 37 kW

Movement

X-AXIS Movement: 1000 mm
Y-AXIS Movement: 1800 mm
Z-AXIS Movement: 600 mm

Table

Outer length: 2000 mm
Outer width: 1200 mm

Tools

Slots in storage: 50
Type of tool holder: HSK-A

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Central cooling 25 bar station with filter paper
- - Renishaw workpiece and tool probe
- - Hand wheel hr 410
- - 2 axis turn table dia. 800 mm
Qualitative Machine Benefits:
- - Very good condition
- - 2020 - new spindle installed

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
