- Tajmac-ZPC H40 Standard Horizontal Machine Center

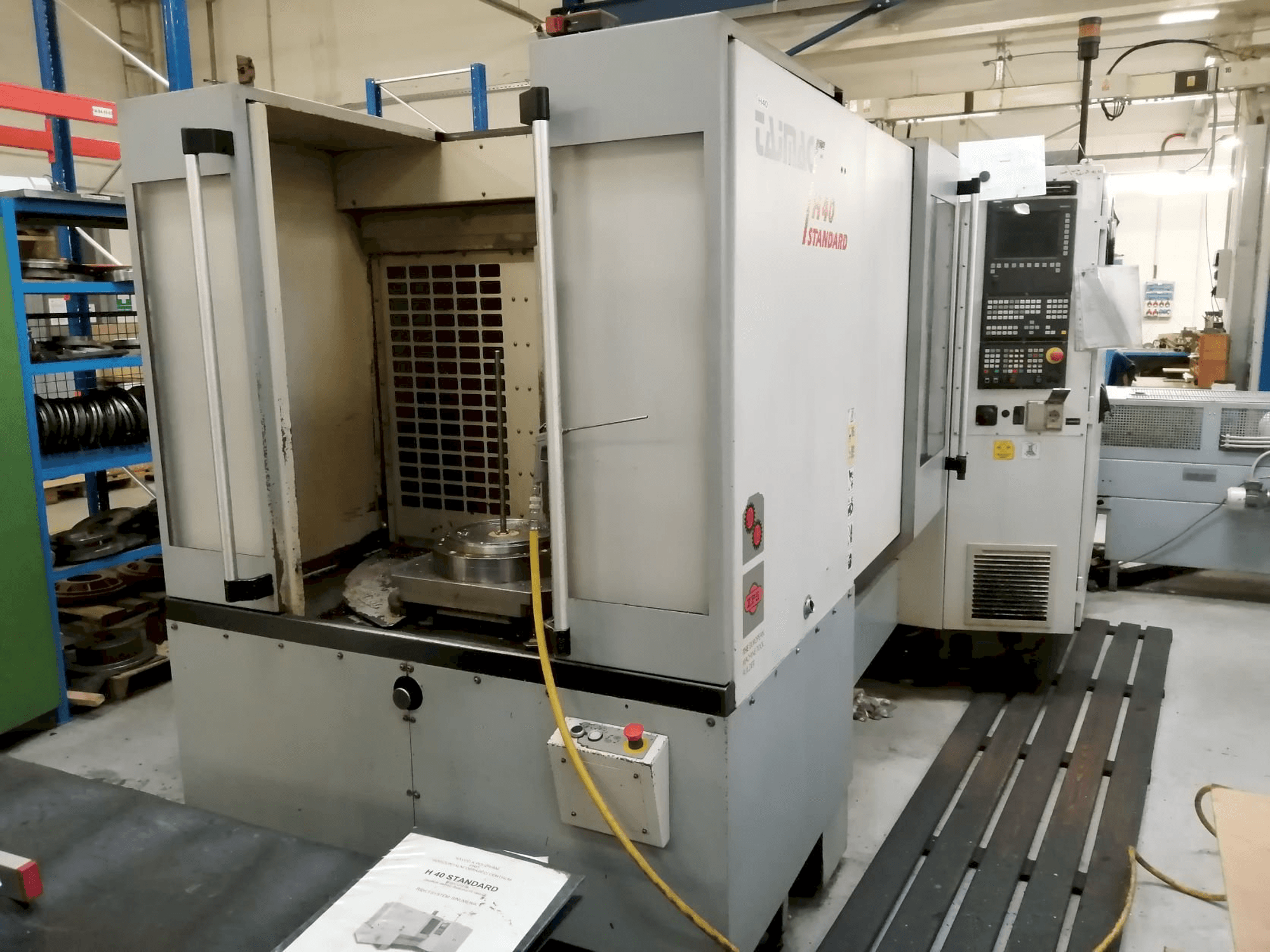

This Tajmac-ZPC H40 Standard Horizontal Machine Center was made in Czech Republic in 2006. This 2 pallets and 4 axis machine operates through a Siemens Sinumerik 840D control unit and includes a table size of 400 x 500 mm. This machine also works with a spindle speed up to 8000 rpm.
Overview
- brand: Tajmac-ZPC
- year: 2006
- MODEL: H40 Standard
- application type: Milling
- Location: Czech Republic
- machine type: Horizontal Machining Centre
- availability: Sold
- control unit brand: Siemens
Technical Information - Tajmac-ZPC H40 Standard
General Data
- Measurements width: 4177 mm
- Measurements depth: 2170 mm
- Measurements height: 2242 mm
- Machine weight: 8600 kg
Control Unit
- Model: Sinumerik 840D
- Brand: Siemens
Main drive
- Number of spindles: 1
- Spindle speed range: 8000 rpm 1/MIN
- Number of axis: 4
Movement
- X-AXIS Movement: 560 mm
- Y-AXIS Movement: 510 mm
- Z-AXIS Movement: 560 mm
Workpiece
- Workpiece weight: 300 kg
Table
- Outer width: 500 mm
- Outer length: 400 mm
- Distance between: 50 mm
Tools
- Slots in storage: 45
- Max weight: 7 kg
- Max tool diameter: 85/125 mm
- Max tool length: 300 mm
- Type of tool holder: SK 40
Media
- Power consumption: 35 kVA
- Chip conveyor: Yes
- Internal cooling: Yes
Additional equipment
- - 4 axis 2-palette center
Additional Information
- Technical Machine Benefits:
- - Through spindle coolant
- - Main motor power 12/17 kw (s1/s6-40%)
- - Min. /max. Distance between spindle nose and table 130-690 mm
- - Palette change time 10 s
- - Max. Workpiece size: dia 600 x height 600 mm
- Qualitative Machine Benefits:
- - Regularly serviced, good condition
- - Machine manual
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
