➤ Used TAATH BL-Y855 For Sale | gindumac.com

Show in original language

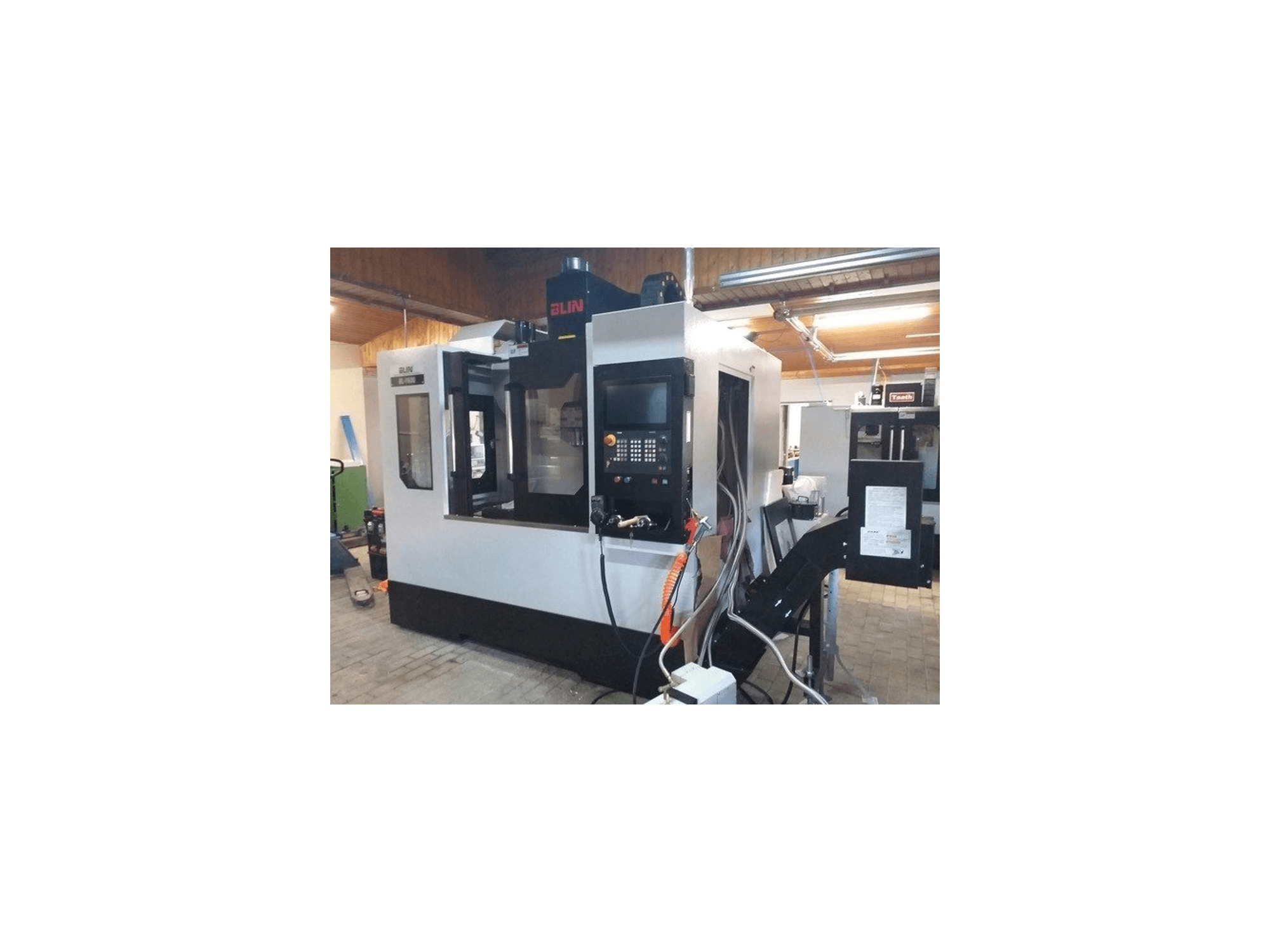

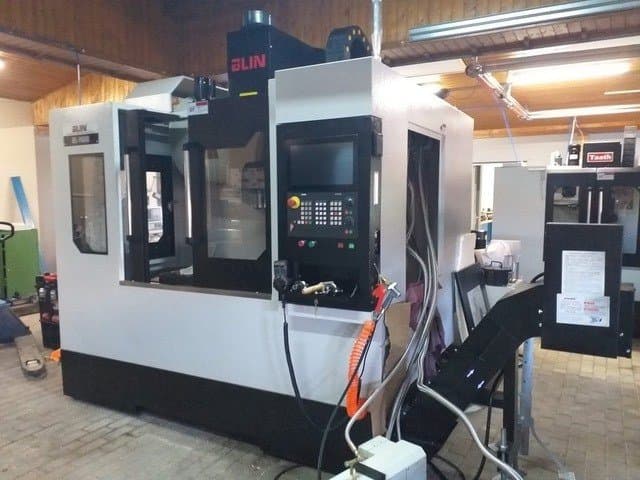

This 5-axis TAATH BL-Y855 horizontal machining center was manufactured in 2020. It features a Siemens 840DSL CNC control, a robust table with a 500 kg load capacity, and a spindle speed up to 12000 RPM. Additional highlights include a 24T lever-type tool magazine, fully enclosed workspace, and chip conveyor. A great opportunity to buy this TAATH BL-Y855 horizontal machining center. For more information about this horizontal machining center, please reach out to us.

Overview

brand: TAATH
year: 2020
MODEL: BL-Y855
application type: Milling
Location: Hungary
machine type: Vertical Turning Machine
availability: Sold
control unit brand: SIEMENS

Technical Information - TAATH BL-Y855

Control Unit

Model: 840DSL
Brand: SIEMENS

Main drive

Spindle speed range: 100-12000 1/MIN
Tool taper: BT 40/ϕ150 mm
Number of axis: 5

Movement

X-AXIS Movement: 800 mm
Y-AXIS Movement: 550 mm
Z-AXIS Movement: 550 mm

Table

Outer length: 1000 mm
Outer width: 550 mm
Table load: 500 kg

Media

Chip conveyor: Yes

Additional equipment

- Servo spindle motor and controller

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Cnt-200 table, diameter: 200 mm
- - Tool magazine: 24t lever-type
- - Cooling through the spindle for efficient machining, advanced control with siemens 840dsl
Qualitative Machine Benefits:
- - Cooling through spindle
- - X/y/z axes: servo motor and controller
- - Air conditioning in the electrical cabinet
- - Fully enclosed workspace
- - Linear slide guide, measuring bar
- - Menu in hungarian
- - Precision with servo motor and controller for x/y/z axes, enhanced working environment with air conditioning in the electrical cabinet
- - 3+2 axes configuration

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
