➤ Used SW BX 621 Machining Center For Sale | gindumac.com

Show in original language

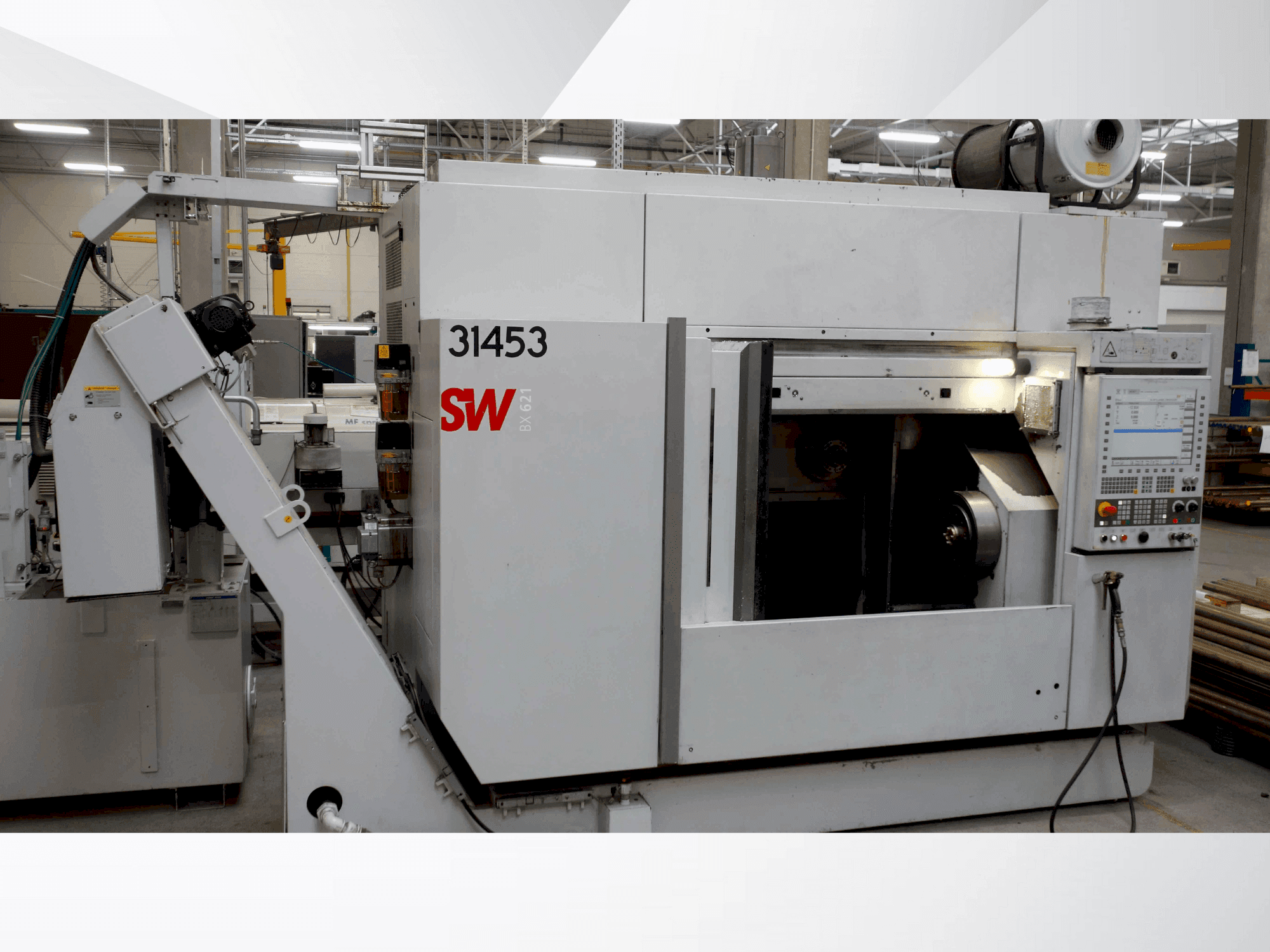

This 4-axis SW BX 621 horizontal machining center was manufactured in 2013. It features a robust SINUMERIK 840D sl CNC control system and dual liquid-cooled motorized spindles, each offering up to 6,000 rpm and 26 kW power. The machine supports a maximum tool diameter of 115mm and a tool length of 300mm, with a rapid traverse speed of up to 60 m/min. Ideal for precision machining, the SW BX 621 machine we have for sale. Contact us for more information.

Overview

brand: SW
year: 2013
MODEL: BX 621
application type: Milling
Location: Switzerland
machine type: Horizontal Machining Centre
availability: Immediately
control unit brand: SIEMENS

Technical Information - SW BX 621

General Data

Measurements width: 5050 MM
Measurements depth: 5800 MM
Measurements height: 3300 MM
Machine weight: 12500 KG

Control Unit

Model: SINUMERIK 840D sl
Brand: SIEMENS

Main drive

Spindle speed range: 1 - 6,000 1/MIN
Spindle motor power: 6 kW each (S6/25% ED), 21 kW each (S1/100% ED)
Tool taper: HSK-A100

Movement

X-AXIS Movement: 600 mm
Y-AXIS Movement: 525 mm (extendable to 890 mm)
Z-AXIS Movement: 400 mm

Additional equipment

- Liquid-cooled motorised spindle in AC synchronous technology

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Swivelling table (a-axis): direct-driven, horizontal nc rotary table with counter bearing
- - Max. Fixture / workpiece dimensions: Ø 630 mm x 1420 mm
- - Max. Fixture / workpiece weight: 600 kgmax. Fixture / workpiece weight: 600 kgmax. Fixture / workpiece weight: 600 kg
- - Spindle arrangement: horizontal, side by side
- - Spindle distance: 600 mm

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
