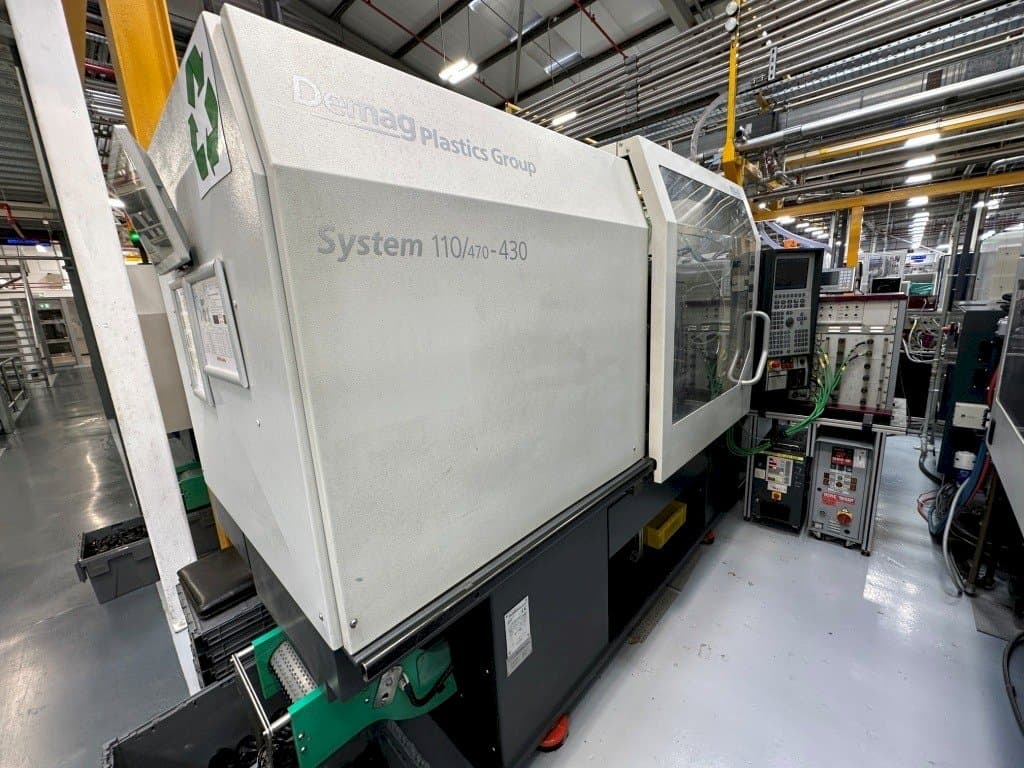

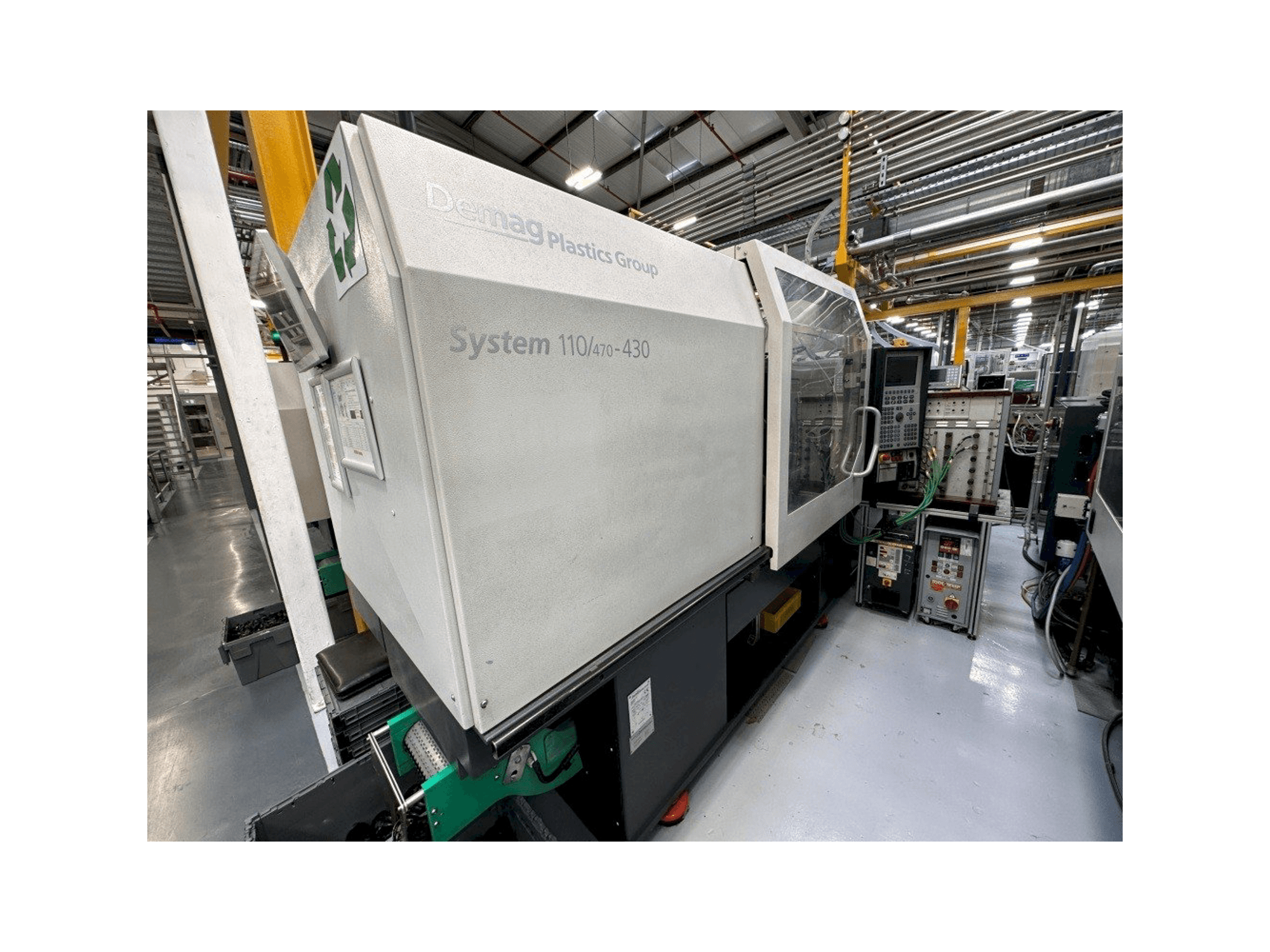

DEMAG System 110/470-430 Injection Moulding Machine

Show in original language

This DEMAG System 110/470-430 Injection Moulding Machine was made in the year 2005. It is equipped with a Demag NC4 control unit. The machine has a clamping force of 1100 kN, a screw diameter of 45 mm and it is in very good condition.

Overview

brand: SUMITOMO SHI DEMAG
year: 2005
MODEL: System 110/470-430
application type: Injection Moulding
Location: Ireland
machine type: Hydraulic Injection Moulding Machine
availability: Sold

Technical Information - SUMITOMO SHI DEMAG System 110/470-430

General Data

Measurements width: 4650 mm
Measurements depth: 1550 mm
Measurements height: 2100 mm
Machine weight: 5500 kg

Control Unit

Model: NC4
CNC main language: English
CNC language customizable: Yes

Injection Unit

Screw diameter: 45 mm
Stroke volume: 292 CM³
Injection pressure: 1600 bar

Clamping unit

Clamping force: 1100 kN
Distance between bars: 470 mm
Mould height min: 250 mm
Size of mold platens: 670 mm
Ejector stroke: 180 mm
Ejector force for / back: 41 mm

Media

Main electronic connection: 400 V

Additional equipment

- Conveyor

Additional Information

Machine history

Material type: Plastic
End product: Automotive parts
Industries: Automotive industry

Machine Benefits

Technical Machine Benefits:
- - 110t machine
Qualitative Machine Benefits:
- - Very good condition
- - Well maintained

Extra information

- Hopper and Kistler Unit in photos not included in sale

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
