SUMITOMO SHI DEMAG - SE180SES-INJ-SUM-2002-00001
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
- GINDUMAC
- Products
- Plastics Processing Machinery
- SUMITOMO SHI DEMAG SE180S Injection Moulding Machine

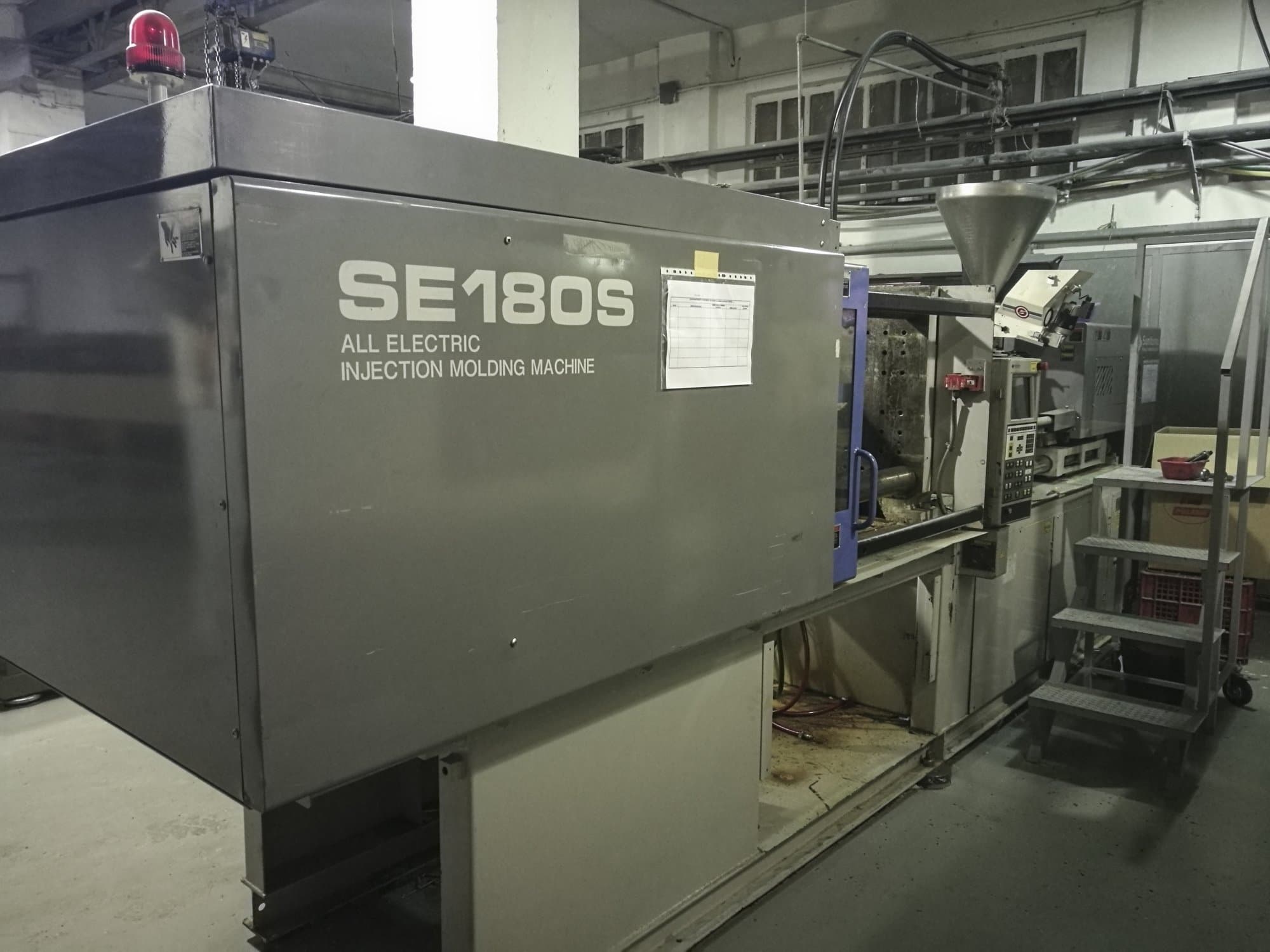

This SUMITOMO SHI DEMAG SE180S Injection Moulding Machine was manufactured in the year 2002 in Italy and has a working record of approximately 15000 production hours. Operated through a Sumitomo control unit, in the past this equipment has handled mostly polypropylene. The machine has a clamping force of 1800 kN and stands in very good condition.
Overview
- brand: SUMITOMO SHI DEMAG
- year: 2002
- MODEL: SE180S
- production hours: 15000
- application type: Injection Moulding
- Location: Spain
- machine type: Hydraulic Injection Moulding Machine
- availability: Sold
- control unit brand: Sumitomo
Technical Information - SUMITOMO SHI DEMAG SE180S
General Data
- Measurements width: 5462 mm
- Measurements depth: 1249 mm
- Measurements height: 2031 mm
- Machine weight: 6500 kg
Control Unit
- Brand: Sumitomo
Injection Unit
- Screw diameter: 40 mm
- Shot weight: 193 g/PS
- Stroke volume: 201 cm³
- Injection pressure: 2000 bar
- Plasticizing rate max.: 28 g/s PS
- Screw speed: 400 1/min
- Heating capacity: 10.5 kW
- Nozzle pressure: 24.5 kN
Clamping unit
- Clamping force: 1800 kN
- Opening stroke: 430 mm
- Distance between bars: 510 x 510 mm
- Mould height min: 200 mm
- Mould height max: 500 mm
- Size of mold platens: 930 mm
- Ejector stroke: 120 mm
- Ejector force for / back: 46 kN
Media
- Main electronic connection: 400 V
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
Sergi Guardia
Payment Terms
Payment in advance
Asset Financing
