DEMAG ERGOTECH 1300-8000 Injection moulding machine

Show in original language

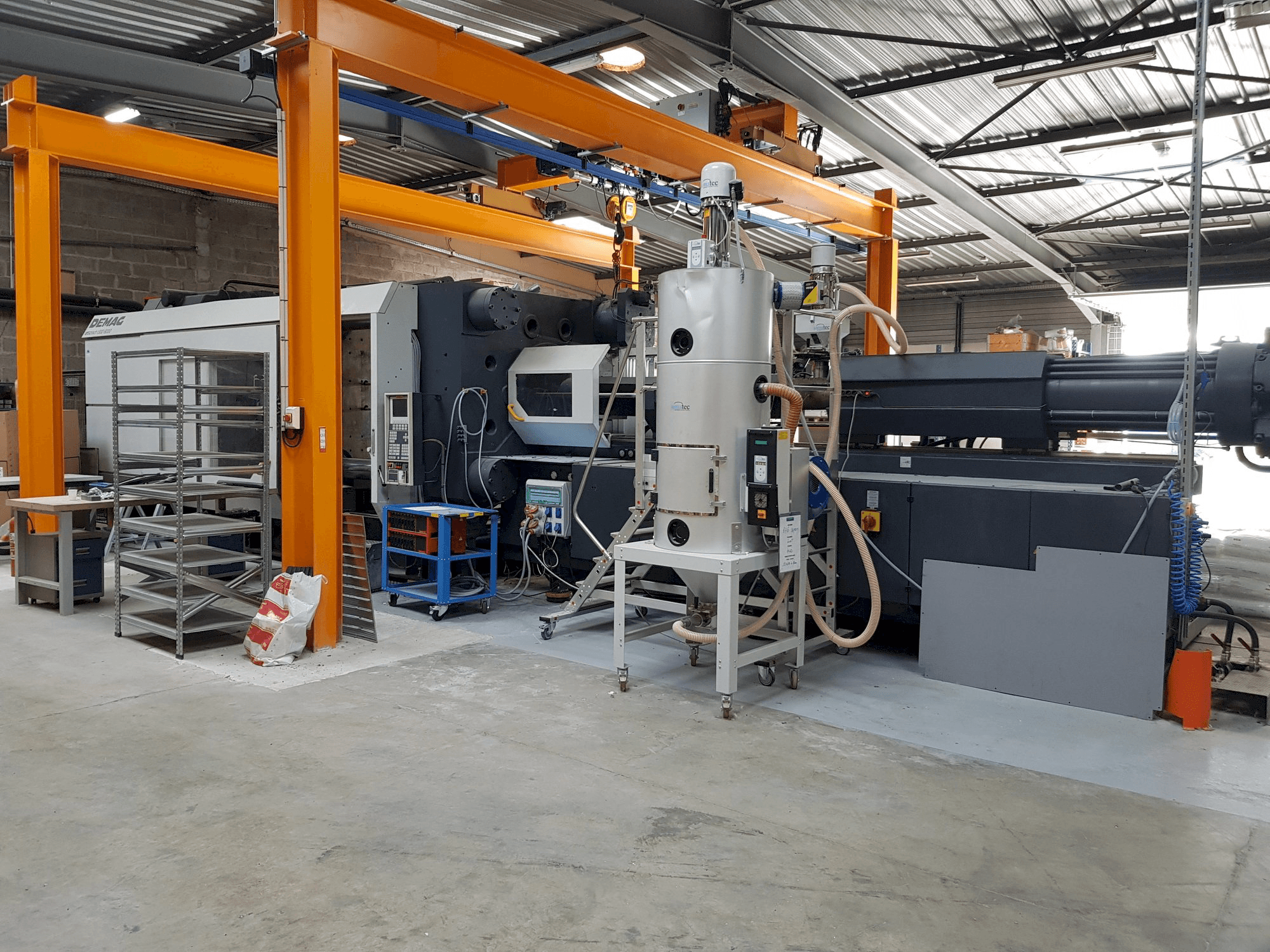

This DEMAG ERGOTECH 1300-8000 Injection Moulding Machine was manufactured in the year 1997. It is equipped with a Demag NC4S control unit. The machine has a clamping force of 13000 kN and is in perfect condition.

Overview

brand: SUMITOMO SHI DEMAG
year: 1997
MODEL: ERGOTECH 1300-8000
application type: Injection Moulding
Location: France
machine type: Hydraulic Injection Moulding Machine
availability: Sold

Technical Information - SUMITOMO SHI DEMAG ERGOTECH 1300-8000

General Data

Measurements width: 14400 mm
Measurements depth: 3400 mm
Measurements height: 2900 mm
Machine weight: 7000 + 9400 kg

Control Unit

Model: NC4S

Injection Unit

Screw diameter: 110 mm
Shot weight: 3976 gr
Stroke volume: 4370 CM³
Injection pressure: 1815 bar

Clamping unit

Clamping force: 13000 kn
Opening stroke: 1500 mm
Mould height min: 700 mm
Mould height max: 1400 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Core pulling: 4
- - Interface robot: yes
- - Distance between columns: 1500 x 1200 mm
- - Platen sizes: 2150 x 1880 mm
Qualitative Machine Benefits:
- - Is in perfect condition

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
