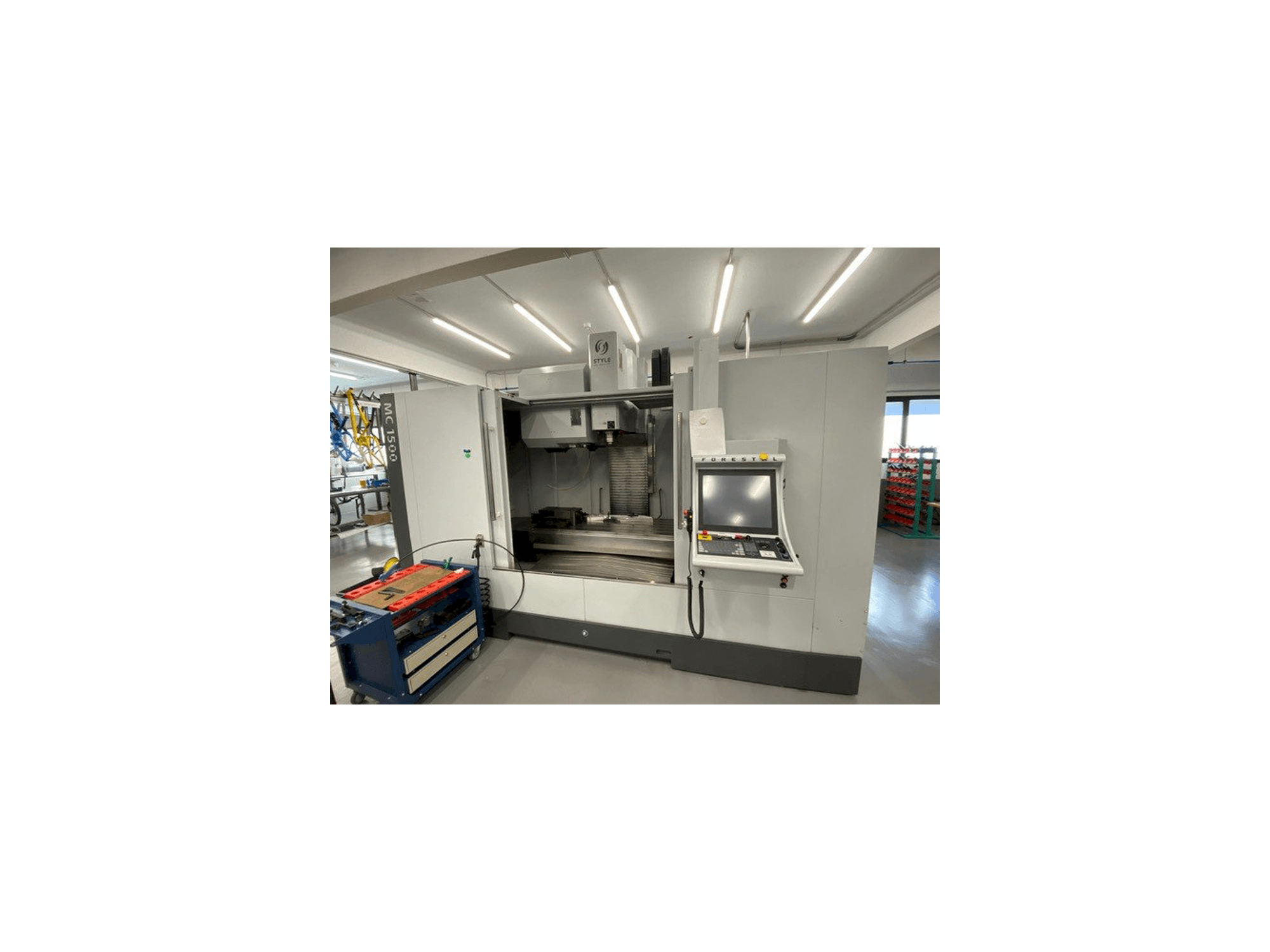

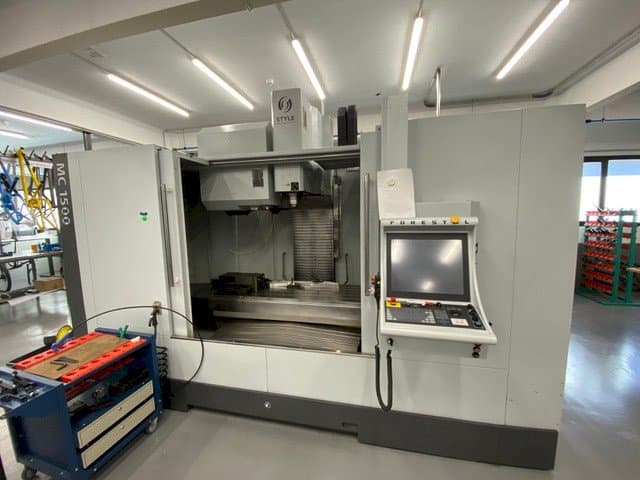

STYLE MC 1500 Vertical Machining center

Show in original language

This STYLE MC 1500 Vertical Machining center was manufactured in the year 2020 in the Netherlands and has 2255 production hours. It has 3 axis. The machine has a spindle speed of 10000 rpm. Original machine PDF (EN) is attached, see below.

Overview

brand: STYLE
year: 2020
MODEL: MC 1500
production hours: 2255
application type: Milling
Location: Andorra
machine type: Vertical Machining Centre
availability: Sold

Technical Information - STYLE MC 1500

General Data

Measurements width: 4200 mm
Measurements depth: 2400 mm
Measurements height: 3200 mm
Machine weight: 6600 kg

Main drive

Spindle speed range: 10000 1/MIN
Spindle motor power: 11 kW
Tool taper: BT 40
Number of axis: 3

Movement

X-AXIS Movement: 1500 mm
Y-AXIS Movement: 680 mm
Z-AXIS Movement: 880 mm

Table

Outer length: 1700 mm
Outer width: 600 mm
Height adjustment: 850 mm
Distance between: 100-980 mm
Table load: 1000 kg

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Distance spindle nose to z-axis way cover 720 mm
- - X, y and z-axis: rapid feed x/y/z 24/24/24 m/min feed rate x/y/z 12/12/12 m/min
- - Guide way type linear way
- - Tool changer
- - Vertical automatic tool changer pos. 24

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
