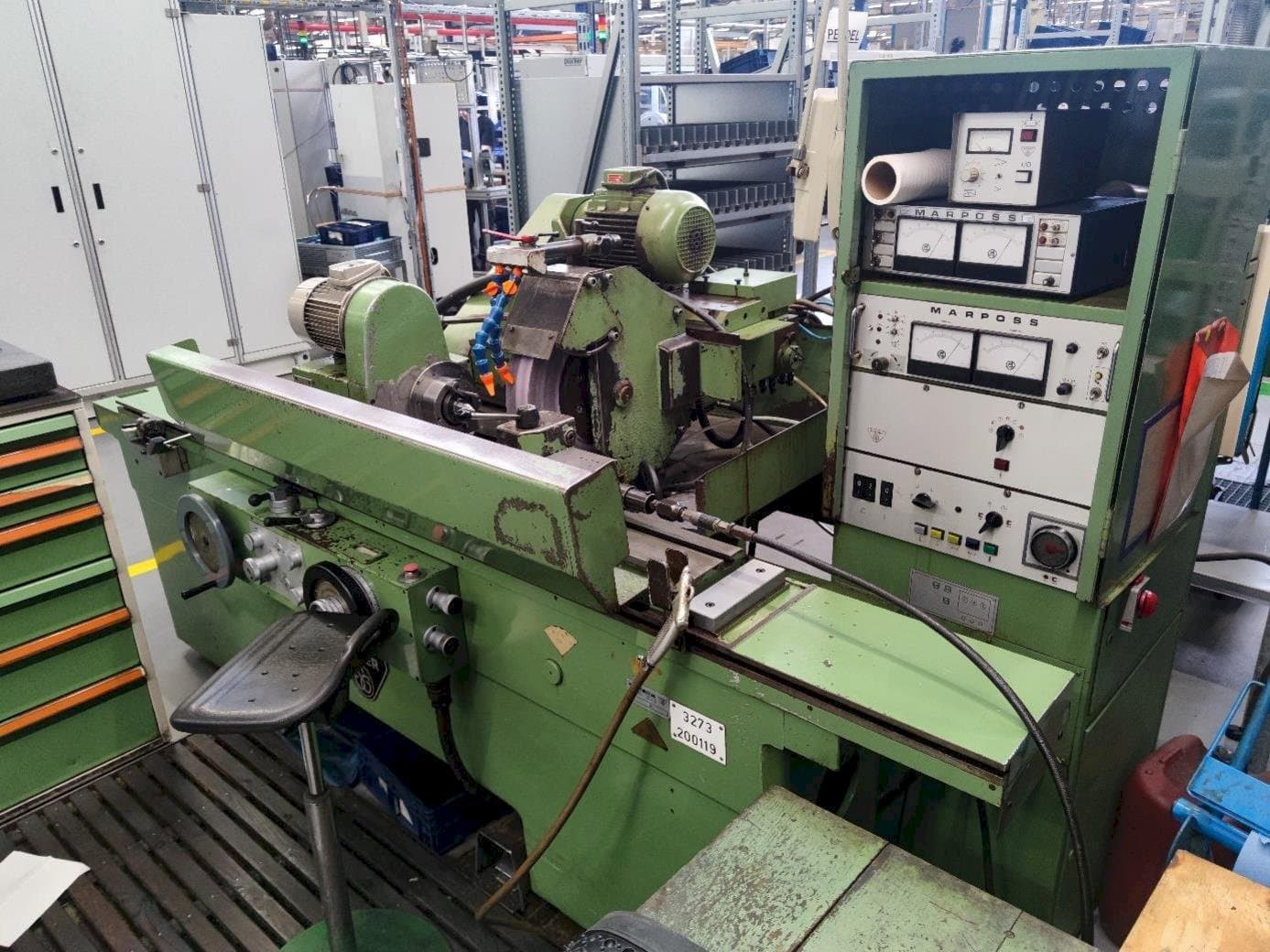

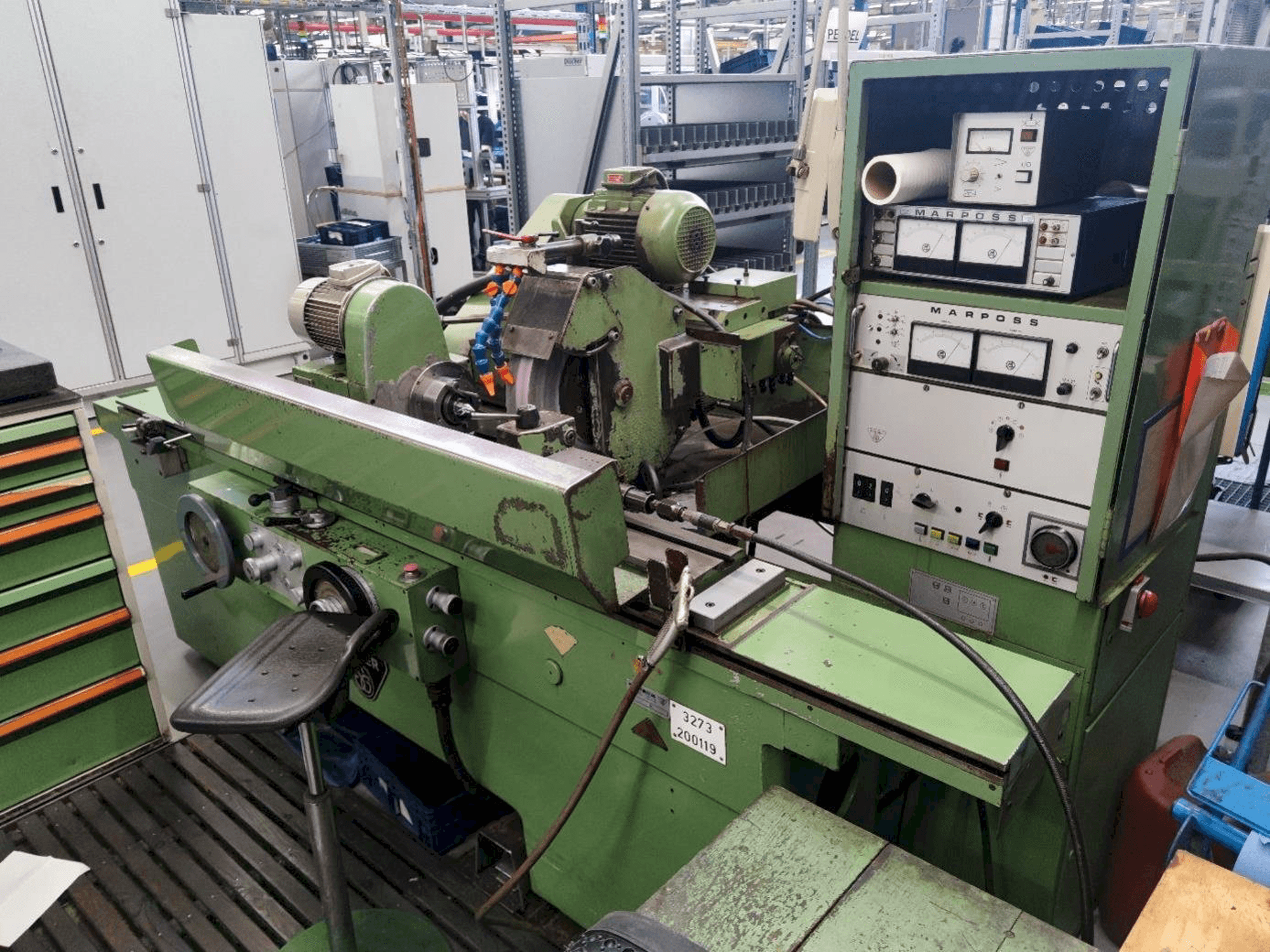

STUDER RHU 1000/125-DR Grinding machine

Show in original language

This STUDER RHU 1000/125-DR Grinding machine was manufactured in the year 1979.

Overview

brand: STUDER
year: 1979
MODEL: RHU 1000/125-DR
application type: Grinding
Location: Germany
machine type: Cylindrical Grinding Machine
availability: Sold

Technical Information - STUDER RHU 1000/125-DR

General Data

Machine weight: 2600 kg

Workpiece

Workpiece weight: 80 kg

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Main dimensions: centre height: 125 mm centre width: 1025 mm largest longitudinal slide travel: 1020 mm
- - Longitudinal slide: table speed (infinitely variable): 0. 05-5. 5 m/min
- - Reversing delay: 0-6 s
- - Smallest automatic table travel: approx. 1. 5 mm
- - Largest inclined position of rotary table: 8°
- - Travel per handwheel revolution: 25 mm
- - Workhead: swivelling against grinding wheel: 90°
- - Speed range (infinitely variable): 30-675 min-1
- - Internal taper of workpiece spindle: 5
- - Morse shank diameter of collet: 25 mm
Qualitative Machine Benefits:
- - Diameter of 3-jaw chuck: 160 mm

Extra information

- Applications: Cylindrical grinding in series production External and longitudinal grinding with straight and angled plunge cut Rear automatic dressing External grinding with straight or profiled wheel

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
