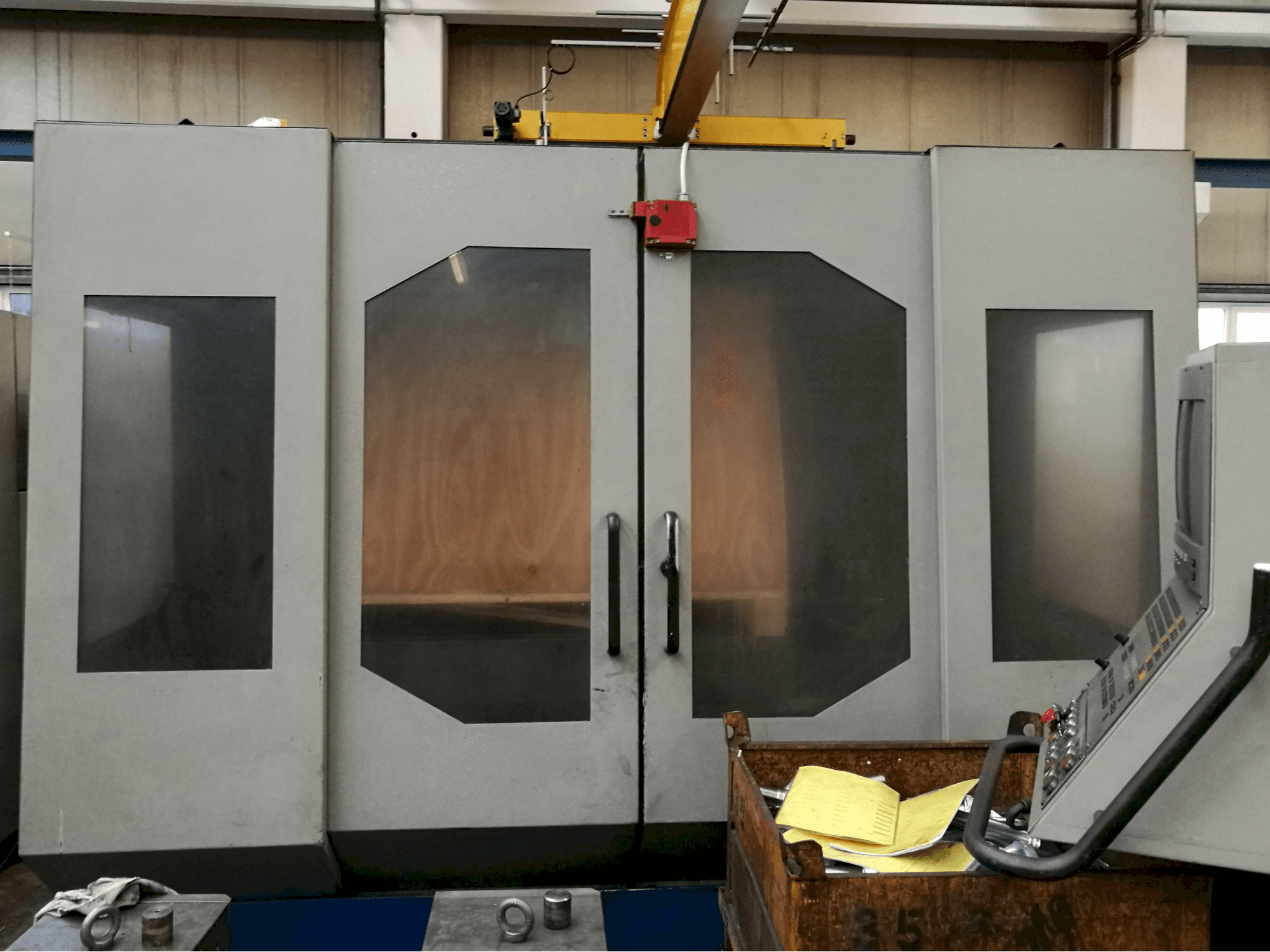

Strojtos FGS 50 CNC Milling Machine

Show in original language

This Strojtos FGS 50 CNC Milling Machine was made in 2000 in Czech Republic and counts with approximately 36000 working hours since then. Equipped with a Heidenhain TNC 410 Control unit, this stable machine counts with a strong spindle and flat guidways.

Overview

brand: Strojtos
year: 2000
MODEL: FGS 50 CNC
production hours: 36000
application type: Milling
Location: Austria
machine type: Horizontal Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - Strojtos FGS 50 CNC

General Data

Measurements width: 3860 mm
Measurements depth: 3860 mm
Measurements height: 2100 mm
Machine weight: 5280 kg

Control Unit

Model: TNC 410
CNC main language: German
CNC language customizable: Yes
Brand: HEIDENHAIN

Main drive

Number of spindles: 1
Spindle speed range: 20-4000 rpm 1/MIN

Movement

X-AXIS Movement: 1100 mm
Y-AXIS Movement: 800 mm
Z-AXIS Movement: 600 mm

Workpiece

Workpiece weight: 600 kg

Table

Outer length: 1200 mm
Outer width: 500 mm

Tools

Type of tool holder: ISO 50

Media

Main electronic connection: 400 V
Power consumption: 22 kVA

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
