Stratasys - FDM TitanLV-3DP-STR-2006-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

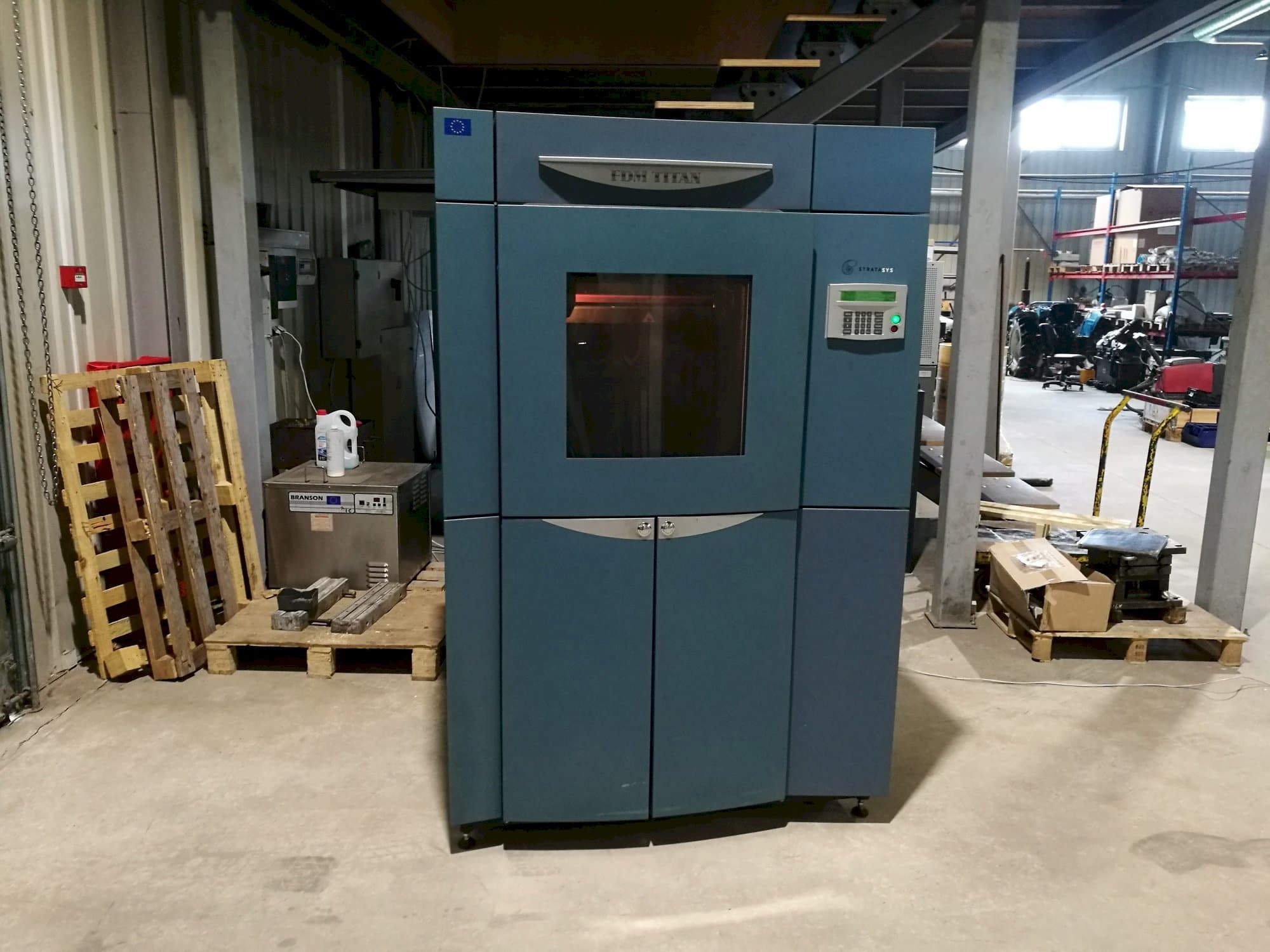

Stratasys FDM Titan 3D Printer

Show in original language

This Stratasys FDM Titan 3D Printer was manufactured in the year 2006 in the United States. It has a production record of 2762 hours since then. It is equipped with a Stratasys Powerwarf 5125 control unit. It works with an Insight Slicing Software. One of the specifications of this machine is that the physical models of parts can be generated directly from CAD. It includes a CD with Modeling Program, spare parts, build sheets 80pcs, material canisters, power transformer and a computer workstation.

Overview

brand: Stratasys
year: 2006
MODEL: FDM Titan
production hours: 2762
application type: 3D Printing
Location: Latvia
machine type: Plastic 3D Printer
availability: Sold

Technical Information - Stratasys FDM Titan

General Data

Measurements width: 1277 mm
Measurements depth: 902 mm
Measurements height: 1982 mm
Machine weight: 636 kg

Control Unit

Model: Powerwarf 5125
CNC main language: English

Movement

X-AXIS Movement: 406 mm
Y-AXIS Movement: 355 mm
Z-AXIS Movement: 406 mm

Media

Main electronic connection: 230V 16A 60Hz
Power consumption: 20A

Additional Information

Machine history

Material type: Plastic
End product: Printing prototype parts

Machine Benefits

Technical Machine Benefits:
- - Cd with modeling program
- - Spare parts - build sheets 80pcs
- - Material canisters
- - Power transformer
- - Build large parts or numerous smaller parts
- - Provides prototype parts
- - Internal features that can be used to test form, fit, function
- - Physical models of parts can be generated directly from cad
- - Insight slicing software
- - Modeling material and support material

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
