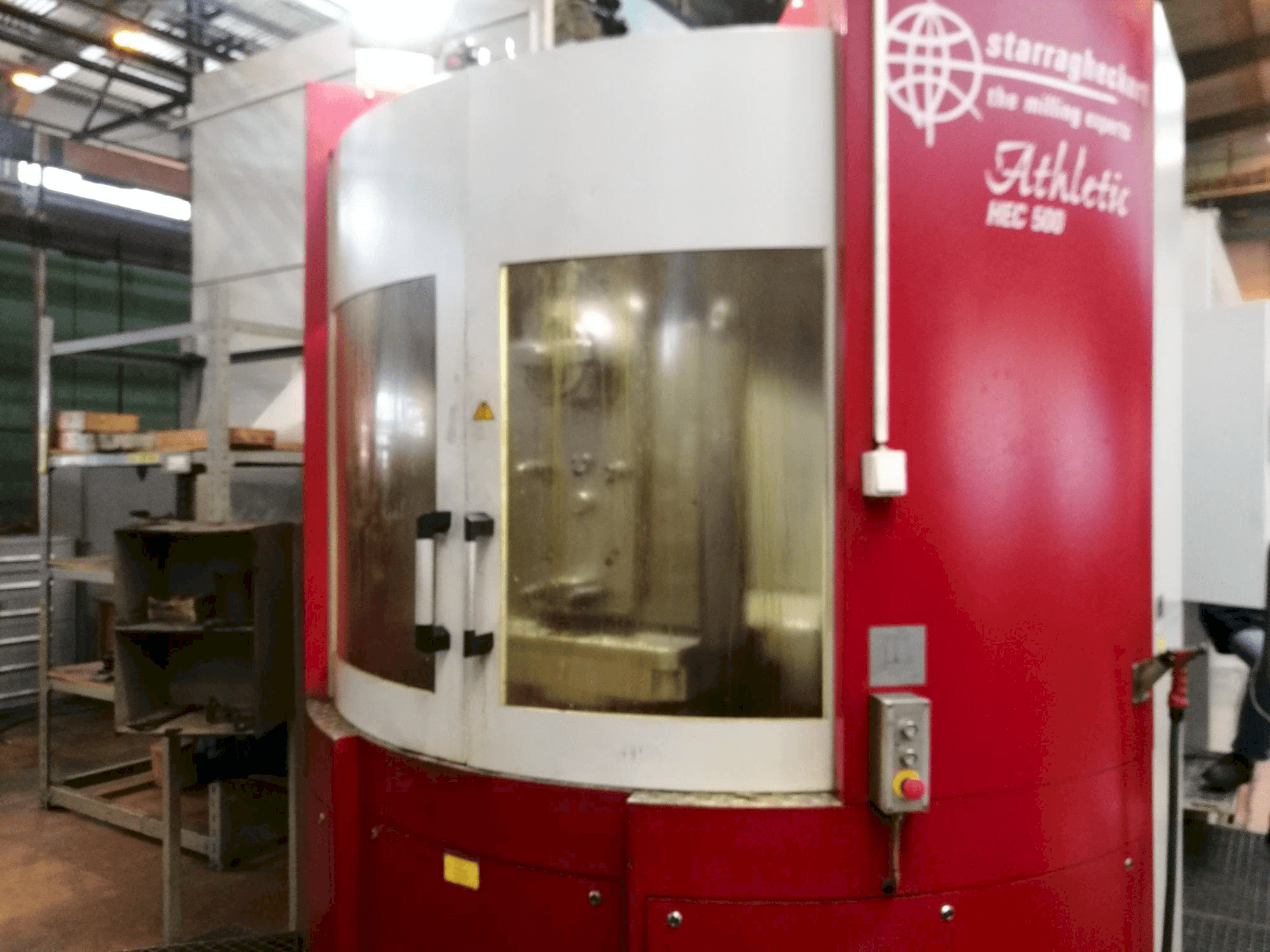

Starrag Heckert HEC 500 Horizontal Machining Center

Show in original language

This Starrag Heckert HEC 500 Horizontal Machining Center was manufactured in 2007 in Germany and has been working for 31268 hours, from which 11376 are spindle hours. Equipped with a SIEMENS SINUMERIK 840 D Control unit, this machine can perform with a spindle speed up to 6000 rpm. It presents excellent conditions, as it has been working for little hours.

Overview

brand: Starrag Heckert
year: 2007
MODEL: HEC 500
production hours: 31268
application type: Milling
Location: Czech Republic
machine type: Horizontal Machining Centre
availability: Sold
control unit brand: SIEMENS

Technical Information - Starrag Heckert HEC 500

General Data

Machine weight: 24000 kg

Control Unit

Model: SINUMERIK 840 D
Brand: SIEMENS

Main drive

Spindle speed range: 6000 rpm 1/MIN

Movement

X-AXIS Movement: 1000 mm
Y-AXIS Movement: 800 mm
Z-AXIS Movement: 1000 mm

Workpiece

Workpiece weight: 1000 kg

Table

Outer length: 630 mm
Outer width: 500 mm

Tools

Slots in storage: 60
Max weight: 35 kg
Max tool diameter: 325 mm
Max tool length: 450 mm

Media

Chip conveyor: Yes
Internal cooling: Yes

Additional Information

Machine history

Material type: Steel, aluminium, alloys

Machine Benefits

Technical Machine Benefits:
- - Pallet rotation - b axis 0-360 degrees
- - No. Of pallets 2
- - Pallet change time: 10s
Qualitative Machine Benefits:
- - Very good condition, low hours

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
